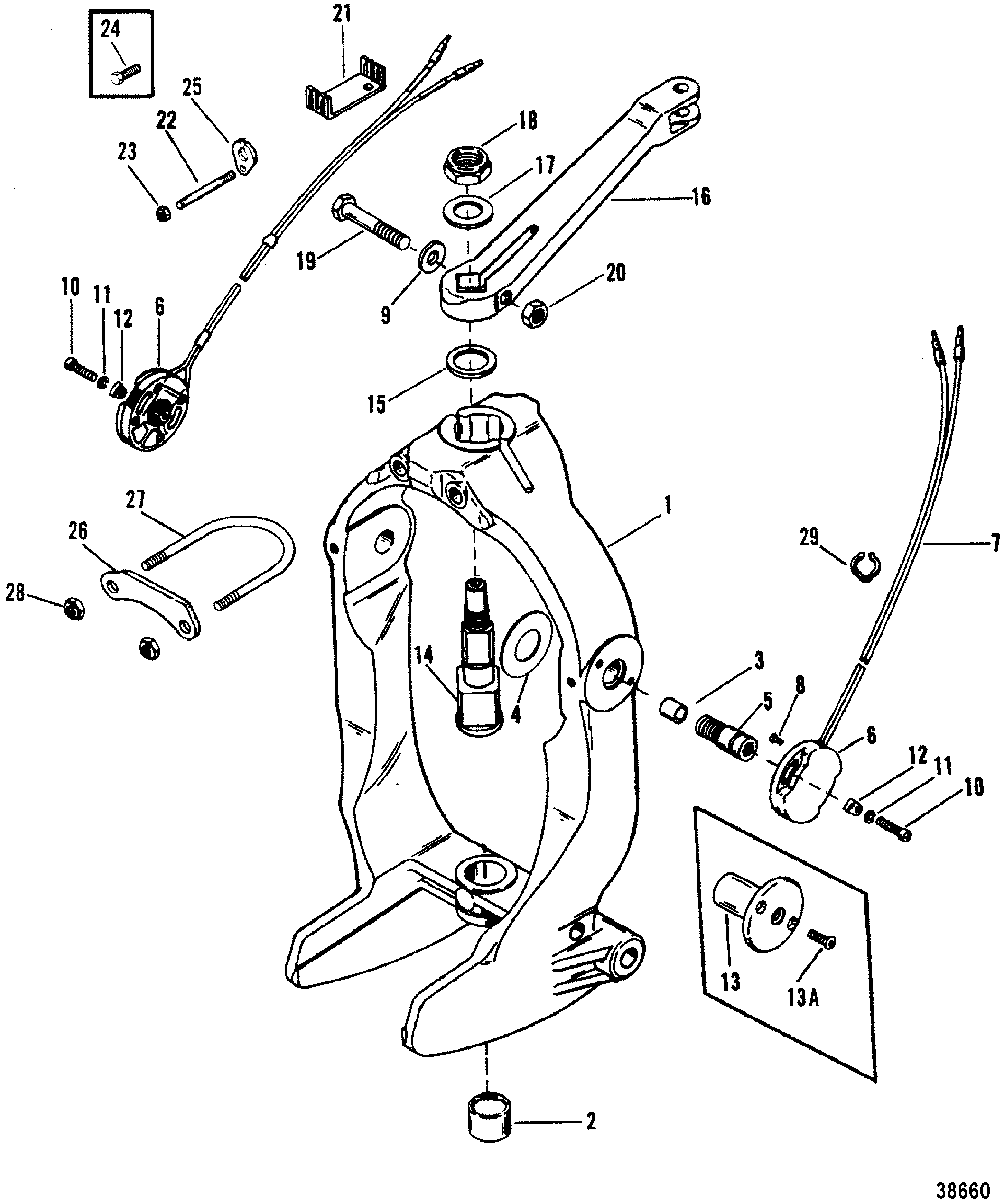

GIMBAL RING AND STEERING LEVER для Mercruiser - BRAVO ONE 0B664190 THRU 0F729999

  • №
    Артикул
    Название
  • 1
    8M0062440 GLMBAL RING ASSEMBLY, For Use With Trim Senders
    GLMBAL RING ASSEMBLY, For Use With Trim Senders
  • 2
    23-99352 BEARING, For Use With Trim Senders
    BEARING, For Use With Trim Senders
  • 3
    23-847637 BUSHING, For Use With Trim Senders
    BUSHING, For Use With Trim Senders
  • 4
    12-41721 WASHER, For Use With Trim Senders
    WASHER, For Use With Trim Senders
  • 5
    10-86801 SCREW, Hinge Pin, For Use With Trim Senders
    SCREW, Hinge Pin, For Use With Trim Senders
  • 6
    64947 SENDER, For Use With Trim Senders
    (OLD DESIGN)
    SENDER, For Use With Trim Senders
    (OLD DESIGN)
  • 7
    84-19216 HARNESS ASSEMBLY, For Use With Trim Senders
    (OLD DESIGN)
    HARNESS ASSEMBLY, For Use With Trim Senders
    (OLD DESIGN)
  • 8
    10-46942 SCREW, (#6-20 x .3125), For Use With Trim Senders
    (OLD DESIGN)
    SCREW, (#6-20 x .3125), For Use With Trim Senders
    (OLD DESIGN)
  • 6
    805320A03 SWITCH ASSEMBLY, For Use With Trim Senders
    SWITCH ASSEMBLY, For Use With Trim Senders
  • 9
    12-861854 WASHER, For Use With Trim Senders
    WASHER, For Use With Trim Senders
  • 10
    10-37978 SCREW, (#10-32 x .750) Stainless Steel, For Use With Trim Senders
    SCREW, (#10-32 x .750) Stainless Steel, For Use With Trim Senders
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel, For Use With Trim Senders
    LOCKWASHER, (#10) Stainless Steel, For Use With Trim Senders
  • 12
    57008 RETAINER, For Use With Trim Senders
    RETAINER, For Use With Trim Senders
  • 1
    822374A17 GIMBAL RING ASSEMBLY, For Use Without Trim Senders
    GIMBAL RING ASSEMBLY, For Use Without Trim Senders
  • 2
    23-847638 BUSHING, For Use Without Trim Senders
    BUSHING, For Use Without Trim Senders
  • 4
    12-41721 WASHER, For Use Without Trim Senders
    WASHER, For Use Without Trim Senders
  • 13
    821997 PIN, Hinge, For Use Without Trim Senders
    PIN, Hinge, For Use Without Trim Senders
  • 13A
    10-821579 SCREW, (#10-24 x .500), For Use Without Trim Senders
    SCREW, (#10-24 x .500), For Use Without Trim Senders
  • 14
    98230A1 SHAFT ASSEMBLY
    SHAFT ASSEMBLY
  • 15
    12-98548 WASHER, (1.125 )
    WASHER, (1.125 )
  • 16
    866322A01 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 17
    12-85344 WASHER, (.750 Inside Diameter)
    WASHER, (.750 Inside Diameter)
  • 18
    11-8M2014641 NUT, (.750-16)
    NUT, (.750-16)
  • 19
    10-807204 SCREW, (.437-20 x 2.00)
    SCREW, (.437-20 x 2.00)
  • 20
    11-8M2008293 NUT, (.437-20)
    NUT, (.437-20)
  • 21
    79146 RETAINER
    RETAINER
  • 22
    16-8M0034450 STUD, (.250-20/.250-28 x 1.01)
    STUD, (.250-20/.250-28 x 1.01)
  • 23
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 24
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    (NEW DESIGN)
    SCREW, (.250-20 x .620) Stainless Steel
    (NEW DESIGN)
  • 25
    54-12078 CLAMP
    CLAMP
  • 26
    816510T BRACKET
    BRACKET
  • 27
    10-805164 U BOLT
    U BOLT
  • 28
    11-862903 NUT, (.375-24)
    NUT, (.375-24)
  • 29
    54-818557 CLAMP
    CLAMP
