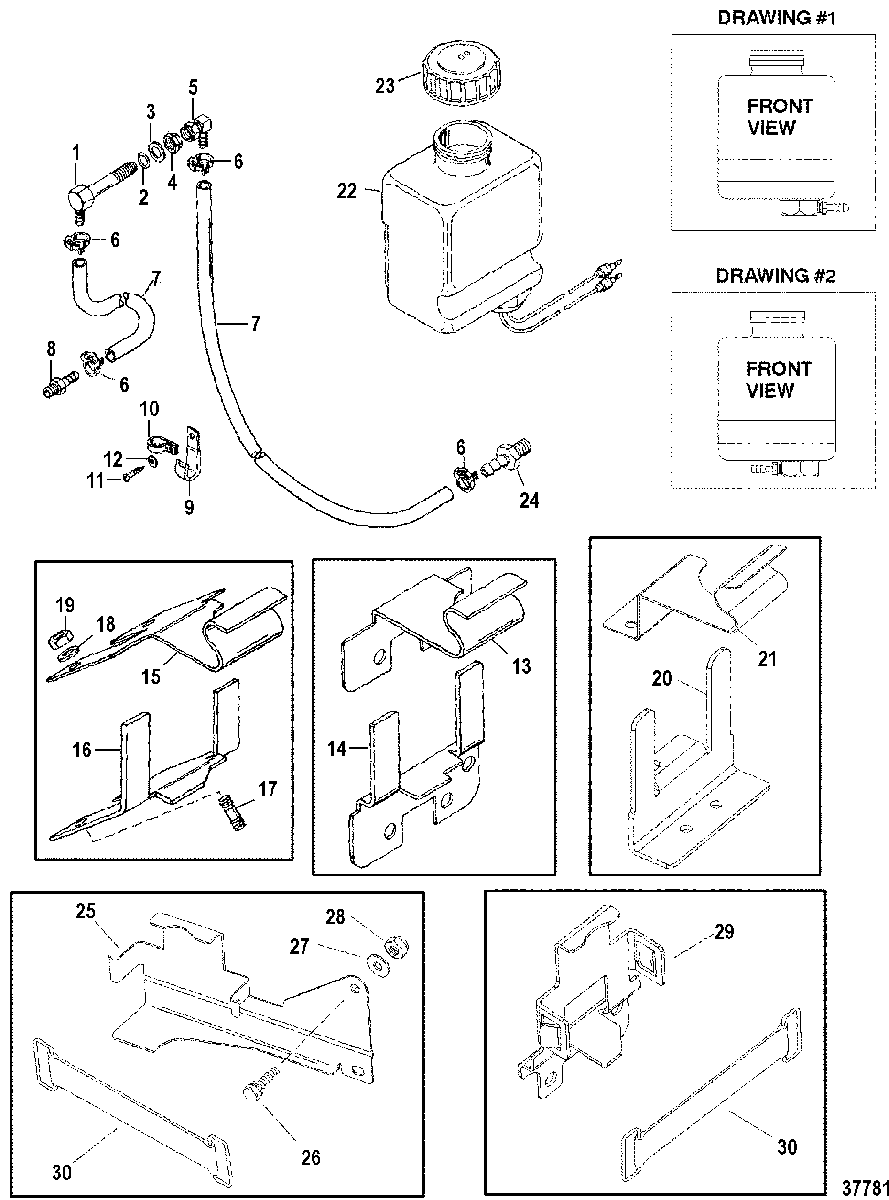

OIL RESERVOIR COMPONENTS для Mercruiser - ALPHA ONE (GEN.II) 1996-1997 0F680000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    22-18922 CONNECTOR
    CONNECTOR
  • 2
    25-201951 O-RING
    O-RING
  • 3
    12-861854 WASHER
    WASHER
  • 4
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • 5
    22-18923 FITTING
    FITTING
  • 6
    54-415825 CLAMP, Nylon
    CLAMP, Nylon
  • 7
    32-8M0040618 HOSE, (54.00 Inches Bulk)
    HOSE, (54.00 Inches Bulk)
  • 8
    22-16739 CONNECTOR
    CONNECTOR
  • 9
    54-642351 J CLIP
    J CLIP
  • 10
    54-23567 CLIP
    CLIP
  • 11
    10-60605 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 12
    8M0084613 C WASHER
    C WASHER
  • 13
    860065A1 BRACKET, Clip
    3.0LX
    BRACKET, Clip
    3.0LX
  • 14
    860065A1 BRACKET
    3.0LX
    BRACKET
    3.0LX
  • 15
    806292T1 BRACKET
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
    BRACKET
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
  • 16
    807025T BRACKET
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
    BRACKET
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
  • 17
    16-8M2004610 STUD, (.375-16 x 2.130)
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
    STUD, (.375-16 x 2.130)
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
  • 18
    12-20553 WASHER, (.406 x .734 x .063)
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
    WASHER, (.406 x .734 x .063)
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
  • 19
    11-32219 NUT, (.375-16)
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
    NUT, (.375-16)
    4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
  • 20
    806649T BRACKET
    5.7L (TBI)/5.7LX (TBI)
    BRACKET
    5.7L (TBI)/5.7LX (TBI)
  • 21
    806650T BRACKET
    350 MAG. (TBI)(GEN+)/262 MAG. (TBI)(GEN+)
    BRACKET
    350 MAG. (TBI)(GEN+)/262 MAG. (TBI)(GEN+)
  • 22
    8M0075708 RESERVOIR ASSEMBLY, Oil
    (FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1)
    RESERVOIR ASSEMBLY, Oil
    (FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1)
  • 22
    8M0075709 RESERVOIR
    (FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2)
    RESERVOIR
    (FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2)
  • 23
    36-8067271 CAP, Drive Lube Monitor
    CAP, Drive Lube Monitor
  • 24
    22-808624 CONNECTOR
    CONNECTOR
  • 25
    807839T1 BRACKET
    4.3LX/4.3LXH/262 MAG. EFI
    BRACKET
    4.3LX/4.3LXH/262 MAG. EFI
  • 26
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    4.3LX/4.3LXH/262 MAG. EFI
    SCREW AND LOCKWASHER, (.250-20 x .625)
    4.3LX/4.3LXH/262 MAG. EFI
  • 27
    12-69057 WASHER, (.281 x .734 x .063)
    4.3LX/4.3LXH/262 MAG. EFI
    WASHER, (.281 x .734 x .063)
    4.3LX/4.3LXH/262 MAG. EFI
  • 28
    11-8267088 NUT, (.250-20)
    4.3LX/4.3LXH/262 MAG. EFI
    NUT, (.250-20)
    4.3LX/4.3LXH/262 MAG. EFI
  • 29
    860065A1 BRACKET KIT, Oil Bottle
    3.0LX/5.7L/LX & 350 MAGNUM (CARB & EFI)
    BRACKET KIT, Oil Bottle
    3.0LX/5.7L/LX & 350 MAGNUM (CARB & EFI)
  • 30
    808023T STRAP, Bracket
    STRAP, Bracket
