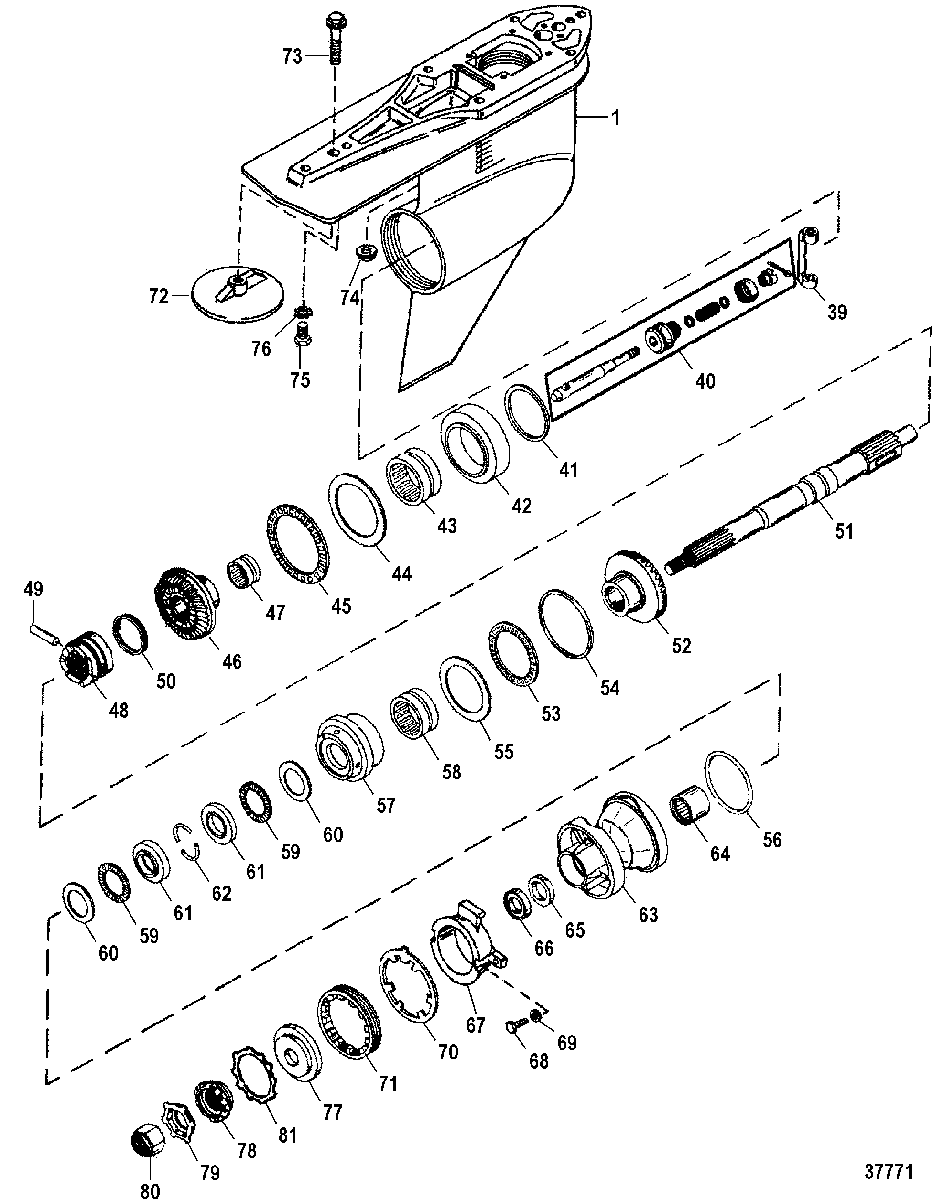

GEAR HOUSING(PROP SHAFT)(COUNTER ROTATION) для Mercruiser - ALPHA ONE (GEN.II) 1996-1997 0F680000 THRU 0K999999

  • №
    Артикул
    Название
  • -
    1623-815822A47 GEAR HOUSING ASSEMBLY
    (COMPLETE)
    GEAR HOUSING ASSEMBLY
    (COMPLETE)
  • 1
    1623-815822A36 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 39
    8M2009865 CRANK, Shift
    CRANK, Shift
  • 40
    818349T1 SPOOL KIT
    SPOOL KIT
  • 41
    15-8M0063266 SHIM SET
    SHIM SET
  • 42
    828830A2 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 43
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 44
    12-815481 THRUST WASHER
    THRUST WASHER
  • 45
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 46
    43-828290T2 GEAR
    GEAR
  • 47
    31-15844 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 48
    52-853594T SLIDING CLUTCH
    SLIDING CLUTCH
  • 49
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 50
    24-30893 SPRING
    SPRING
  • 51
    44-8M0140448 PROPELLER SHAFT
    PROPELLER SHAFT
  • 52
    NSS NOT SOLD SEPARATE, GEAR, FORWARD (SEE GEAR HOUSING (DRIVESHAFT)(COUNTER ROTATION) - REF. #15)
    NOT SOLD SEPARATE, GEAR, FORWARD (SEE GEAR HOUSING (DRIVESHAFT)(COUNTER ROTATION) - REF. #15)
  • 53
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 54
    23-1761514 SPACER SHIM , (.206)
    SPACER SHIM , (.206)
  • 54
    23-1761515 SPACER SHIM , (.208)
    SPACER SHIM , (.208)
  • 54
    23-1761516 SPACER SHIM, (.210)
    SPACER SHIM, (.210)
  • 54
    23-1761517 SPACER SHIM, (.212)
    SPACER SHIM, (.212)
  • 54
    23-1761518 SPACER SHIM, (.214)
    SPACER SHIM, (.214)
  • 54
    23-1761519 SPACER SHIM, (.216)
    SPACER SHIM, (.216)
  • 54
    23-1761520 SPACER SHIM, (.218)
    SPACER SHIM, (.218)
  • 54
    23-1761521 SPACER SHIM, (.220)
    SPACER SHIM, (.220)
  • 54
    23-1761522 SPACER SHIM, (.222)
    SPACER SHIM, (.222)
  • 54
    23-1761523 SPACER SHIM, (.224)
    SPACER SHIM, (.224)
  • 54
    23-1761524 SPACER SHIM, (.226)
    SPACER SHIM, (.226)
  • 54
    23-1761525 SPACER SHIM, (.228)
    SPACER SHIM, (.228)
  • 54
    23-1761526 SPACER SHIM, (.230)
    SPACER SHIM, (.230)
  • 55
    12-815481 THRUST WASHER
    THRUST WASHER
  • 56
    25-31534 O-RING
    O-RING
  • 57
    828831A3 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 58
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 59
    31-15842 BEARING, Thrust
    BEARING, Thrust
  • 60
    12-18448 THRUST WASHER
    THRUST WASHER
  • 61
    8182911 RACE, Thrust
    RACE, Thrust
  • 62
    814605 KEEPER
    KEEPER
  • 63
    818290A6 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 64
    31-30956T BEARING, Needle
    BEARING, Needle
  • 65
    26-14077 SEAL, Oil
    (INSIDE)
    SEAL, Oil
    (INSIDE)
  • 66
    26-12224 SEAL, Oil
    (OUTSIDE)
    SEAL, Oil
    (OUTSIDE)
  • 67
    97-806105Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 68
    10-806290 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 69
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 70
    14-18323 TAB WASHER
    TAB WASHER
  • 71
    8M2000347 RETAINER
    RETAINER
  • 72
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 72
    97-31640Q4 TRIM TAB
    (1.94:1 RATIO ONLY)
    TRIM TAB
    (1.94:1 RATIO ONLY)
  • 73
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 74
    11-859135 NUT, (.437-20)
    NUT, (.437-20)
  • 75
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 76
    13-35479 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 77
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 78
    12-31211Q03 WASHER, Splined
    WASHER, Splined
  • 79
    14-816629Q TAB WASHER
    TAB WASHER
  • 80
    11-52707Q1 PROP NUT
    PROP NUT
  • 81
    13-423511 LOCKWASHER, Toothed
    LOCKWASHER, Toothed
  • -
    26-816575A3 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
