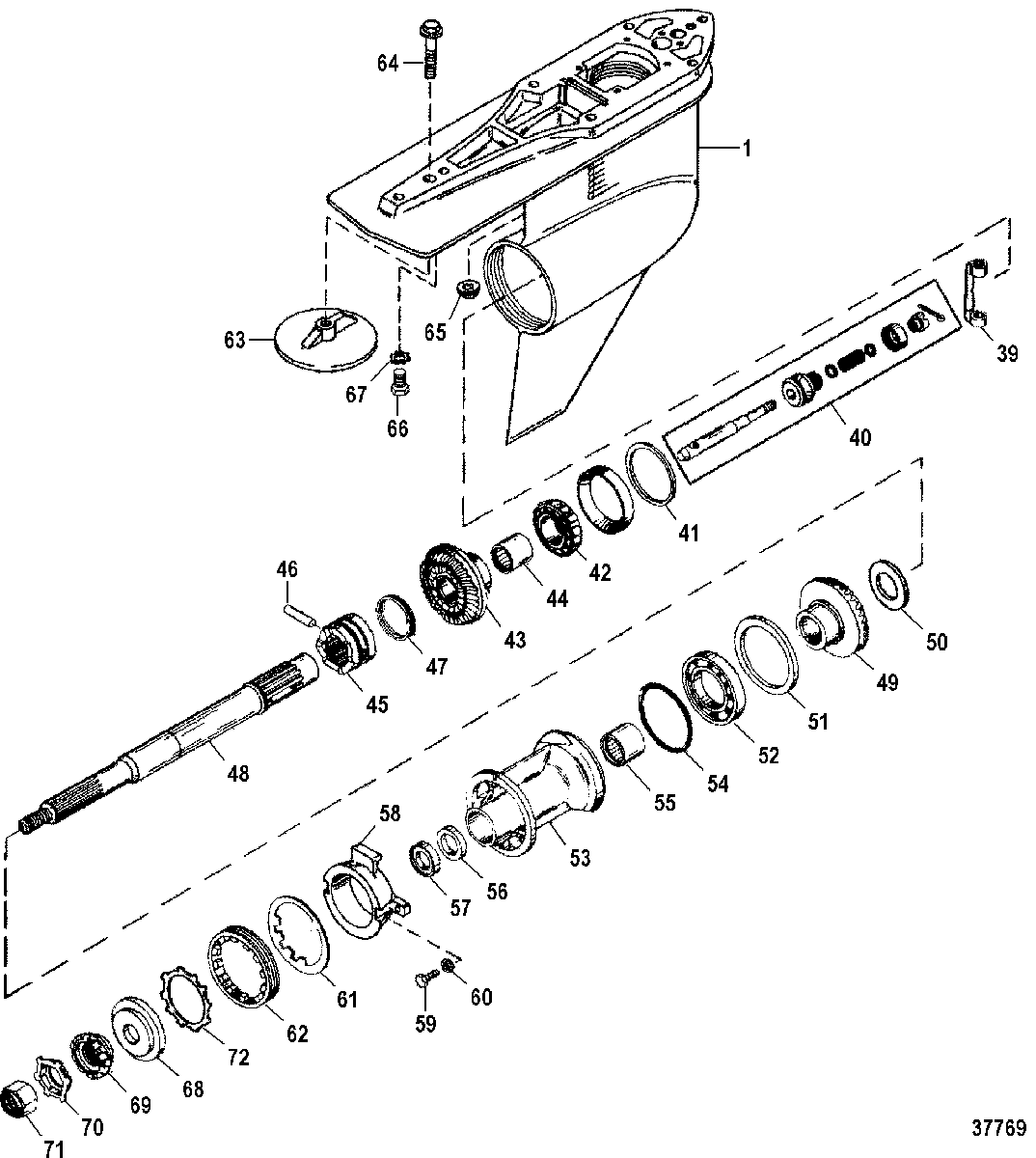

GEAR HOUSING(PROP SHAFT)(STANDARD ROTATION) для Mercruiser - ALPHA ONE (GEN.II) 1996-1997 0F680000 THRU 0K999999

  • №
    Артикул
    Название
  • -
    1623-815822A53 GEAR HOUSING ASSEMBLY
    (COMPLETE)
    GEAR HOUSING ASSEMBLY
    (COMPLETE)
  • 1
    1623-815822A36 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 39
    8M2009865 CRANK, Shift
    CRANK, Shift
  • 40
    818349T1 SPOOL KIT
    SPOOL KIT
  • 41
    15-8M0063266 SHIM SET
    SHIM SET
  • 42
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 42
    31-828439A2 BEARING ASSEMBLY, Tapered Roller
    (2.40:1 RATIO ONLY)
    BEARING ASSEMBLY, Tapered Roller
    (2.40:1 RATIO ONLY)
  • 43
    NSS NOT SOLD SEPARATE, GEAR, FORWARD
    (SEE "GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)" SECTION - REF. #15)
    NOT SOLD SEPARATE, GEAR, FORWARD
    (SEE "GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)" SECTION - REF. #15)
  • 44
    31-30895T BEARING, Needle
    BEARING, Needle
  • 45
    52-853594T SLIDING CLUTCH
    SLIDING CLUTCH
  • 46
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 47
    24-30893 SPRING
    SPRING
  • 48
    44-8M0140440 PROPELLER SHAFT
    PROPELLER SHAFT
  • 49
    43-828073A1 GEAR, REVERSE
    GEAR, REVERSE
  • 49
    NSS NOT SOLD SEPARATE, GEAR, REVERSE
    (SEE "GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)" SECTION - REF. #15)(2.40:1 RATIO ONLY)
    NOT SOLD SEPARATE, GEAR, REVERSE
    (SEE "GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)" SECTION - REF. #15)(2.40:1 RATIO ONLY)
  • 50
    23-824108 SPACER
    SPACER
  • 51
    681001 RING, Thrust
    RING, Thrust
  • 52
    30-88957T BEARING ASSEMBLY, Ball
    BEARING ASSEMBLY, Ball
  • 53
    818763A10 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 54
    25-31534 O-RING
    O-RING
  • 55
    31-30956T BEARING, Needle
    BEARING, Needle
  • 56
    26-14077 SEAL, Oil
    (INSIDE)
    SEAL, Oil
    (INSIDE)
  • 57
    26-12224 SEAL, Oil
    (OUTSIDE)
    SEAL, Oil
    (OUTSIDE)
  • 58
    97-806105Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 59
    10-806290 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 60
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 61
    14-18323 TAB WASHER
    TAB WASHER
  • 62
    8M2000347 RETAINER
    RETAINER
  • 63
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 63
    97-31640Q4 TRIM TAB
    (2.40:1 AND 1.94:1 RATIO ONLY)
    TRIM TAB
    (2.40:1 AND 1.94:1 RATIO ONLY)
  • 64
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 65
    11-859135 NUT, (.437-20)
    NUT, (.437-20)
  • 66
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 67
    13-35479 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 68
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 69
    12-31211Q03 WASHER, Splined
    WASHER, Splined
  • 70
    14-816629Q TAB WASHER
    TAB WASHER
  • 71
    11-52707Q1 PROP NUT
    PROP NUT
  • 72
    13-423511 LOCKWASHER, Toothed
    LOCKWASHER, Toothed
  • -
    26-816575A3 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
