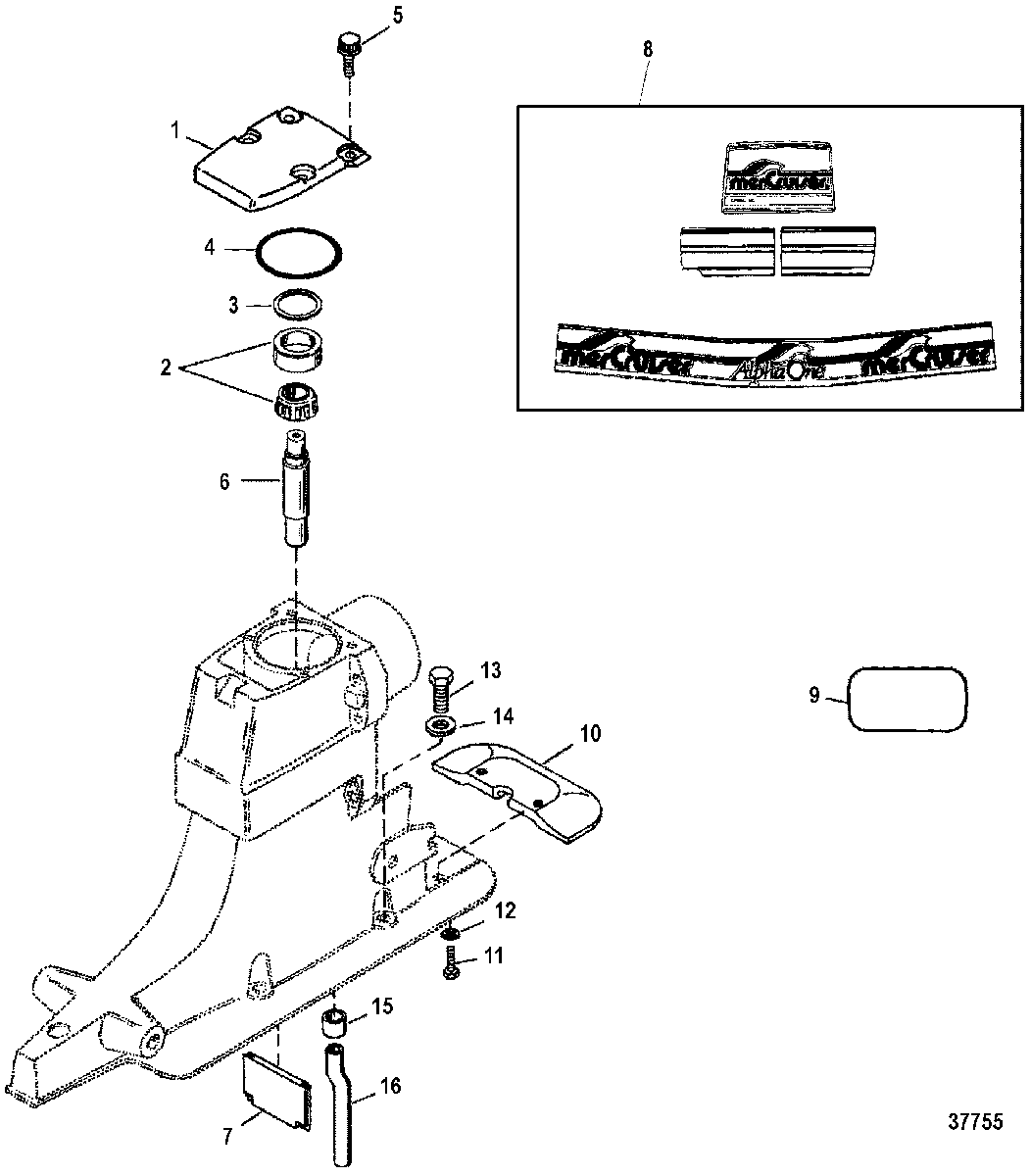

DRIVESHAFT HOUSING AND DRIVESHAFT для Mercruiser - ALPHA ONE (GEN.II) 1996-1997 0F680000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    828692A1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 2
    31-32575T1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 3
    15-32563A1 SHIM SET
    SHIM SET
  • 4
    25-32546 O-RING
    O-RING
  • 5
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 6
    45-557961 DRIVESHAFT, Upper
    DRIVESHAFT, Upper
  • 7
    815932 FILLER WALL
    FILLER WALL
  • 8
    37-817387A91 DECAL SET
    DECAL SET
  • 9
    37-13722A11 DECAL SET, Engine Model
    (3.0LX)
    DECAL SET, Engine Model
    (3.0LX)
  • 9
    37-13722A13 DECAL SET, Engine Model
    (4.3L/4.3LX/5.7L)
    DECAL SET, Engine Model
    (4.3L/4.3LX/5.7L)
  • 9
    37-13722A14 DECAL SET
    (4.3LX/4.3LXH/262 MAG)(GEN +)
    DECAL SET
    (4.3LX/4.3LXH/262 MAG)(GEN +)
  • 9
    37-13722A15 DECAL SET
    (5.7L/LX CARB & EFI)
    DECAL SET
    (5.7L/LX CARB & EFI)
  • 9
    37-13722A16 DECAL SET
    (350 MAGNUM)
    DECAL SET
    (350 MAGNUM)
  • 10
    97-821629Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 11
    10-28668 SCREW, (.250-20 x .875) Stainless Steel
    SCREW, (.250-20 x .875) Stainless Steel
  • 12
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 13
    10-816601 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 14
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 15
    26-88397 SEAL
    SEAL
  • 16
    32-860220 TUBE, Water
    TUBE, Water
  • -
    26-88397A1 SEAL KIT, Driveshaft Housing
    SEAL KIT, Driveshaft Housing
