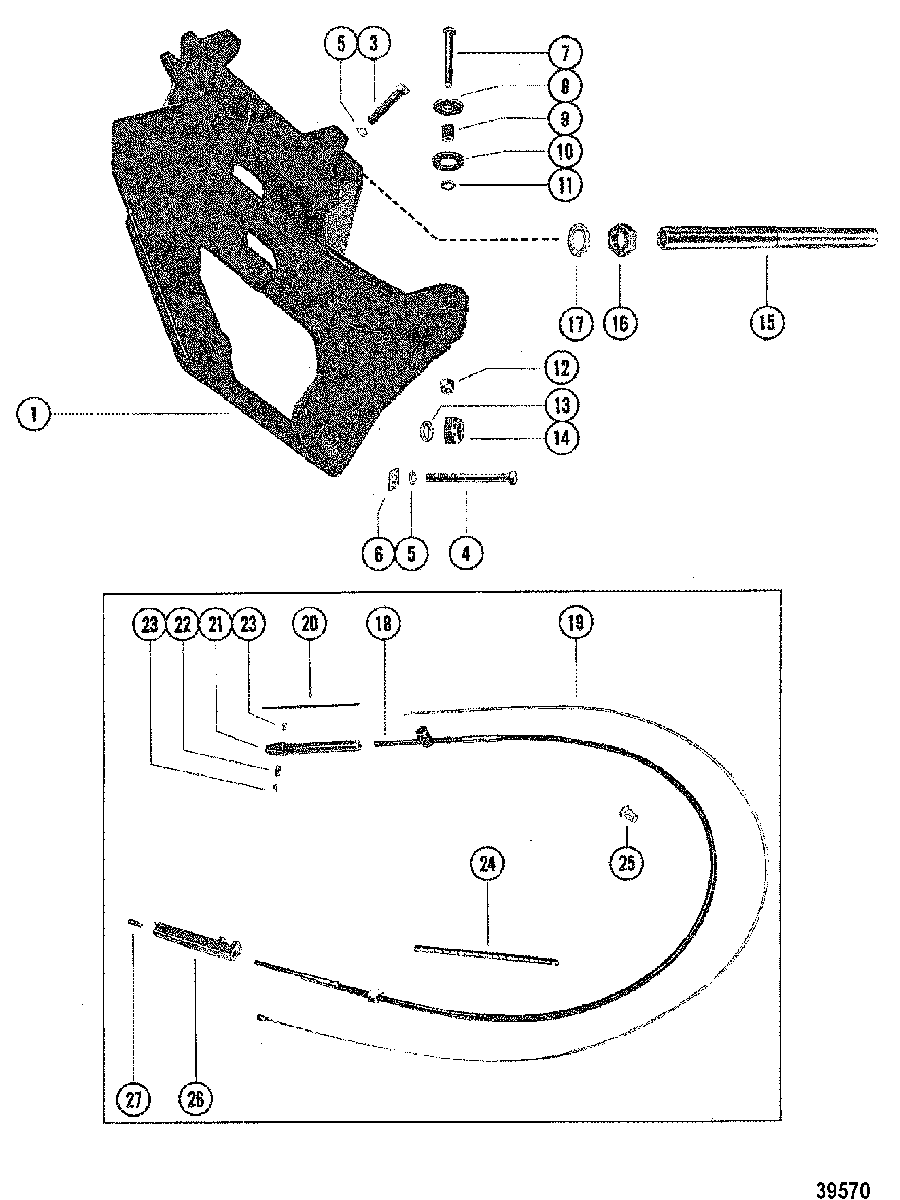

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - 470 1978-1982 4893835 THRU 6225576

  • №
    Артикул
    Название
  • 1
    65550A2 PLATE ASSEMBLY, TRANSOM
    (IN-LINE ENGINES)
    PLATE ASSEMBLY, TRANSOM
    (IN-LINE ENGINES)
  • 1
    65545A12 PLATE, TRANSOM
    (V-8 ENGINES)
    PLATE, TRANSOM
    (V-8 ENGINES)
  • 3
    10-37269 SCREW, (.437-14 x 2.00), TRANSOM PLATE TO GIMBAL HOUSING
    SCREW, (.437-14 x 2.00), TRANSOM PLATE TO GIMBAL HOUSING
  • 4
    10-37268 SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING
    SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING
  • 5
    13-32993 LOCKWASHER, TRANSOM PLATE SCREW
    LOCKWASHER, TRANSOM PLATE SCREW
  • 6
    12-37271 WASHER, SQUARE - TRANSOM PLATE SCREW
    WASHER, SQUARE - TRANSOM PLATE SCREW
  • 7
    10-97934 SCREW, TRANSOM PLATE TO FLYWHEEL HOUSING (4 3/4")
    SCREW, TRANSOM PLATE TO FLYWHEEL HOUSING (4 3/4")
  • 8
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM PLATE SCREW
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM PLATE SCREW
  • 9
    23-99299 SPACER, TRANSOM PLATE SCREW
    SPACER, TRANSOM PLATE SCREW
  • 10
    12-32834 WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW
    WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW
  • 11
    13-33734 LOCKWASHER, TRANSOM PLATE SCREW
    LOCKWASHER, TRANSOM PLATE SCREW
  • 12
    11-82671317 NUT, (.500-20), TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
    NUT, (.500-20), TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
  • 13
    12-21900 WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
  • 14
    11-34087 NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
  • 15
    71565A2 TUBE, STEERING
    (IN-LINE-ENGINES)
    TUBE, STEERING
    (IN-LINE-ENGINES)
  • 15
    75158T TUBE, STEERING
    V-8 ENGINES-NON-POWER STRG.
    TUBE, STEERING
    V-8 ENGINES-NON-POWER STRG.
  • 16
    11-8M0041651 NUT, (.875-14), JAM - STEERING CABLE GUIDE TUBE
    NUT, (.875-14), JAM - STEERING CABLE GUIDE TUBE
  • 17
    12-37985 WASHER, STEERING CABLE GUIDE TUBE
    WASHER, STEERING CABLE GUIDE TUBE
  • 18
    865436A02 CABLE ASSEMBLY, SHIFT ACTUATING
    CABLE ASSEMBLY, SHIFT ACTUATING
  • 19
    865436A02 CORE WIRE, INNER SHIFT CABLE
    CORE WIRE, INNER SHIFT CABLE
  • 20
    32-38377 TUBE, SHIFT ACTUATING CABLE
    TUBE, SHIFT ACTUATING CABLE
  • 21
    43433 GUIDE, SHIFT ACTUATING CABLE END
    GUIDE, SHIFT ACTUATING CABLE END
  • 22
    20007 ANCHOR, SHIFT ACTUATING CABLE END GUIDE
    ANCHOR, SHIFT ACTUATING CABLE END GUIDE
  • 23
    10-20518 SET SCREW, (#8-32), SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE
    SET SCREW, (#8-32), SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE
  • 24
    38473 WRAPPING, Spiral, SHIFT ACTUATING CABLE
    WRAPPING, Spiral, SHIFT ACTUATING CABLE
  • 25
    14705 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
    TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
  • 26
    865436A02 SLIDE, SHIFT ACTUATING CABLE
    SLIDE, SHIFT ACTUATING CABLE
  • 27
    10-31700 SCREW, (.250-28 x .750), SET - SHIFT ACTUATING CABLE TO SLIDE
    SCREW, (.250-28 x .750), SET - SHIFT ACTUATING CABLE TO SLIDE
