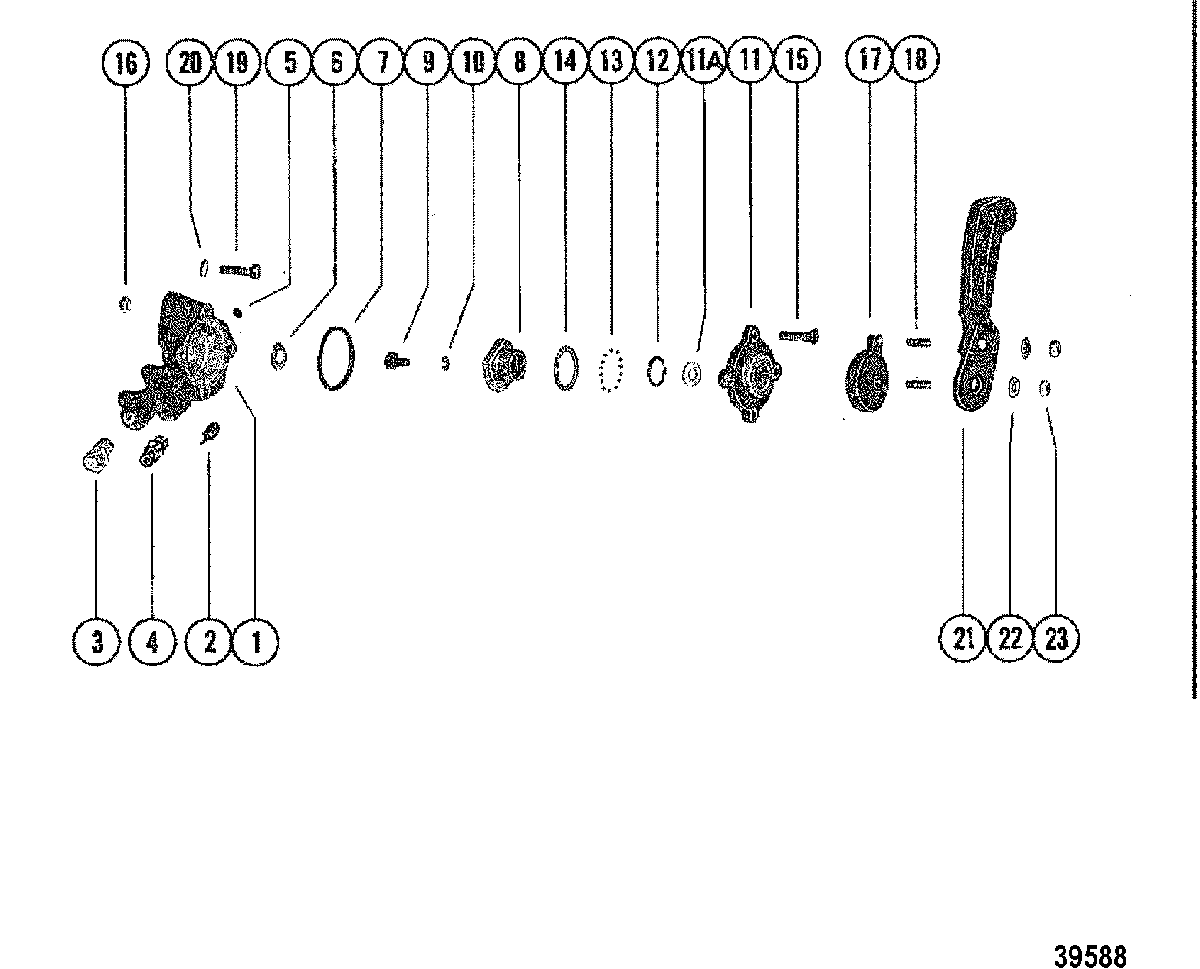

REVERSE LOCK VALVE ASSEMBLY(IN-LINE ENGINES) для Mercruiser - 470 1978-1982 4893835 THRU 6225576

  • №
    Артикул
    Название
  • 1
    76812T4 VALVE ASSEMBLY, Reverse Lock
    VALVE ASSEMBLY, Reverse Lock
  • 2
    45709 FOLLOWER, CAM
    FOLLOWER, CAM
  • 3
    22-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
    ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
  • 4
    22-48167 CONNECTOR
    CONNECTOR
  • 5
    22-390721 PLUG, PIPE-REVERSE LOCK VALVE
    PLUG, PIPE-REVERSE LOCK VALVE
  • 6
    13-25906 WASHER, WAVE-REVERSE LOCK VALVE
    WASHER, WAVE-REVERSE LOCK VALVE
  • 7
    25-457101 O-RING, (1.424 x .103), REVERSE LOCK VALVE
    O-RING, (1.424 x .103), REVERSE LOCK VALVE
  • 8
    45526 CAM, REVERSE LOCK VALVE
    CAM, REVERSE LOCK VALVE
  • 9
    10-46736 SCREW, (0.5 In.), CAM TO CAM LEVER (1/2")
    SCREW, (0.5 In.), CAM TO CAM LEVER (1/2")
  • 10
    13-26996 LOCKWASHER, (#10) Stainless Steel, CAM SCREW
    LOCKWASHER, (#10) Stainless Steel, CAM SCREW
  • 11
    45528A2 COVER, REVERSE LOCK VALVE
    COVER, REVERSE LOCK VALVE
  • 11A
    12-59570 WASHER, REVERSE LOCK VALVE COVER
    WASHER, REVERSE LOCK VALVE COVER
  • 12
    25-45711 O-RING, (.612 x .103), VALVE COVER
    O-RING, (.612 x .103), VALVE COVER
  • 13
    30-45712 BALL, VALVE COVER
    BALL, VALVE COVER
  • 14
    12-45713 WASHER, REATINING-BALL TO VALVE COVER
    WASHER, REATINING-BALL TO VALVE COVER
  • 15
    10-45716 SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE
    SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE
  • 16
    11-20110 NUT, (#10-32), COVER SCREW
    NUT, (#10-32), COVER SCREW
  • 17
    46732A1 LEVER ASSEMBLY, CAM
    LEVER ASSEMBLY, CAM
  • 18
    16-45715 STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM (23/32")
    STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM (23/32")
  • 19
    10-25299 SCREW, (.312-18 x .75), REVERSE LOCK VALVE
    SCREW, (.312-18 x .75), REVERSE LOCK VALVE
  • 20
    13-21804 LOCKWASHER, REVERSE LOCK VALVE SCREW
    LOCKWASHER, REVERSE LOCK VALVE SCREW
  • 21
    66397A1 LEVER ASSEMBLY, SHIFT CONTROL-CAM LEVER
    LEVER ASSEMBLY, SHIFT CONTROL-CAM LEVER
  • 22
    12-21273 WASHER, CAM LEVER STUD
    WASHER, CAM LEVER STUD
  • 23
    11-20110 NUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUD
    NUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUD
