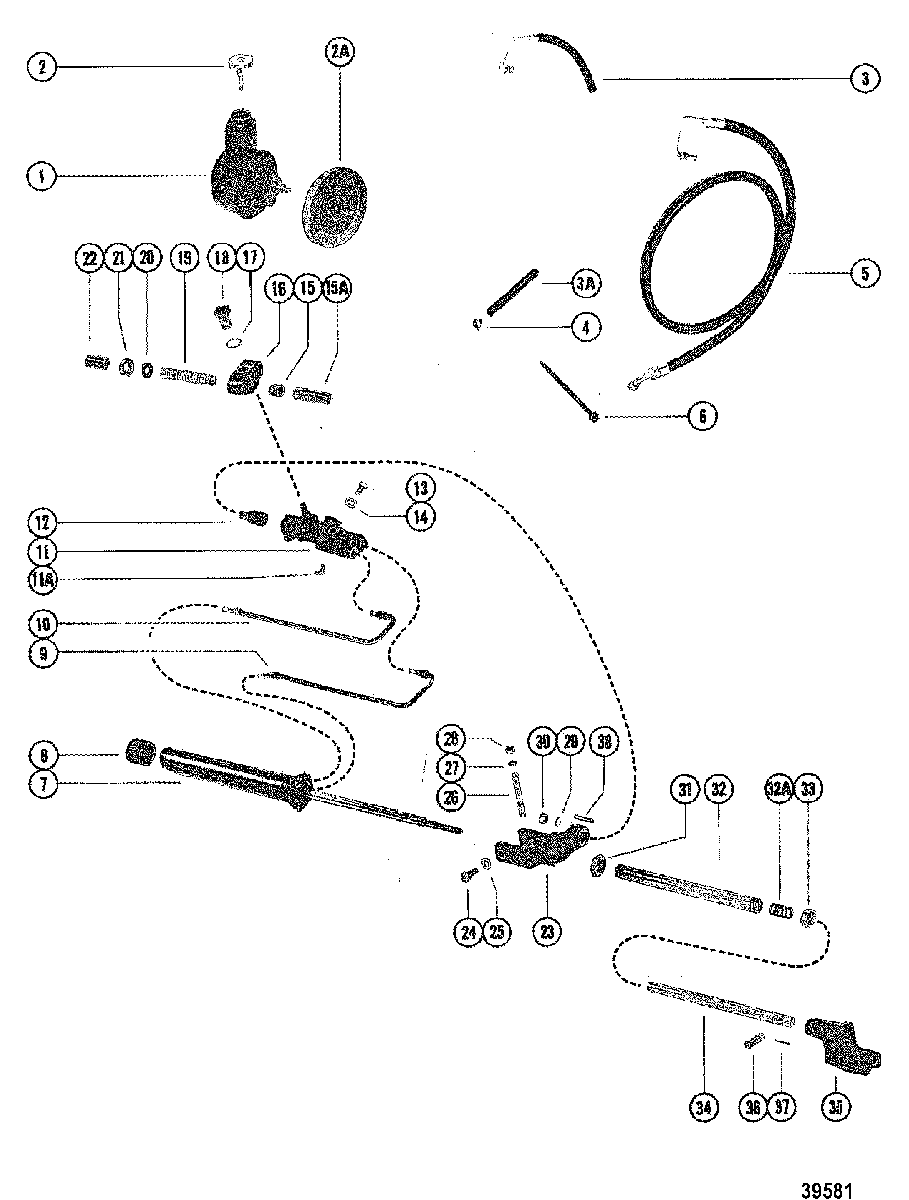

POWER STEERING COMPONENTS(V-ENGINES) для Mercruiser - 470 1978-1982 4893835 THRU 6225576
-
№АртикулНазвание
-
190507A5 PUMP ASSEMBLY, Power-Assisted Steering
(NON METRIC)PUMP ASSEMBLY, Power-Assisted Steering
(NON METRIC) -
190507A12 PUMP ASSEMBLY, Power-Assisted Steering
(METRIC)PUMP ASSEMBLY, Power-Assisted Steering
(METRIC) -
219-39924 CAP, FILLER-HYDRAULIC PUMPCAP, FILLER-HYDRAULIC PUMP
-
2A73873A1 PULLEY, HYDRAULIC PUMPPULLEY, HYDRAULIC PUMP
-
332-9884339 HOSE, RETURN-VALVE TO OIL COOLER (32")HOSE, RETURN-VALVE TO OIL COOLER (32")
-
3A65231 HOSE, RETURN-OIL COLLER TO HYDRAULIC PUMP (40")HOSE, RETURN-OIL COLLER TO HYDRAULIC PUMP (40")
-
454-815504206 CLAMP, RETURN HOSE TO HYDRAULIC PUMPCLAMP, RETURN HOSE TO HYDRAULIC PUMP
-
532-55116 HOSE, (72 Inches), PRESSURE-POWER STEERING (60")-NON METRICHOSE, (72 Inches), PRESSURE-POWER STEERING (60")-NON METRIC
-
532-90494 HOSE, PRESSURE-POWER STEERING (60")-METRICHOSE, PRESSURE-POWER STEERING (60")-METRIC
-
661990 TIE STRAP, (14.00 Inches), HYDRAULIC HOSESTIE STRAP, (14.00 Inches), HYDRAULIC HOSES
-
757969A12 CYLINDER, BOOSTERCYLINDER, BOOSTER
-
-25-58224 O-RING KITO-RING KIT
-
826059 CAP, RUBBER-BOOSTER CYLINDERCAP, RUBBER-BOOSTER CYLINDER
-
932-57633 TUBE, EXTENDING-POWER STEERINGTUBE, EXTENDING-POWER STEERING
-
1032-57634 TUBE, RETRACTING-POWER STEERINGTUBE, RETRACTING-POWER STEERING
-
11816458A1 VALVE ASSEMBLY, POWER STEERINGVALVE ASSEMBLY, POWER STEERING
-
-25-58226A1 O-RING KITO-RING KIT
-
11A22-67305 FITTING, Grease, POWER STEERING VALVEFITTING, Grease, POWER STEERING VALVE
-
1216-55109T STUD, ADAPTOR-POWER STEERING VALVESTUD, ADAPTOR-POWER STEERING VALVE
-
1310-37612 SCREW, (.375-16 x 1.250), CLAMPINGSCREW, (.375-16 x 1.250), CLAMPING
-
1413-35048 LOCKWASHER, (3/8), CLAMPING SCREWLOCKWASHER, (3/8), CLAMPING SCREW
-
1523-60773 SLEEVE, ADJUSTING-CABLE GUIDE TUBESLEEVE, ADJUSTING-CABLE GUIDE TUBE
-
15A23-60652 SLEEVE, ADJUSTING-CABLE GUIDE TUBESLEEVE, ADJUSTING-CABLE GUIDE TUBE
-
1655110T ADAPTOR, CABLE GUIDE TUBE (DUAL)ADAPTOR, CABLE GUIDE TUBE (DUAL)
-
1713-20897 LOCKWASHER, DUAL ADAPTOR NUTLOCKWASHER, DUAL ADAPTOR NUT
-
1811-55111 NUT, DUAL ADAPTOR TO POWER STEERING VALVENUT, DUAL ADAPTOR TO POWER STEERING VALVE
-
1932-55112 TUBE, CABLE GUIDETUBE, CABLE GUIDE
-
2012-37985 WASHER, CABLE GUIDE TUBEWASHER, CABLE GUIDE TUBE
-
2111-8M0041651 NUT, (.875-14), CABLE GUIDE TUBENUT, (.875-14), CABLE GUIDE TUBE
-
2264414 GUIDE, CABLE GUIDE TUBEGUIDE, CABLE GUIDE TUBE
-
2357286 BRACKET, MOUNTING-TRANSOM PLATEBRACKET, MOUNTING-TRANSOM PLATE
-
2410-31832 BOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATEBOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATE
-
2513-31848 LOCKWASHER, (.500), MOUNTING BRACKET SCREWLOCKWASHER, (.500), MOUNTING BRACKET SCREW
-
2610-57968 SCREW, (.375-24 x 3.00), ADJUSTING-MOUNTING BRACKETSCREW, (.375-24 x 3.00), ADJUSTING-MOUNTING BRACKET
-
2713-35048 LOCKWASHER, (3/8), ADJUSTING SCREWLOCKWASHER, (3/8), ADJUSTING SCREW
-
2811-46335 NUT, ADJUSTING SCREWNUT, ADJUSTING SCREW
-
2912-20959 WASHER, VALVE ADAPTOR STUDWASHER, VALVE ADAPTOR STUD
-
3011-898832 NUT, (.500-20), VALVE ADAPTOR STUDNUT, (.500-20), VALVE ADAPTOR STUD
-
3111-32882 NUT, (.875-14), MOUNTING TUBENUT, (.875-14), MOUNTING TUBE
-
3257971 TUBE, MOUNTING-BOOSTER ROD EXTENSIONTUBE, MOUNTING-BOOSTER ROD EXTENSION
-
32A24-78498 SPRING, TORSION-MOUNTING TUBESPRING, TORSION-MOUNTING TUBE
-
3311-55983 NUT, (.875-14), JAM-MOUNTING TUBENUT, (.875-14), JAM-MOUNTING TUBE
-
3457970 ROD, Extender, CYLINDER BOOSTER RODROD, Extender, CYLINDER BOOSTER ROD
-
3586069T ADAPTOR, ROD ENDADAPTOR, ROD END
-
3617-52798 PIN, Clevis, STEERING CABLE AND CLEVIS ATTACHINGPIN, Clevis, STEERING CABLE AND CLEVIS ATTACHING
-
3718-46950 COTTER PIN, CLEVIS PIN RETAININGCOTTER PIN, CLEVIS PIN RETAINING
-
3817-239281 PIN, MOUNTING BRACKETPIN, MOUNTING BRACKET
