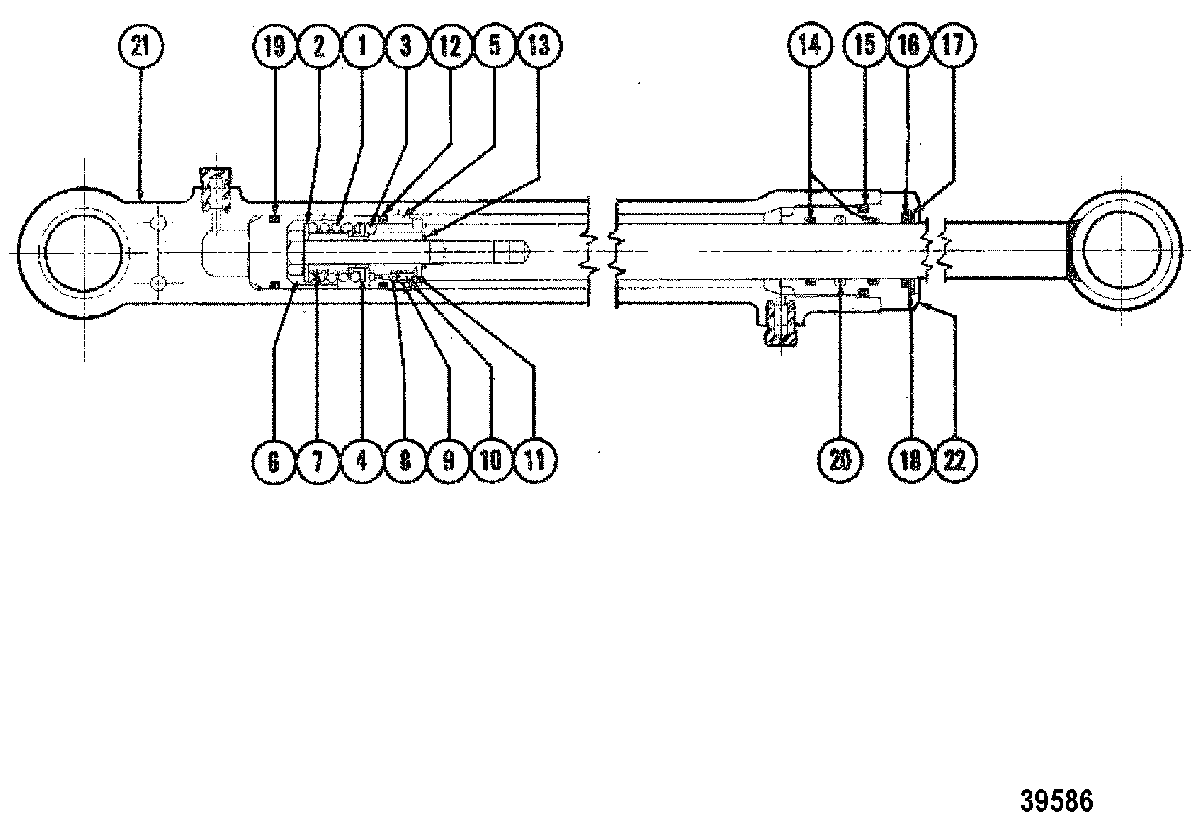

POWER TRIM CYLINDER REPAIR KITS(EXTERNAL LINE) для Mercruiser - 470 1978-1982 4893835 THRU 6225576
-
№АртикулНазвание
-
-87068A1 OVERHAUL KITOVERHAUL KIT
-
1N.S.S. Not Sold Separate, SPRING, COMPRESSIONNot Sold Separate, SPRING, COMPRESSION
-
2N.S.S. Not Sold Separate, WASHER, SPRING GUIDENot Sold Separate, WASHER, SPRING GUIDE
-
3N.S.S. Not Sold Separate, BALL, STEEL (5/32)Not Sold Separate, BALL, STEEL (5/32)
-
4N.S.S. Not Sold Separate, WASHERNot Sold Separate, WASHER
-
5N.S.S. Not Sold Separate, PISTON, SHOCKNot Sold Separate, PISTON, SHOCK
-
6N.S.S. Not Sold Separate, SCREW (5/16-18 x 2 1/2")Not Sold Separate, SCREW (5/16-18 x 2 1/2")
-
7N.S.S. Not Sold Separate, GUIDE, SPRINGNot Sold Separate, GUIDE, SPRING
-
8N.S.S. Not Sold Separate, BALL, STEEL (7/64)Not Sold Separate, BALL, STEEL (7/64)
-
9N.S.S. Not Sold Separate, SPRING, COMPRESSIONNot Sold Separate, SPRING, COMPRESSION
-
10N.S.S. Not Sold Separate, EYELET, BALL CHECKNot Sold Separate, EYELET, BALL CHECK
-
11N.S.S. Not Sold Separate, PIN, SPRINGNot Sold Separate, PIN, SPRING
-
--25-60342A3 SEAL KITSEAL KIT
-
12N.S.S. Not Sold Separate, QUAD RINGNot Sold Separate, QUAD RING
-
13N.S.S. Not Sold Separate, O RINGNot Sold Separate, O RING
-
14N.S.S. Not Sold Separate, O RINGNot Sold Separate, O RING
-
15N.S.S. Not Sold Separate, O RINGNot Sold Separate, O RING
-
16N.S.S. Not Sold Separate, SCRAPER, RODNot Sold Separate, SCRAPER, ROD
-
17N.S.S. Not Sold Separate, RING, RETAININGNot Sold Separate, RING, RETAINING
-
18N.S.S. Not Sold Separate, WASHERNot Sold Separate, WASHER
-
19N.S.S. Not Sold Separate, O RINGNot Sold Separate, O RING
-
20N.S.S. Not Sold Separate, SPRING, CONTINUITYNot Sold Separate, SPRING, CONTINUITY
-
2187173A7 TUBE, OUTERTUBE, OUTER
-
2287069 CAP, ROD ENDCAP, ROD END
