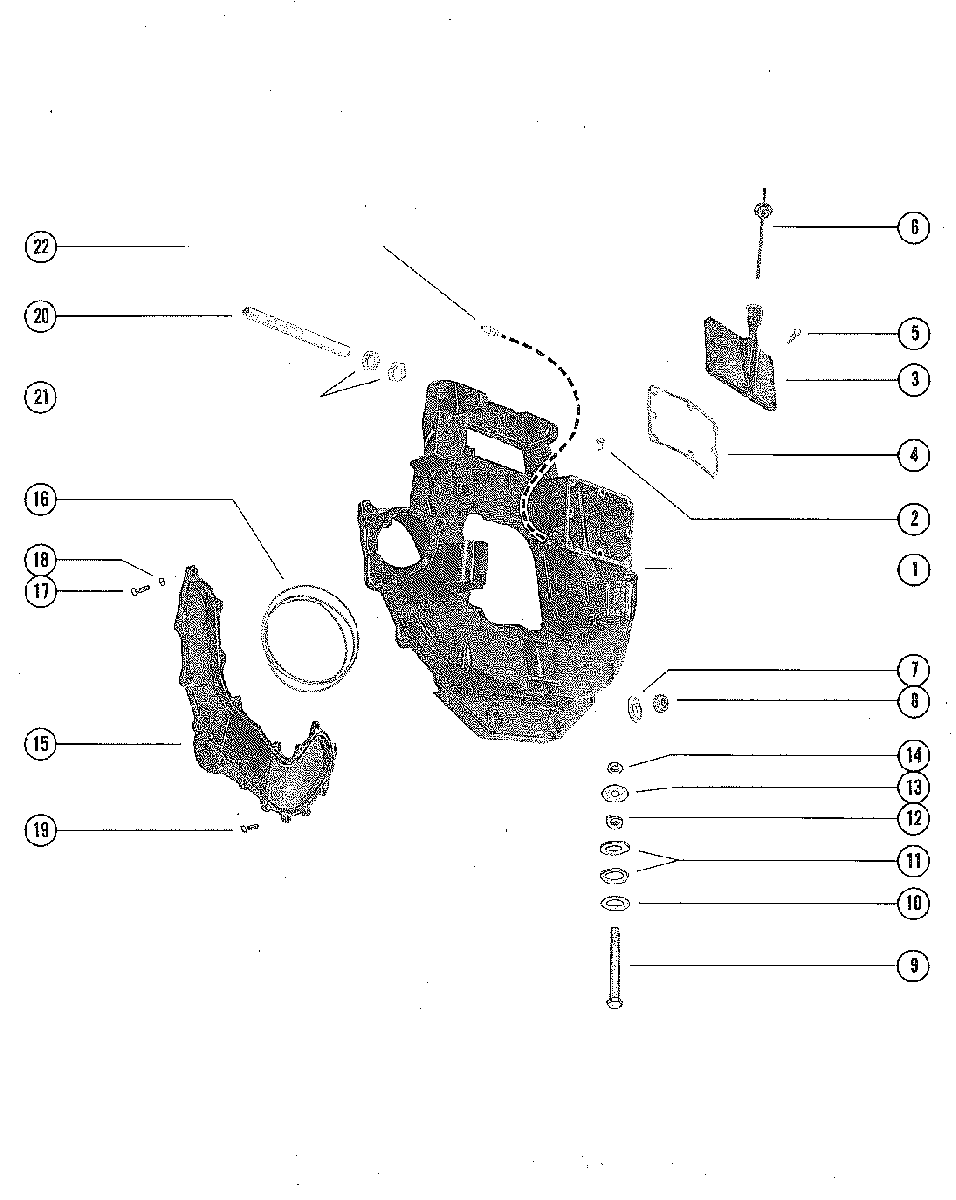

TRANSOM PLATE для Mercruiser - 215E 1970-1972 2909035 THRU 2915034

  • №
    Артикул
    Название
  • 1
    62952T PLATE, TRANSOM
    PLATE, TRANSOM
  • 2
    22-47902 VENT, OIL RESERVIOR (TRANSOM PLATE)
    VENT, OIL RESERVIOR (TRANSOM PLATE)
  • 3
    54244A3 COVER ASSEMBLY, OIL RESERVIOR-TRANSOM PLATE
    COVER ASSEMBLY, OIL RESERVIOR-TRANSOM PLATE
  • 4
    27-543071 GASKET, OIL RESERVIOR COVER
    GASKET, OIL RESERVIOR COVER
  • 5
    10-54523 SCREW, OIL RESERVIOR COVER TO TRANSOM PLATE (1")
    SCREW, OIL RESERVIOR COVER TO TRANSOM PLATE (1")
  • 6
    55083T DIPSTICK, OIL LEVEL-OIL RESERVIOR
    DIPSTICK, OIL LEVEL-OIL RESERVIOR
  • 7
    12-34876 WASHER, GIMBAL HOUSING TO TRANSOM PLATE STUD
    WASHER, GIMBAL HOUSING TO TRANSOM PLATE STUD
  • 8
    11-35000 NUT, HOUSING TO TRANSOM PLATE STUD
    NUT, HOUSING TO TRANSOM PLATE STUD
  • 9
    10-47467 SCREW, TRANSOM PLATE TO FLYWHEEL HOUSING (5 1/2")
    SCREW, TRANSOM PLATE TO FLYWHEEL HOUSING (5 1/2")
  • 10
    12-54250 WASHER, TRANSOM PLATE SCREW (1 1/8" I.D.)
    WASHER, TRANSOM PLATE SCREW (1 1/8" I.D.)
  • 11
    12-47466 WASHER, FIBER-TRANSOM PLATE SCREW
    WASHER, FIBER-TRANSOM PLATE SCREW
  • 12
    13-34846 LOCKWASHER, TRANSOM PLATE SCREW (DOUBLE WIND)
    LOCKWASHER, TRANSOM PLATE SCREW (DOUBLE WIND)
  • 13
    12-33171 WASHER, TRANSOM PLATE SCREW (41/64" I.D.)
    WASHER, TRANSOM PLATE SCREW (41/64" I.D.)
  • 14
    11-22339 NUT, TRANSOM PLATE SCREW
    NUT, TRANSOM PLATE SCREW
  • 15
    54234T COVER, EXHAUST
    COVER, EXHAUST
  • 16
    55897 SEAL, EXHAUST COVER
    SEAL, EXHAUST COVER
  • 17
    10-26065 SCREW, EXHAUST COVER TO TRANSOM PLATE (1")
    SCREW, EXHAUST COVER TO TRANSOM PLATE (1")
  • 18
    11-29250 NUT, EXHAUST COVER SCREW
    NUT, EXHAUST COVER SCREW
  • 19
    10-35386 SCREW, EXHAUST COVER TO TRANSOM PLATE-BOTTOM (1")
    SCREW, EXHAUST COVER TO TRANSOM PLATE-BOTTOM (1")
  • 20
    71565A2 TUBE, CABLE GUIDE
    TUBE, CABLE GUIDE
  • 21
    11-8M0041651 NUT, JAM-CABLE GUIDE TUBE
    NUT, JAM-CABLE GUIDE TUBE
  • 22
    22-34982 CONNECTOR, TRANSOM PLATE (OIL HOSE)
    CONNECTOR, TRANSOM PLATE (OIL HOSE)
  • --
    37-39395 DECAL, SERIAL NUMBER
    DECAL, SERIAL NUMBER
