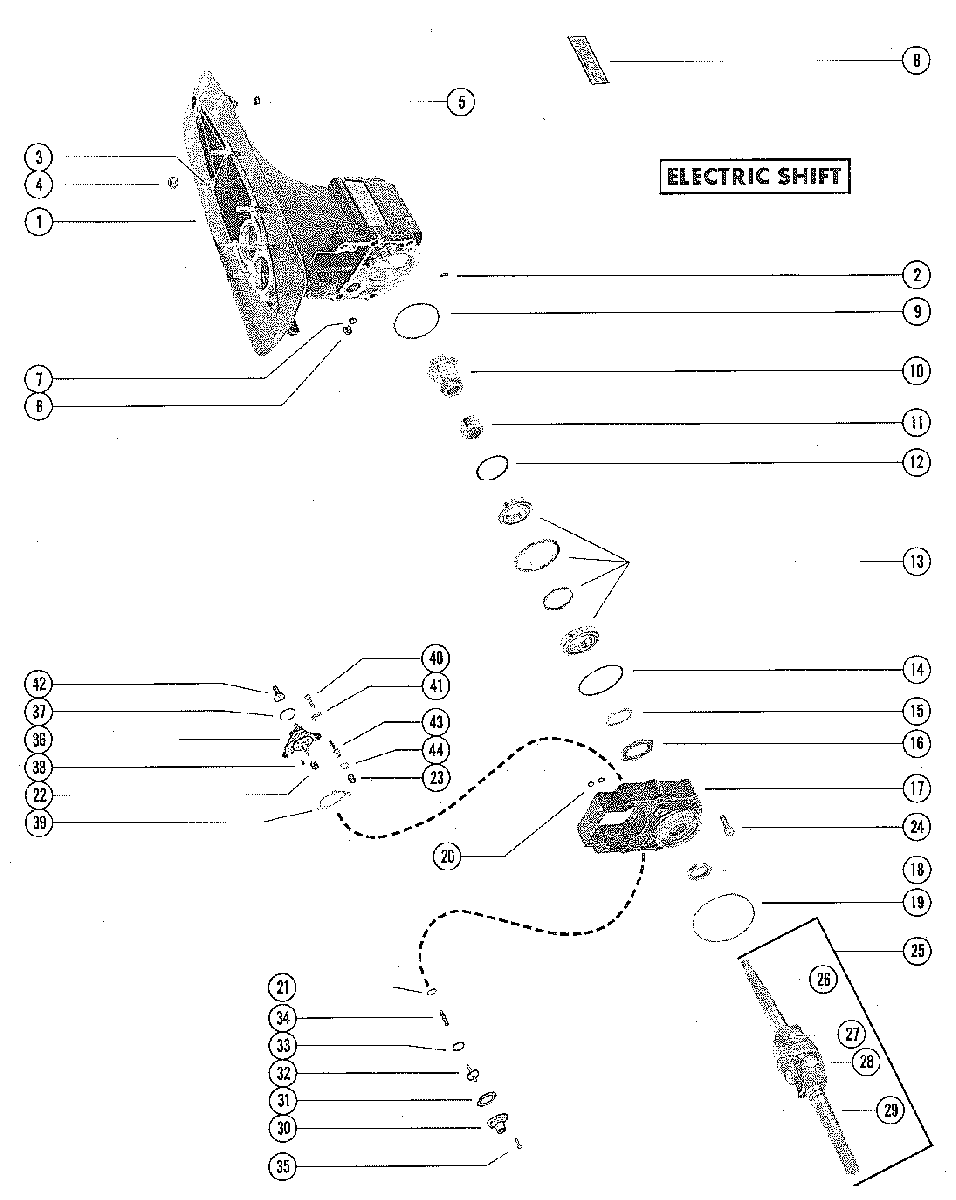

DRIVE SHAFT HOUSING AND GEAR ASSEMBLY ELECTRIC SHIFT(PAGE 1) для Mercruiser - 215E 1970-1972 2909035 THRU 2915034
-
№АртикулНазвание
-
11571-4113A1 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
210-21934 SCREW, SET - DRIVE SHAFT HOUSINGSCREW, SET - DRIVE SHAFT HOUSING
-
316-54674 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")
-
411-34933 NUT, DRIVE SHAFT HOUSING STUDNUT, DRIVE SHAFT HOUSING STUD
-
519-47579 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSINGPLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
-
610-79953Q04 SCREW, VENT - DRIVE SHAFT HOUSINGSCREW, VENT - DRIVE SHAFT HOUSING
-
712-191833 WASHER, SEALING - VENT SCREWWASHER, SEALING - VENT SCREW
-
837-56081A1 DECAL SET, DRIVE SHAFT HOUSINGDECAL SET, DRIVE SHAFT HOUSING
-
915-57423A1 SHIM ASSEMBLY, FRONT PINION GEAR (.002-3-5-10)SHIM ASSEMBLY, FRONT PINION GEAR (.002-3-5-10)
-
1043-57501A1 GEAR ASSEMBLY, PINION -UNIVERSAL JOINT (FRONT)GEAR ASSEMBLY, PINION -UNIVERSAL JOINT (FRONT)
-
1131-57410 ROLLER BEARING, FRONT PINION GEARROLLER BEARING, FRONT PINION GEAR
-
1225-57413 "O" RING, DRIVE SHAFT HOUSING"O" RING, DRIVE SHAFT HOUSING
-
1331-57411A2 TAPERED ROLLER BEARING ASSEMBLY, FRONT PINION GEARTAPERED ROLLER BEARING ASSEMBLY, FRONT PINION GEAR
-
1415-57423A1 SHIM ASSEMBLY, FRONT COVER (.002-3-5-10)SHIM ASSEMBLY, FRONT COVER (.002-3-5-10)
-
1512-57502 WASHER, SPLINED - FRONT PINION GEARWASHER, SPLINED - FRONT PINION GEAR
-
1611-57503 NUT, FRONT PINION GEARNUT, FRONT PINION GEAR
-
1757497A1 COVER ASSEMBLY, FRONTCOVER ASSEMBLY, FRONT
-
1826-56768 OIL SEAL, FRONT COVEROIL SEAL, FRONT COVER
-
1925-32068 "O" RING, FRONT COVER (4 1/8" I.D.)"O" RING, FRONT COVER (4 1/8" I.D.)
-
2025-45711 "O" RING, FRONT COVER (5/8" I.D.)"O" RING, FRONT COVER (5/8" I.D.)
-
2125-57414 "O" RING, FRONT COVER (1 1/2" I.D.)"O" RING, FRONT COVER (1 1/2" I.D.)
-
2223-55237 BUSHING, CRANKSHIFT GEAR - FRONT COVERBUSHING, CRANKSHIFT GEAR - FRONT COVER
-
2323-55238 BUSHING, CRANKSHIFT PINION - FRONT COVERBUSHING, CRANKSHIFT PINION - FRONT COVER
-
2410-30206 SCREW, FRONT COVER TO DRIVE SHAFT HOUSING (1")SCREW, FRONT COVER TO DRIVE SHAFT HOUSING (1")
-
2557498A1 UNVERSAL JOINT ASSEMBLY, PINION GEARSUNVERSAL JOINT ASSEMBLY, PINION GEARS
-
2657498 YOKE, UNERSAL JOINT (REAR PINION END)YOKE, UNERSAL JOINT (REAR PINION END)
-
2775832T1 CROSS AND BEARING ASSEMBLY, UNVERSAL JOINTCROSS AND BEARING ASSEMBLY, UNVERSAL JOINT
-
28393831 SOCKET, CENTER - UNIVERSAL JOINTSOCKET, CENTER - UNIVERSAL JOINT
-
2954086 YOKE, UNIVERSAL JOINT (COUPLING END)YOKE, UNIVERSAL JOINT (COUPLING END)
-
3054168 GUIDE, CHECK VALVEGUIDE, CHECK VALVE
-
3127-66925 GASKET, CHECK VALVE GUIDEGASKET, CHECK VALVE GUIDE
-
3220-48219 CHECK VALVE - OIL RELEASECHECK VALVE - OIL RELEASE
-
3325-48452 QUAD RING, OIL RELEASE CHECK VALVEQUAD RING, OIL RELEASE CHECK VALVE
-
3424-48442 SPRING, TENSION - OIL RELEASE CHECK VALVESPRING, TENSION - OIL RELEASE CHECK VALVE
-
3510-22523 SCREW, CHECK VALVE GUIDE TO FRONT COVERSCREW, CHECK VALVE GUIDE TO FRONT COVER
-
3657505A1 COVER ASSEMBLY, CRANKSHIFTCOVER ASSEMBLY, CRANKSHIFT
-
3725-864701 "O" RING, CRANKSHIFT COVER"O" RING, CRANKSHIFT COVER
-
3810-57400 SCREW, SET - CRANKSHIFT GEARSCREW, SET - CRANKSHIFT GEAR
-
3927-57506 GASKET, CRANKSHIFT COVERGASKET, CRANKSHIFT COVER
-
4010-69028 SCREW, CRANKSHIFT COVER TO FRONT COVER (3/4")SCREW, CRANKSHIFT COVER TO FRONT COVER (3/4")
-
4113-21272 LOCKWASHER, CRANKSHIFT COVER SCREWLOCKWASHER, CRANKSHIFT COVER SCREW
-
4212-56635A1 WASHER ASSEMBLY, CRANKSHIFTWASHER ASSEMBLY, CRANKSHIFT
-
4357500 PINION, CRANKSHIFTPINION, CRANKSHIFT
-
4415-48920A1 SHIM, CRANKSHIFT PINION (.025)SHIM, CRANKSHIFT PINION (.025)
