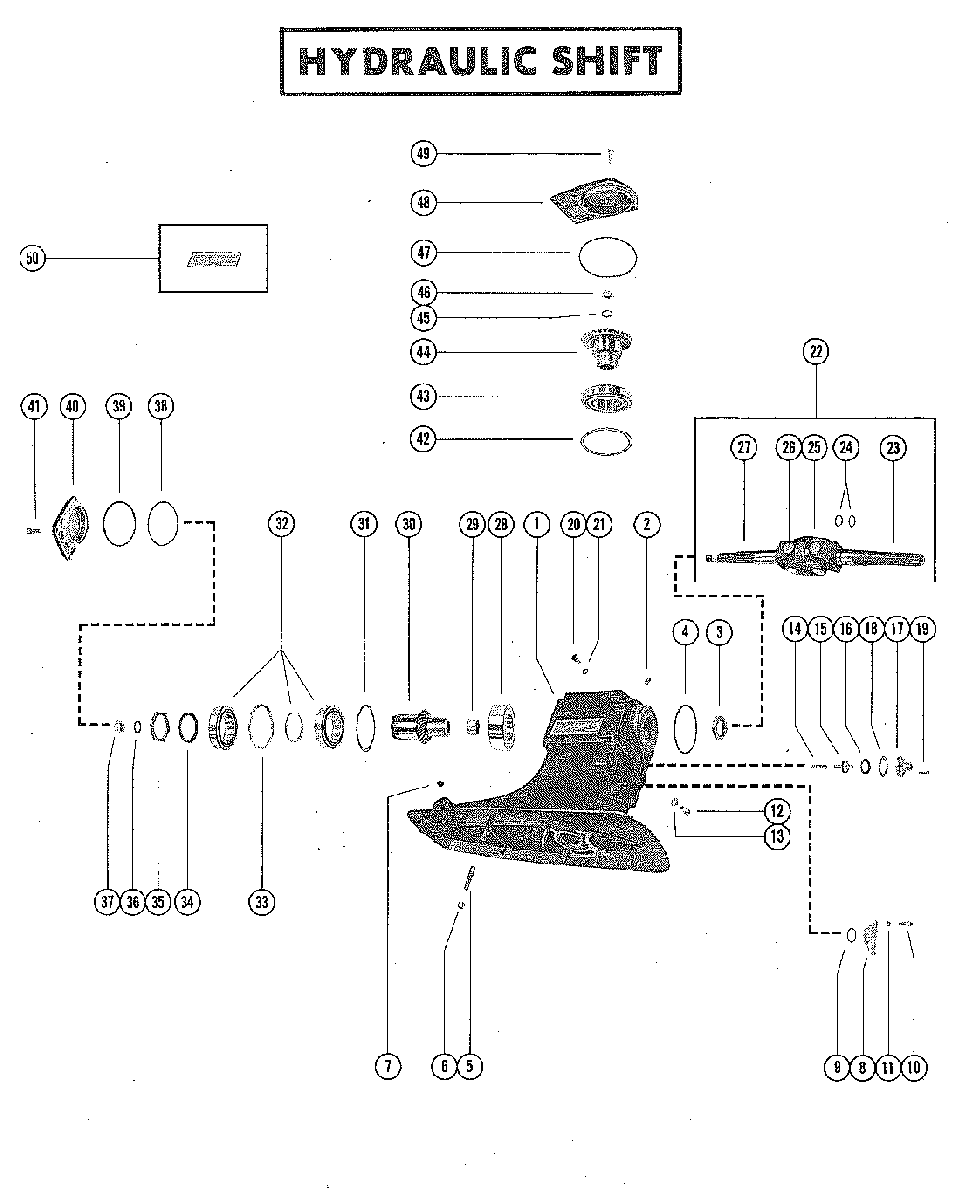

DRIVE SHAFT HOUSING AND GEAR ASSEMBLY HYDRAULIC SHIFT для Mercruiser - 215E 1970-1972 2909035 THRU 2915034

  • №
    Артикул
    Название
  • 1
    1571-3766A6 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    10-21934 SCREW, SET-DRIVE SHAFT HOUSING
    SCREW, SET-DRIVE SHAFT HOUSING
  • 3
    26-38105 OIL SEAL, DRIVE SHAFT HOUSING
    OIL SEAL, DRIVE SHAFT HOUSING
  • 4
    25-32068 "O" RING, DRIVE SHAFT HOUSING
    "O" RING, DRIVE SHAFT HOUSING
  • 5
    16-54674 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")
  • 6
    11-34933 NUT, DRIVE SHAFT HOUSING STUD
    NUT, DRIVE SHAFT HOUSING STUD
  • 7
    19-47579 PLUG, TRIM TAP HOLE-DRIVE SHAFT HOUSING
    PLUG, TRIM TAP HOLE-DRIVE SHAFT HOUSING
  • 8
    57745 COVER, PLUG-DRIVE SHAFT HOUSING
    COVER, PLUG-DRIVE SHAFT HOUSING
  • 9
    25-864701 "O" RING, PLUG COVER
    "O" RING, PLUG COVER
  • 10
    10-69026 SCREW, PLUG COVER TO DRIVE SHAFT HOUSING (7/8")
    SCREW, PLUG COVER TO DRIVE SHAFT HOUSING (7/8")
  • 11
    13-22773 LOCKWASHER, PLUG COVER SCREW
    LOCKWASHER, PLUG COVER SCREW
  • 12
    10-79953Q04 SCREW, VENT-DRIVE SHAFT HOUSING
    SCREW, VENT-DRIVE SHAFT HOUSING
  • 13
    12-191833 WASHER, SEALING-VENT SCREW
    WASHER, SEALING-VENT SCREW
  • 14
    24-48442 SPRING, TENSION-OIL RELEASE CHECK VALVE
    SPRING, TENSION-OIL RELEASE CHECK VALVE
  • 15
    20-48219 CHACK VALVE, OIL RELEASE
    CHACK VALVE, OIL RELEASE
  • 16
    25-48452 QUAD RING, OIL RELEASE CHECK VALVE
    QUAD RING, OIL RELEASE CHECK VALVE
  • 17
    54168 GUIDE, CHECK VALVE
    GUIDE, CHECK VALVE
  • 18
    27-66925 GASKET, CHECK VALVE GUIDE
    GASKET, CHECK VALVE GUIDE
  • 19
    392-2523 SCREW, CHECK VALVE GUIDE TO DRIVE SHAFT HOUSING (3/4")
    SCREW, CHECK VALVE GUIDE TO DRIVE SHAFT HOUSING (3/4")
  • 20
    23-54349 BUSHNING, PLUG-DRIVE SHAFT HOUSING
    BUSHNING, PLUG-DRIVE SHAFT HOUSING
  • 21
    12-54351 WASHER, SEALING-PLUG BUSHING
    WASHER, SEALING-PLUG BUSHING
  • 22
    54397A3 UNIVERSAL JOINT ASSEMBLY, PINION GEAR
    UNIVERSAL JOINT ASSEMBLY, PINION GEAR
  • 23
    57749A1 YOKE ASSEMBLY, UNIVERSAL JOINT (COUPLING END)
    YOKE ASSEMBLY, UNIVERSAL JOINT (COUPLING END)
  • 24
    25-25439 "O" RING, UNIVERSAL JOINT
    "O" RING, UNIVERSAL JOINT
  • 25
    393831 SOCKET, CENTER -UNIVERSAL JOINT
    SOCKET, CENTER -UNIVERSAL JOINT
  • 26
    75832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
    CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
  • 27
    54397 YOKE, UNIVERSAL JOINT (GEAR END)
    YOKE, UNIVERSAL JOINT (GEAR END)
  • 28
    57742A1 ADAPTOR ASSEMBLY, ROLLER BEARING
    ADAPTOR ASSEMBLY, ROLLER BEARING
  • 29
    31-8M0050403 ROLLER BEARING, ADAPTOR
    ROLLER BEARING, ADAPTOR
  • 30
    43-54401A2 GEAR ASSEMBLY, PINION-UNIVERSAL JOINT (REAR)
    GEAR ASSEMBLY, PINION-UNIVERSAL JOINT (REAR)
  • 31
    15-54008A1 SHIM ASSEMBLY, REAR PINION GEAR (.002-3-5-10)
    SHIM ASSEMBLY, REAR PINION GEAR (.002-3-5-10)
  • 32
    31-54038A2 TAPERED ROLLER BEARING ASSEMBLY, REAR PINION GEAR
    TAPERED ROLLER BEARING ASSEMBLY, REAR PINION GEAR
  • 33
    23-53999 SPACER, TAPERED ROLLER BEARING CUPS
    SPACER, TAPERED ROLLER BEARING CUPS
  • 34
    12-54049 WASHER, SPLINTED-REAR PINION GEAR
    WASHER, SPLINTED-REAR PINION GEAR
  • 35
    11-54046 NUT, REAR PINION GEAR
    NUT, REAR PINION GEAR
  • 36
    12-54006 WASHER, UNIVERSAL JOINT
    WASHER, UNIVERSAL JOINT
  • 37
    11-55819 NUT, UNIVERSAL JOINT
    NUT, UNIVERSAL JOINT
  • 38
    15-54008A1 SHIM ASSEMBLY, REAR COVER (.002-3-5-10)
    SHIM ASSEMBLY, REAR COVER (.002-3-5-10)
  • 39
    25-39695 "O" RING, REAR COVER
    "O" RING, REAR COVER
  • 40
    57765 COVER, REAR
    COVER, REAR
  • 41
    10-31985 SCREW, REAR COVER TO DRIVE SHAFT HOUSING (1 1/4")
    SCREW, REAR COVER TO DRIVE SHAFT HOUSING (1 1/4")
  • 42
    15-54009A1 SHIM ASSMBLY, TAPERED ROLLER BEARING (.002-3-510)
    SHIM ASSMBLY, TAPERED ROLLER BEARING (.002-3-510)
  • 43
    31-55466A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE GEAR
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE GEAR
  • 44
    43-54399 GEAR, DRIVE-DRIVE SHAFT
    GEAR, DRIVE-DRIVE SHAFT
  • 45
    12-54414 WASHER, DRIVE GEAR
    WASHER, DRIVE GEAR
  • 46
    11-55820 NUT, DRIVE GEAR TO DRIVE SHAFT
    NUT, DRIVE GEAR TO DRIVE SHAFT
  • 47
    25-54031 "O" RING TOP COVER
    "O" RING TOP COVER
  • 48
    62911T COVER, TOP
    COVER, TOP
  • 49
    10-31985 SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")
    SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")
  • 50
    37-56081A1 DECAL SET, DRIVE SHAFT HOUSING
    DECAL SET, DRIVE SHAFT HOUSING
