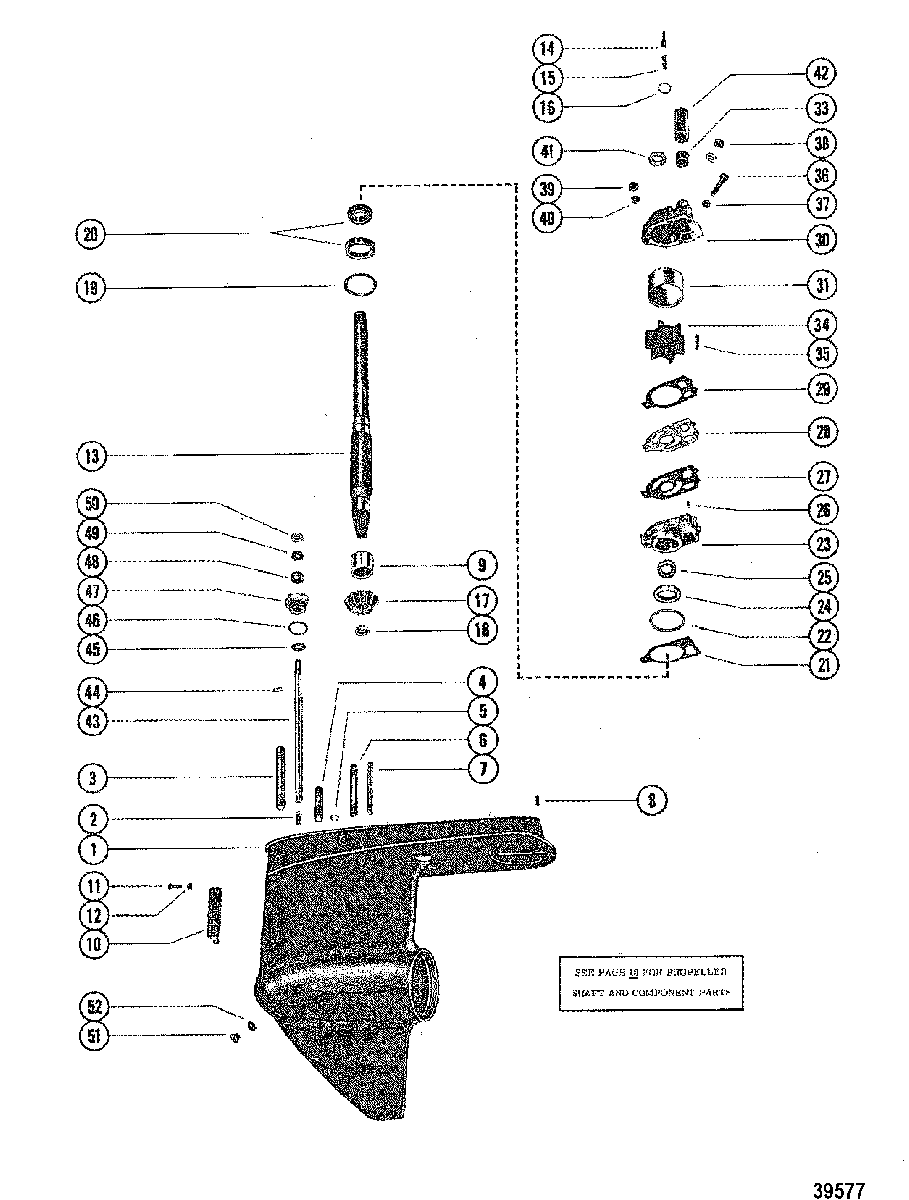

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - 165 1978-1981 4890460 & Up
-
№АртикулНазвание
-
-1623-8951A43 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
11623-5356A4 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
217-379721 PIN, SHIFT CRANK-GEAR HOUSINGPIN, SHIFT CRANK-GEAR HOUSING
-
316-46911 STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (3 3/16")STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (3 3/16")
-
416-56298 STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (1 31/32")STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (1 31/32")
-
526-455771 SEAL, GEAR HOUSINGSEAL, GEAR HOUSING
-
616-8M0034463 STUD, (.312 x 3.38), WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")STUD, (.312 x 3.38), WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
-
716-69501 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")
-
817-8M0084726 PIN, Dowel (.187 x .530), GEAR HOUSING TO DRIVESHAFT HOUSINGPIN, Dowel (.187 x .530), GEAR HOUSING TO DRIVESHAFT HOUSING
-
931-92366A1 BEARING, ROLLER-DRIVESHAFTBEARING, ROLLER-DRIVESHAFT
-
1066884 INSERT, WATER PICKUP
(PORT SIDE)INSERT, WATER PICKUP
(PORT SIDE) -
1066885 INSERT, WATER PICKUP
(STARBOARD SIDE)INSERT, WATER PICKUP
(STARBOARD SIDE) -
1110-76156 SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSINGSCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING
-
1211-859124 NUT, (#10-32) Stainless Steel, INSERT SCREWNUT, (#10-32) Stainless Steel, INSERT SCREW
-
1345-41939F1 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
1417-30545 PIN, DRIVESHAFTPIN, DRIVESHAFT
-
1524-34576 SPRING, COMPRESSION-DRIVESHAFTSPRING, COMPRESSION-DRIVESHAFT
-
1625-30613 O-RING, UPPER-DRIVESHAFTO-RING, UPPER-DRIVESHAFT
-
1743-96084A4 GEAR SET (INCLUDES PINION, FORWARD AND REVERSE GEARS)GEAR SET (INCLUDES PINION, FORWARD AND REVERSE GEARS)
-
1811-35921 NUT, (.625-18), PINION GEAR TO DRIVESHAFTNUT, (.625-18), PINION GEAR TO DRIVESHAFT
-
1915-57007A1 SHIM, DRIVESHAFT BEARING TO GEAR HOUSING (.002-3-5-10-20)SHIM, DRIVESHAFT BEARING TO GEAR HOUSING (.002-3-5-10-20)
-
2031-53079A1 BEARING ASSEMBLY, Tapered Roller, DRIVESHAFTBEARING ASSEMBLY, Tapered Roller, DRIVESHAFT
-
2127-856704 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
2225-33145 O-RING, (1.984 x .139), WATER PUMP BASEO-RING, (1.984 x .139), WATER PUMP BASE
-
2346-57234A1 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2426-89238 SEAL, Oil, WATER PUMP BASESEAL, Oil, WATER PUMP BASE
-
2526-16977 SEAL, Oil, WATER PUMP BASESEAL, Oil, WATER PUMP BASE
-
2617-8M0084627 PIN, Dowel, WATER PUMP BASE TO WATER PUMP BODYPIN, Dowel, WATER PUMP BASE TO WATER PUMP BODY
-
2727-8M0090319 GASKET, LOWER-WATER PUMP BASE TO FACE PLATEGASKET, LOWER-WATER PUMP BASE TO FACE PLATE
-
28324351 FACE PLATE, WATER PUMP BASE TO WATER PUMP BODYFACE PLATE, WATER PUMP BASE TO WATER PUMP BODY
-
2927-858524 GASKET, UPPER-FACE PLATE TO WATER PUMP BODYGASKET, UPPER-FACE PLATE TO WATER PUMP BODY
-
3046-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
3148752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
3326-38970 SEAL, RUBBER-WATER INLET TUBESEAL, RUBBER-WATER INLET TUBE
-
3447-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3528-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3610-30720 SCREW, (.250-20 x 2.25), WATER PUMP BODY TO GEAR HOUSINGSCREW, (.250-20 x 2.25), WATER PUMP BODY TO GEAR HOUSING
-
3712-36001 WASHER, WATER PUMP BODY SCREWWASHER, WATER PUMP BODY SCREW
-
3811-35888 NUT, (.250-28) Stainless Steel, WATER PUMP BODY STUDS (1/4-28)NUT, (.250-28) Stainless Steel, WATER PUMP BODY STUDS (1/4-28)
-
3911-826709111 NUT, (.312-24), WATER PUMP BODY STUDSNUT, (.312-24), WATER PUMP BODY STUDS
-
4012-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP BODY STUDWASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP BODY STUD
-
4125-30271 RING, Rubber, CENTRIFUGAL SLINGER (DRIVESHAFT)RING, Rubber, CENTRIFUGAL SLINGER (DRIVESHAFT)
-
4223-29804T SLEEVE, GUIDE-WATER INLET TUBESLEEVE, GUIDE-WATER INLET TUBE
-
43774811 SHAFT, SHIFT-LOWERSHAFT, SHIFT-LOWER
-
4453-29641 CLIP, RETAINING-SHIFT SHAFTCLIP, RETAINING-SHIFT SHAFT
-
4512-27880 WASHER, LOWER SHIFT SHAFT AND CRANKWASHER, LOWER SHIFT SHAFT AND CRANK
-
4625-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHINGO-RING, (.862 x .103), SHIFT SHAFT BUSHING
-
4723-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4826-892361 SEAL, Oil, SHIFT SHAFT BUSHINGSEAL, Oil, SHIFT SHAFT BUSHING
-
4912-31266 WASHER, RUBBER-SHIFT SHAFT BUSHINGWASHER, RUBBER-SHIFT SHAFT BUSHING
-
5012-8M0042641 WASHER, (.390 x 1.00 x .06), SHIFT SHAFTWASHER, (.390 x 1.00 x .06), SHIFT SHAFT
-
5110-79953Q04 SCREW, (.375-16 x .250), GEAR HOUSING GREASE FILLER AND VENT HOLESCREW, (.375-16 x .250), GEAR HOUSING GREASE FILLER AND VENT HOLE
-
5212-191833 WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREWWASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
-
-26-33144A2 SEAL KITSEAL KIT
-
-26-32511A1 SEAL KITSEAL KIT
-
-46-96148A8 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
-43-96084A08 GEAR REPLACEMENT KITGEAR REPLACEMENT KIT
