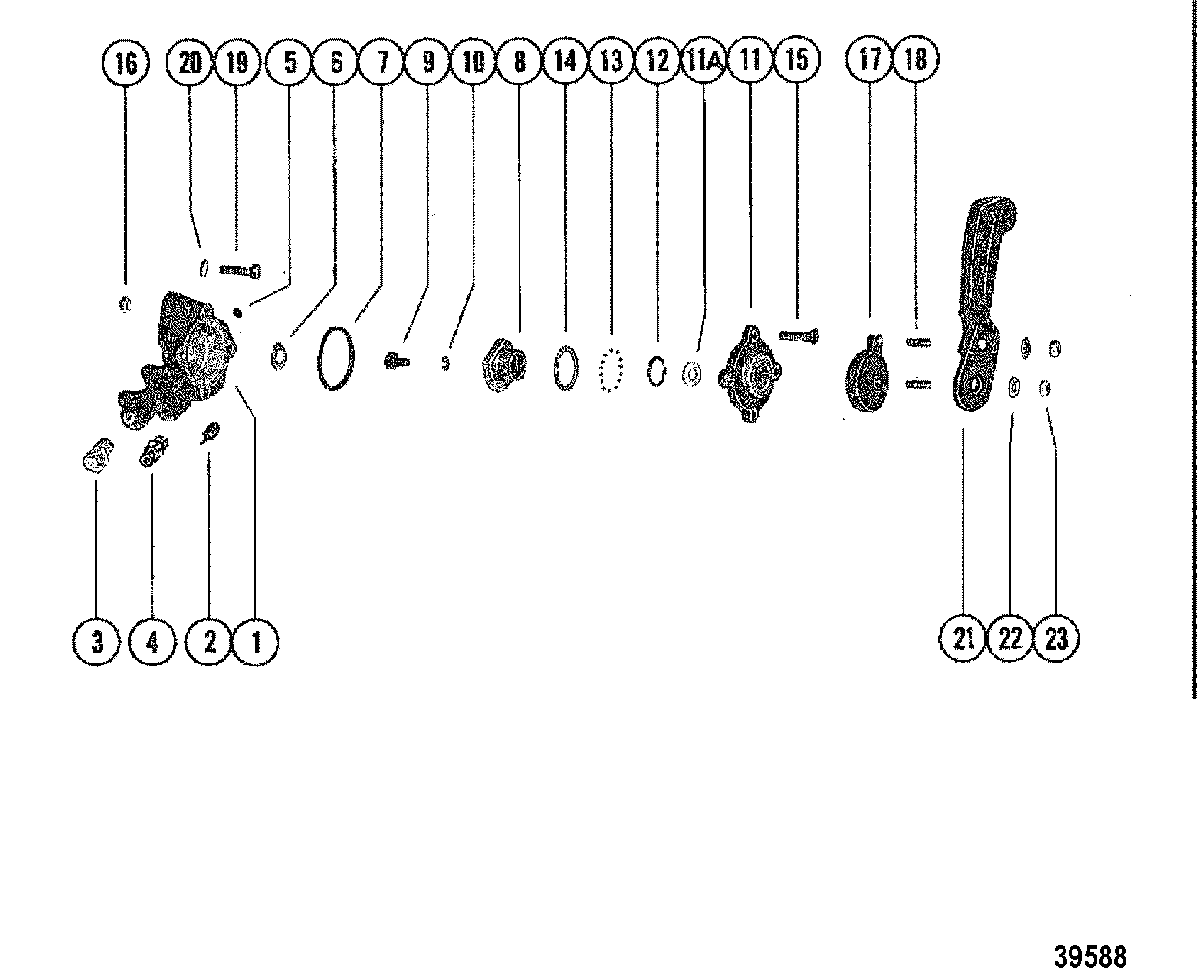

REVERSE LOCK VALVE ASSEMBLY(IN-LINE ENGINES) для Mercruiser - 165 1978-1981 4890460 & Up
-
№АртикулНазвание
-
176812T4 VALVE ASSEMBLY, Reverse LockVALVE ASSEMBLY, Reverse Lock
-
245709 FOLLOWER, CAMFOLLOWER, CAM
-
322-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVEELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
-
422-48167 CONNECTORCONNECTOR
-
522-390721 PLUG, PIPE-REVERSE LOCK VALVEPLUG, PIPE-REVERSE LOCK VALVE
-
613-25906 WASHER, WAVE-REVERSE LOCK VALVEWASHER, WAVE-REVERSE LOCK VALVE
-
725-457101 O-RING, (1.424 x .103), REVERSE LOCK VALVEO-RING, (1.424 x .103), REVERSE LOCK VALVE
-
845526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
910-46736 SCREW, (0.5 In.), CAM TO CAM LEVER (1/2")SCREW, (0.5 In.), CAM TO CAM LEVER (1/2")
-
1013-26996 LOCKWASHER, (#10) Stainless Steel, CAM SCREWLOCKWASHER, (#10) Stainless Steel, CAM SCREW
-
1145528A2 COVER, REVERSE LOCK VALVECOVER, REVERSE LOCK VALVE
-
11A12-59570 WASHER, REVERSE LOCK VALVE COVERWASHER, REVERSE LOCK VALVE COVER
-
1225-45711 O-RING, (.612 x .103), VALVE COVERO-RING, (.612 x .103), VALVE COVER
-
1330-45712 BALL, VALVE COVERBALL, VALVE COVER
-
1412-45713 WASHER, REATINING-BALL TO VALVE COVERWASHER, REATINING-BALL TO VALVE COVER
-
1510-45716 SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVESCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE
-
1611-20110 NUT, (#10-32), COVER SCREWNUT, (#10-32), COVER SCREW
-
1746732A1 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
1816-45715 STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM (23/32")STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM (23/32")
-
1910-25299 SCREW, (.312-18 x .75), REVERSE LOCK VALVESCREW, (.312-18 x .75), REVERSE LOCK VALVE
-
2013-21804 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
2166397A1 LEVER ASSEMBLY, SHIFT CONTROL-CAM LEVERLEVER ASSEMBLY, SHIFT CONTROL-CAM LEVER
-
2212-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
2311-20110 NUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUDNUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUD
