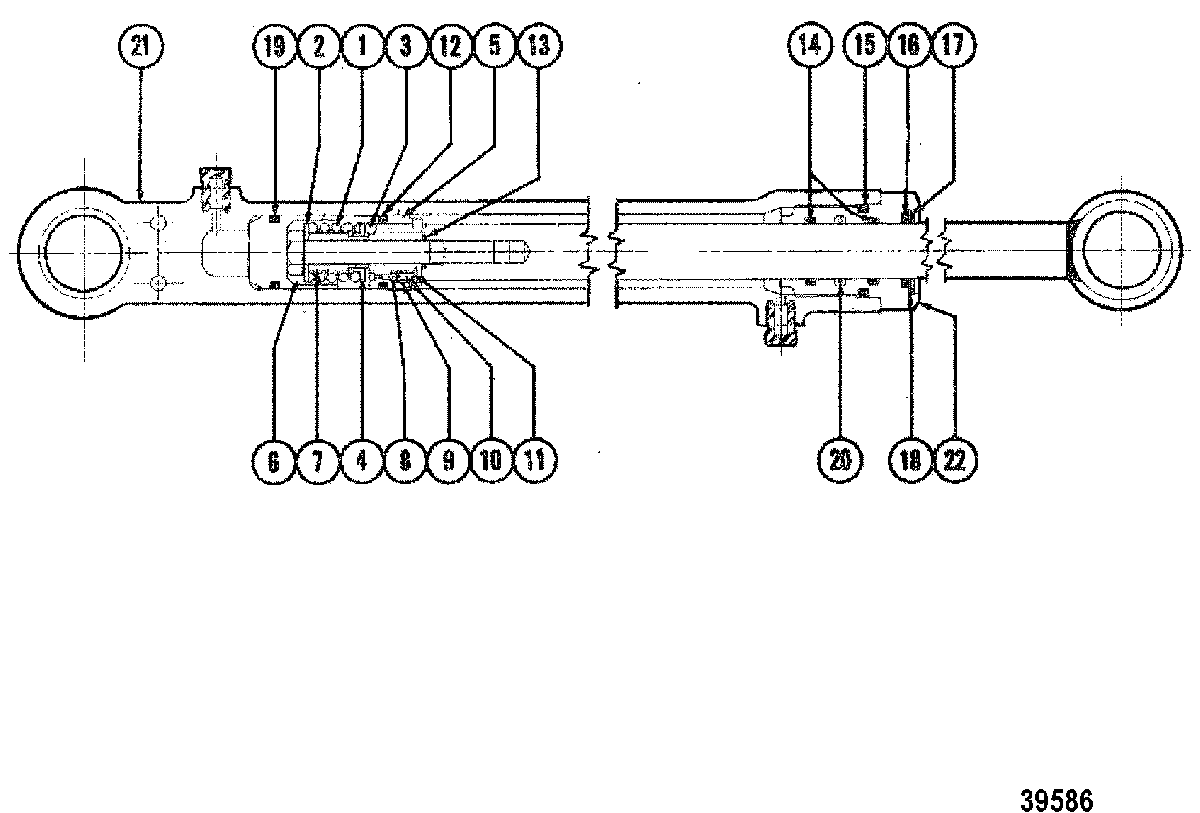

POWER TRIM CYLINDER REPAIR KITS(EXTERNAL LINE) для Mercruiser - 165 1978-1981 4890460 & Up

  • №
    Артикул
    Название
  • -
    87068A1 OVERHAUL KIT
    OVERHAUL KIT
  • 1
    N.S.S. Not Sold Separate, SPRING, COMPRESSION
    Not Sold Separate, SPRING, COMPRESSION
  • 2
    N.S.S. Not Sold Separate, WASHER, SPRING GUIDE
    Not Sold Separate, WASHER, SPRING GUIDE
  • 3
    N.S.S. Not Sold Separate, BALL, STEEL (5/32)
    Not Sold Separate, BALL, STEEL (5/32)
  • 4
    N.S.S. Not Sold Separate, WASHER
    Not Sold Separate, WASHER
  • 5
    N.S.S. Not Sold Separate, PISTON, SHOCK
    Not Sold Separate, PISTON, SHOCK
  • 6
    N.S.S. Not Sold Separate, SCREW (5/16-18 x 2 1/2")
    Not Sold Separate, SCREW (5/16-18 x 2 1/2")
  • 7
    N.S.S. Not Sold Separate, GUIDE, SPRING
    Not Sold Separate, GUIDE, SPRING
  • 8
    N.S.S. Not Sold Separate, BALL, STEEL (7/64)
    Not Sold Separate, BALL, STEEL (7/64)
  • 9
    N.S.S. Not Sold Separate, SPRING, COMPRESSION
    Not Sold Separate, SPRING, COMPRESSION
  • 10
    N.S.S. Not Sold Separate, EYELET, BALL CHECK
    Not Sold Separate, EYELET, BALL CHECK
  • 11
    N.S.S. Not Sold Separate, PIN, SPRING
    Not Sold Separate, PIN, SPRING
  • --
    25-60342A3 SEAL KIT
    SEAL KIT
  • 12
    N.S.S. Not Sold Separate, QUAD RING
    Not Sold Separate, QUAD RING
  • 13
    N.S.S. Not Sold Separate, O RING
    Not Sold Separate, O RING
  • 14
    N.S.S. Not Sold Separate, O RING
    Not Sold Separate, O RING
  • 15
    N.S.S. Not Sold Separate, O RING
    Not Sold Separate, O RING
  • 16
    N.S.S. Not Sold Separate, SCRAPER, ROD
    Not Sold Separate, SCRAPER, ROD
  • 17
    N.S.S. Not Sold Separate, RING, RETAINING
    Not Sold Separate, RING, RETAINING
  • 18
    N.S.S. Not Sold Separate, WASHER
    Not Sold Separate, WASHER
  • 19
    N.S.S. Not Sold Separate, O RING
    Not Sold Separate, O RING
  • 20
    N.S.S. Not Sold Separate, SPRING, CONTINUITY
    Not Sold Separate, SPRING, CONTINUITY
  • 21
    87173A7 TUBE, OUTER
    TUBE, OUTER
  • 22
    87069 CAP, ROD END
    CAP, ROD END
