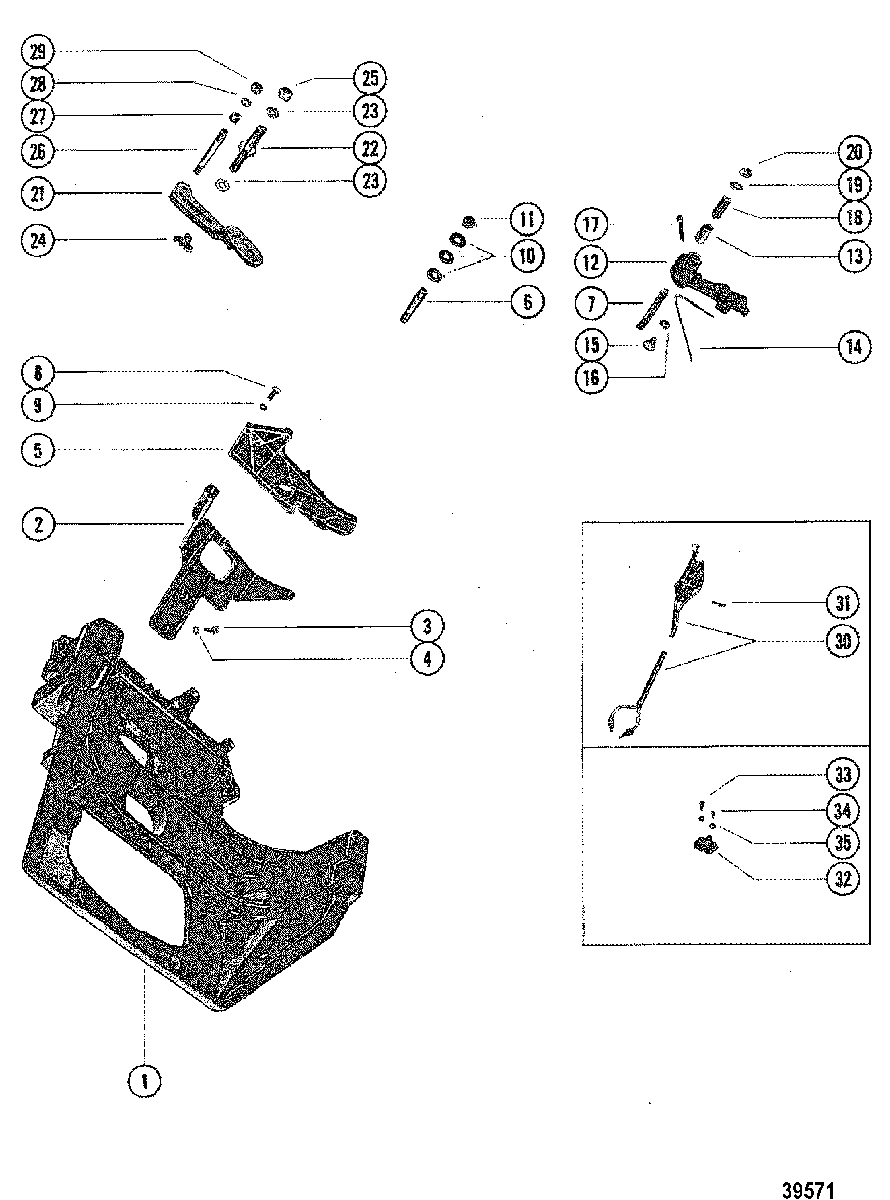

TRANSOM PLATE AND SHIFT LEVER(IN-LINE ENGINES) для Mercruiser - 165 1978-1981 4890460 & Up
-
№АртикулНазвание
-
165550A2 PLATE ASSEMBLY, TRANSOMPLATE ASSEMBLY, TRANSOM
-
266058 BRACKET, SHIFT MOUNTINGBRACKET, SHIFT MOUNTING
-
310-23703 BOLT, SHIFT MOUNTING BRACKET TO TRANSOM PLATE (7/8")BOLT, SHIFT MOUNTING BRACKET TO TRANSOM PLATE (7/8")
-
413-21804 LOCKWASHERLOCKWASHER
-
566057A3 BRACKET ASSEMBLY, ShiftBRACKET ASSEMBLY, Shift
-
616-79661 STUD, (1.75 In.), SHIFT CABLE TO SHIFT BRACKETSTUD, (1.75 In.), SHIFT CABLE TO SHIFT BRACKET
-
716-73563 STUD, (.312-18/.312-24 x 2.310), SWITCH ACTUATING ARM TO SHIFT BRACKETSTUD, (.312-18/.312-24 x 2.310), SWITCH ACTUATING ARM TO SHIFT BRACKET
-
810-35386 SCREW, (.312-18 x 1.00), SHIFT BRACKET TO SHIFT MOUNTING BRACKETSCREW, (.312-18 x 1.00), SHIFT BRACKET TO SHIFT MOUNTING BRACKET
-
913-21804 LOCKWASHER, SHIFT BRACKET SCREWLOCKWASHER, SHIFT BRACKET SCREW
-
1012-39143 WASHER, (.253 x .625 x .0937), SHIFT CABLE STUDWASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
-
1111-8267089 NUT, (.250-28), SHIFT CABLE STUDNUT, (.250-28), SHIFT CABLE STUD
-
1213051A4 ARM ASSEMBLY, SWITCH ACTUATINGARM ASSEMBLY, SWITCH ACTUATING
-
1323-45600 SLEEVE, SWITCH ACTUATING STUDSLEEVE, SWITCH ACTUATING STUD
-
1424-862850 SPRING, TENSION - SWITCH ACTUATING ARMSPRING, TENSION - SWITCH ACTUATING ARM
-
1510-98257 SCREW, (1/2 In.), TENSION SPRING TO ARMSCREW, (1/2 In.), TENSION SPRING TO ARM
-
1612-26825 WASHER, (.328 x .750 x .06), TENSION SPRING SCREWWASHER, (.328 x .750 x .06), TENSION SPRING SCREW
-
1718-328571 COTTER PIN, SHIFT ACTUATING CABLE TO SHIFT BRACKETCOTTER PIN, SHIFT ACTUATING CABLE TO SHIFT BRACKET
-
1823-37981 SPACER, SWITCH ACTUATING ARM TO SHIFT BRACKETSPACER, SWITCH ACTUATING ARM TO SHIFT BRACKET
-
1912-26825 WASHER, (.328 x .750 x .06), SWITCH ACTUATING ARM STUDWASHER, (.328 x .750 x .06), SWITCH ACTUATING ARM STUD
-
2011-82670911 NUT, (.312-24) Stainless Steel, SWITCH ACTUATING ARM STUDNUT, (.312-24) Stainless Steel, SWITCH ACTUATING ARM STUD
-
2166397A1 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVERLEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
-
2216-63335 STUD, (.250-28 x 2.00), SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVERSTUD, (.250-28 x 2.00), SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
-
2312-39143 WASHER, (.253 x .625 x .0937), SHIFT ACTUATING CABLE STUDWASHER, (.253 x .625 x .0937), SHIFT ACTUATING CABLE STUD
-
2411-63341 TEE NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVERTEE NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
-
2511-8267089 NUT, (.250-28), SHIFT CABLE STUDNUT, (.250-28), SHIFT CABLE STUD
-
2616-79661 STUD, (1.75 In.), SHIFT CABLE TO LEVERSTUD, (1.75 In.), SHIFT CABLE TO LEVER
-
2723-31866 SPACER, (.256 x .313 x .625), SHIFT CABLE STUDSPACER, (.256 x .313 x .625), SHIFT CABLE STUD
-
2812-39143 WASHER, (.253 x .625 x .0937), SHIFT CABLE STUDWASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
-
2911-8267089 NUT, (.250-28), SHIFT ACTUATING LEVERNUT, (.250-28), SHIFT ACTUATING LEVER
-
3039670A28 SWITCH ASSEMBLY, CUT-OUT - SHIFT BRACKETSWITCH ASSEMBLY, CUT-OUT - SHIFT BRACKET
-
3110-30902 SCREW, (#6-32 x .750), SWITCH ASSEMBLY TO SHIFT BRACKETSCREW, (#6-32 x .750), SWITCH ASSEMBLY TO SHIFT BRACKET
-
3286-66986 TERMINAL BLOCK, CUT-OUT SWITCH LEADSTERMINAL BLOCK, CUT-OUT SWITCH LEADS
-
3310-24637 SCREW, (#10-32 x .875), GROUND LEADS/TERMINAL BLOCK TO BRACKETSCREW, (#10-32 x .875), GROUND LEADS/TERMINAL BLOCK TO BRACKET
-
3410-45218 SCREW, (#10-32 x .380), CUT-OUT SWITCH LEAD TO TERMINAL BLOCKSCREW, (#10-32 x .380), CUT-OUT SWITCH LEAD TO TERMINAL BLOCK
-
3513-26996 LOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREWSLOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREWS
