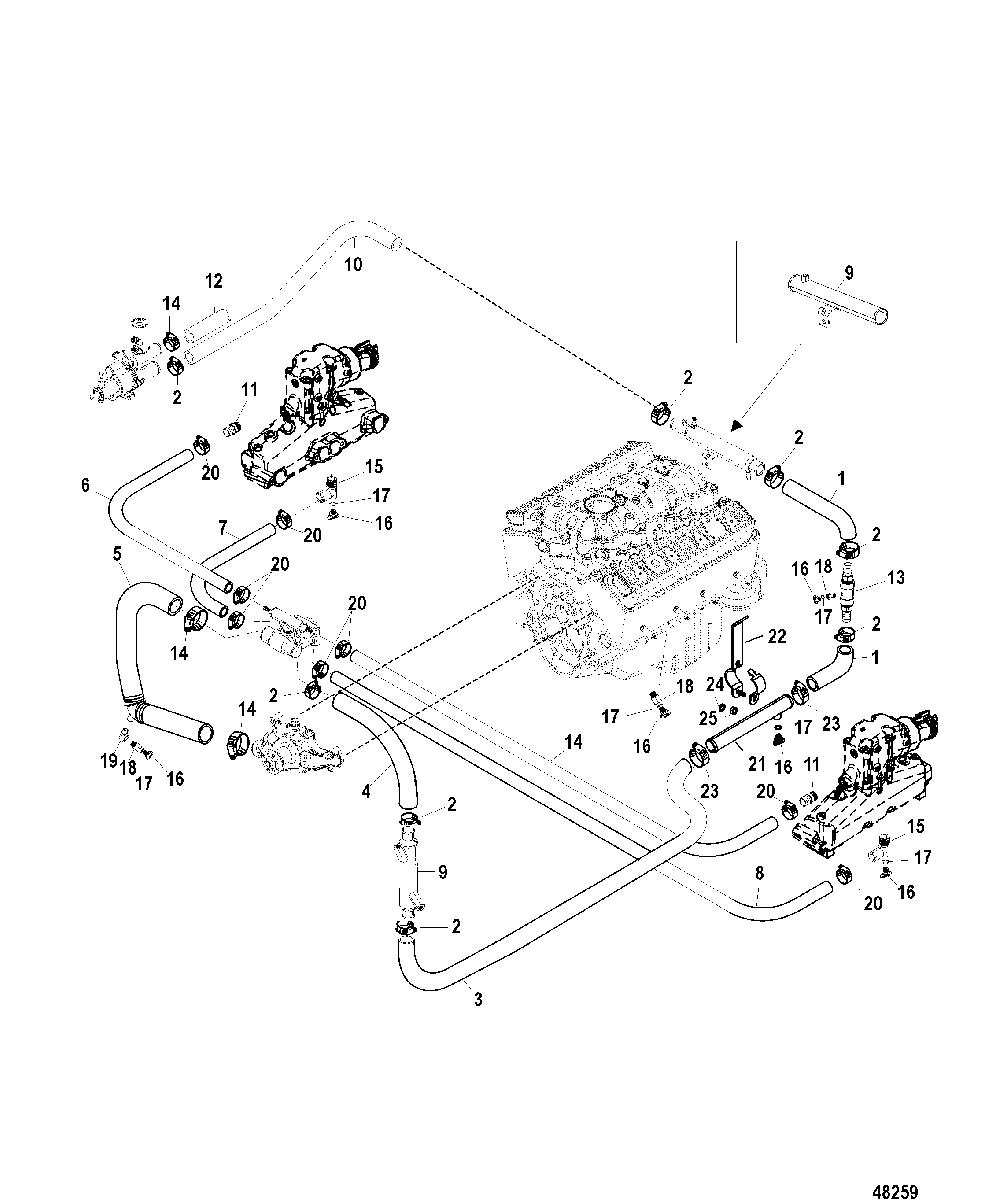

Standard Cooling System, 383 Mag Bravo 4V для Mercruiser - 357 Mag Bravo 4V 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    32-8600891 HOSE, Molded, Power Steering to Fuel Cooler (Cut into 2 Pieces)
    HOSE, Molded, Power Steering to Fuel Cooler (Cut into 2 Pieces)
  • 2
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 3
    32-864578 HOSE, Drain Fitting to Check Valve
    HOSE, Drain Fitting to Check Valve
  • 4
    32-864579 HOSE, Check Valve to Thermostat Housing
    HOSE, Check Valve to Thermostat Housing
  • 5
    32-864703A1 HOSE, Circulating Pump to Drain Elbow
    HOSE, Circulating Pump to Drain Elbow
  • 6
    32-8M0062614 HOSE, (48.00 Inches Bulk), Cut into 2 Pieces 1-Port/1-Starboard
    HOSE, (48.00 Inches Bulk), Cut into 2 Pieces 1-Port/1-Starboard
  • 7
    32-863459 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 8
    32-863458 HOSE, Thermostat Housing to Port Manifold
    HOSE, Thermostat Housing to Port Manifold
  • 9
    807371T1 COOLER, Oil
    COOLER, Oil
  • 10
    32-863611 HOSE, Seawater Pump to Steering Cooler
    HOSE, Seawater Pump to Steering Cooler
  • 11
    22-866725 FITTING, Straight (.750-14), Barb
    FITTING, Straight (.750-14), Barb
  • 12
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    HOSE, (96.00 Inches Bulk)
  • 13
    21-862271A1 CHECK VALVE
    CHECK VALVE
  • 14
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 15
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 16
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 17
    25-26802 SEAL
    SEAL
  • 18
    22-860088 BUSHING
    BUSHING
  • 19
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 20
    54-815504216 CLAMP, (25 - 40 mm)
    CLAMP, (25 - 40 mm)
  • 21
    860315A1 TUBE
    TUBE
  • 22
    860418T BRACKET
    BRACKET
  • 23
    860417T CLAMP
    CLAMP
  • 24
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 25
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
