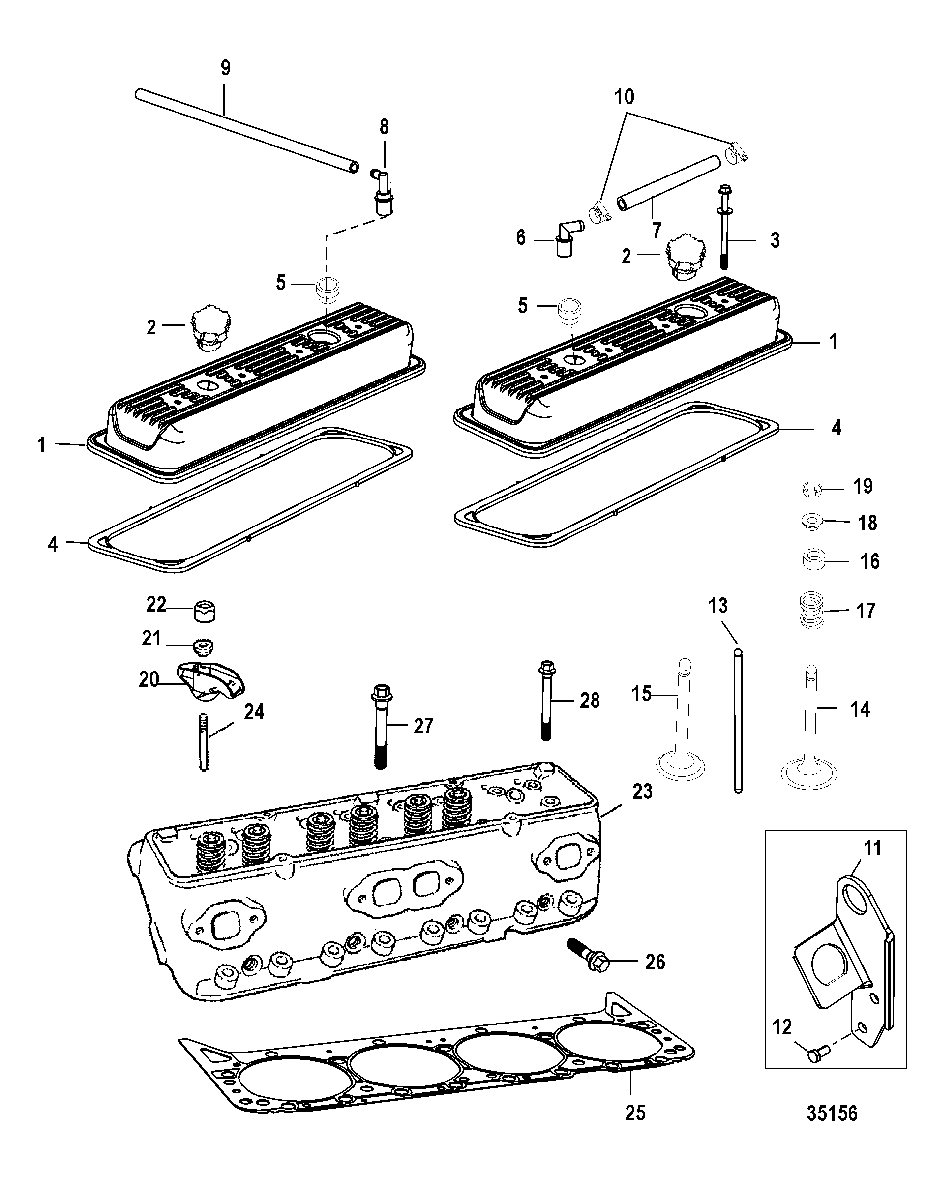

Cylinder Head and Rocker Cover для Mercruiser - 357 Mag Bravo 4V 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    809995 COVER, Rocker
    COVER, Rocker
  • 2
    36-18710002 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 5
    23-8M0071559 GROMMET
    GROMMET
  • 6
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 7
    32-8M0062321 HOSE, (33.00 Inches Bulk)
    HOSE, (33.00 Inches Bulk)
  • 8
    21-8M2017060 VALVE, PCV
    VALVE, PCV
  • 9
    32-8M0062669 HOSE, (36.00 Inches Bulk), Breather (Cut to 11.50 Inch Length)
    HOSE, (36.00 Inches Bulk), Breather (Cut to 11.50 Inch Length)
  • 10
    54-815504105 CLAMP, Worm Gear (11-18 mm), Hose
    CLAMP, Worm Gear (11-18 mm), Hose
  • 11
    899719T02 BRACKET
    BRACKET
  • 12
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 13
    173391 PUSH ROD
    PUSH ROD
  • 13
    NSS NOT SOLD SEPARATE, Push Rod, Obtain Local, Comp Cams #7608-1
    NOT SOLD SEPARATE, Push Rod, Obtain Local, Comp Cams #7608-1
  • 14
    8243171 VALVE, Exhaust
    (Standard)
    VALVE, Exhaust
    (Standard)
  • 14
    8243181 VALVE, Exhaust
    (.030 Oversize)
    VALVE, Exhaust
    (.030 Oversize)
  • 15
    809992 VALVE, Intake - Standard
    VALVE, Intake - Standard
  • 16
    26-8M0050563 SEAL, Valve
    Intake
    SEAL, Valve
    Intake
  • 16
    26-804507 SEAL, Valve
    Exhaust
    SEAL, Valve
    Exhaust
  • 17
    24-483471 SPRING
    357 Alpha/Bravo
    SPRING
    357 Alpha/Bravo
  • 17
    8M0120862 Valve Spring Kit, Complete
    383 Bravo 4V
    Valve Spring Kit, Complete
    383 Bravo 4V
  • 18
    483481 CAP
    CAP
  • 19
    28-547971 KEY
    KEY
  • 20
    34519 ARM KIT
    357 Alpha/Bravo
    ARM KIT
    357 Alpha/Bravo
  • 20
    8M0060593 ARM KIT, 1.6 Ratio Self Align
    383 Bravo 4V
    ARM KIT, 1.6 Ratio Self Align
    383 Bravo 4V
  • 21
    59340 BALL, Rocker Arm
    BALL, Rocker Arm
  • 22
    11-34516 NUT
    NUT
  • 23
    938-8M0115137 CYLINDER HEAD ASSEMBLY, Cylinder
    357 Alpha/Bravo
    CYLINDER HEAD ASSEMBLY, Cylinder
    357 Alpha/Bravo
  • 23
    938-8M0115139 CYLINDER HEAD ASSEMBLY, Cylinder
    383 Bravo 4V
    CYLINDER HEAD ASSEMBLY, Cylinder
    383 Bravo 4V
  • 24
    16-34522 STUD
    (.003 Oversized) 357 Alpha/Bravo
    STUD
    (.003 Oversized) 357 Alpha/Bravo
  • 24
    16-34521 STUD
    (.013 Oversized) 357 Alpha/Bravo
    STUD
    (.013 Oversized) 357 Alpha/Bravo
  • 24
    8M0060592 Rocker Stud
    383 Bravo 4V
    Rocker Stud
    383 Bravo 4V
  • 25
    27-75611001 GASKET
    GASKET
  • 26
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 27
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 28
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • -
    27-75611A96 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
