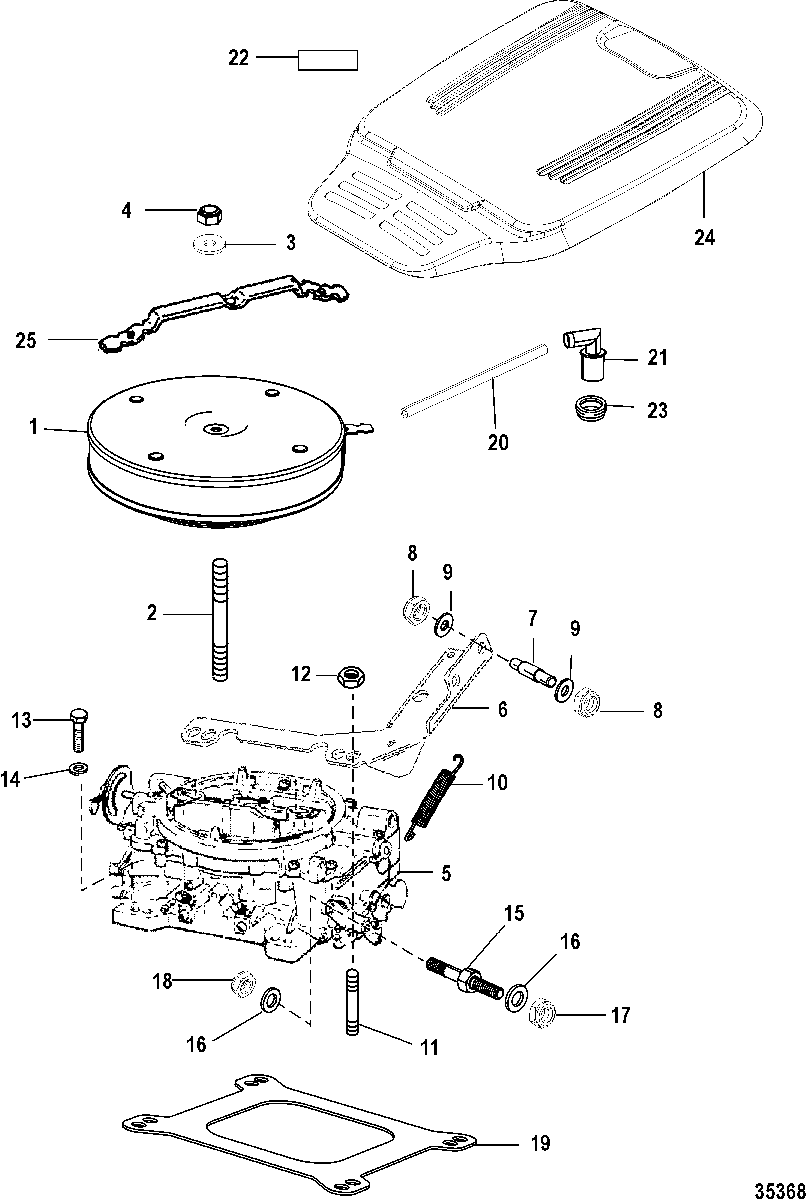

Carburetor and Throttle Linkage для Mercruiser - 357 Mag Bravo 4V 1G400000 & Up
-
№АртикулНазвание
-
1805298A1 FLAME ARRESTORFLAME ARRESTOR
-
216-805296 STUD, (4.50 Inch)STUD, (4.50 Inch)
-
312-86400 WASHERWASHER
-
411-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
53310-8M0047211 CARBURETOR, 4 Barrel (Includes return line)
357 AlphaCARBURETOR, 4 Barrel (Includes return line)
357 Alpha -
53310-8M0047212 CARBURETOR, 4 Barrel (Includes return line)
357/383 BravoCARBURETOR, 4 Barrel (Includes return line)
357/383 Bravo -
6805359T BRACKETBRACKET
-
716-818192 STUDSTUD
-
811-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
912-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
1024-897454 SPRINGSPRING
-
1116-8M0113177 STUD, (.312 x 1.500)STUD, (.312 x 1.500)
-
1211-29250 NUT, (.312-24)NUT, (.312-24)
-
1310-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1413-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
1516-8M0113178 STUD, (.250-28 x 2.00)STUD, (.250-28 x 2.00)
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1711-8267089 NUT, (.250-28)NUT, (.250-28)
-
1811-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
1927-41610 GASKETGASKET
-
2032-8M0086022 HOSE, (16.50 Inches Bulk)HOSE, (16.50 Inches Bulk)
-
2197850T ELBOW, 90 DegreeELBOW, 90 Degree
-
2237-863691A05 DECAL SET, 357 Mag Bravo 4VDECAL SET, 357 Mag Bravo 4V
-
2237-8M0045071 DECAL SET, 357 Alpha 4VDECAL SET, 357 Alpha 4V
-
2237-8M0046634 DECAL SET, 383 Mag Bravo 4V
ORD 8M0073465DECAL SET, 383 Mag Bravo 4V
ORD 8M0073465 -
2323-8M0071559 GROMMETGROMMET
-
248M0103982 COVER, FlameCOVER, Flame
-
25805314 RETAINER, Breather HoseRETAINER, Breather Hose
