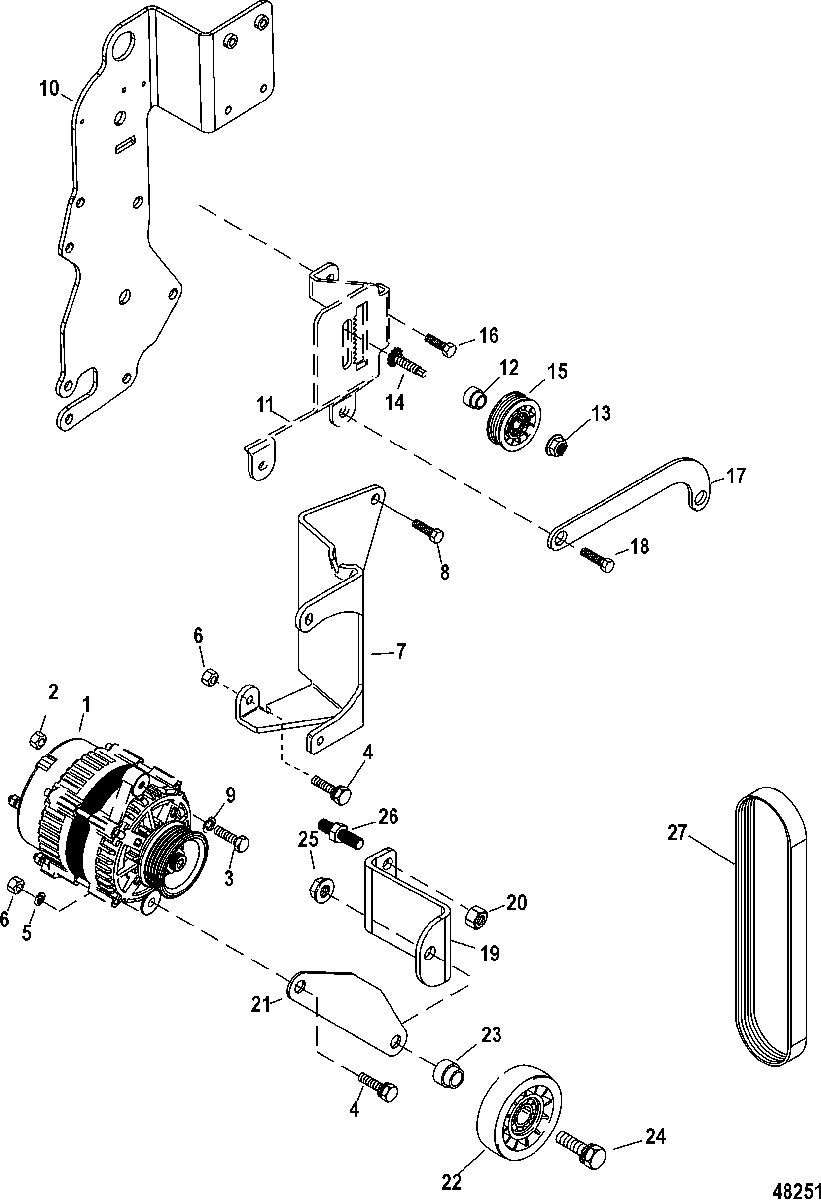

Alternator and Brackets, 383 Mag Bravo 4V для Mercruiser - 357 Mag Bravo 4V 1G400000 & Up
-
№АртикулНазвание
-
1863077T ALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley
(Non Serviceable)ALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley
(Non Serviceable) -
211-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
310-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
410-828213 SCREW, (.312-18 x 1.500) Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange
-
512-57792 WASHERWASHER
-
611-26484 NUT, (.312-18)NUT, (.312-18)
-
7863211T01 BRACKET, Alternator MountingBRACKET, Alternator Mounting
-
810-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
912-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
10865188T01 BRACKETBRACKET
-
11862083T BRACKET, Idler AdjustingBRACKET, Idler Adjusting
-
12865193 BUSHINGBUSHING
-
1311-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
1443-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
15864625T PULLEY, 4.25 Inch Diameter
(Power Steering )PULLEY, 4.25 Inch Diameter
(Power Steering ) -
15807757T PULLEY ASSEMBLY, Idler - Black, 3 Inch Diameter
(Compact Hydralic Steering)PULLEY ASSEMBLY, Idler - Black, 3 Inch Diameter
(Compact Hydralic Steering) -
1610-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
17862082T BRACE, Power Steering BraceBRACE, Power Steering Brace
-
1810-40001188 SCREW, (M10 x 20)SCREW, (M10 x 20)
-
19862084T BRACKET, IdlerBRACKET, Idler
-
2011-32219 NUT, (.375-16)NUT, (.375-16)
-
21862085T BRACE, Idler BracketBRACE, Idler Bracket
-
228M6500024 PULLEYPULLEY
-
23865193 BUSHINGBUSHING
-
2410-56393 SCREW, (.437-20 x 1.75)SCREW, (.437-20 x 1.75)
-
2511-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
2616-860102 STUD, (.375-16 x 1.730)STUD, (.375-16 x 1.730)
-
2757-865615Q03 BELT
383 Mag Bravo 4VBELT
383 Mag Bravo 4V
