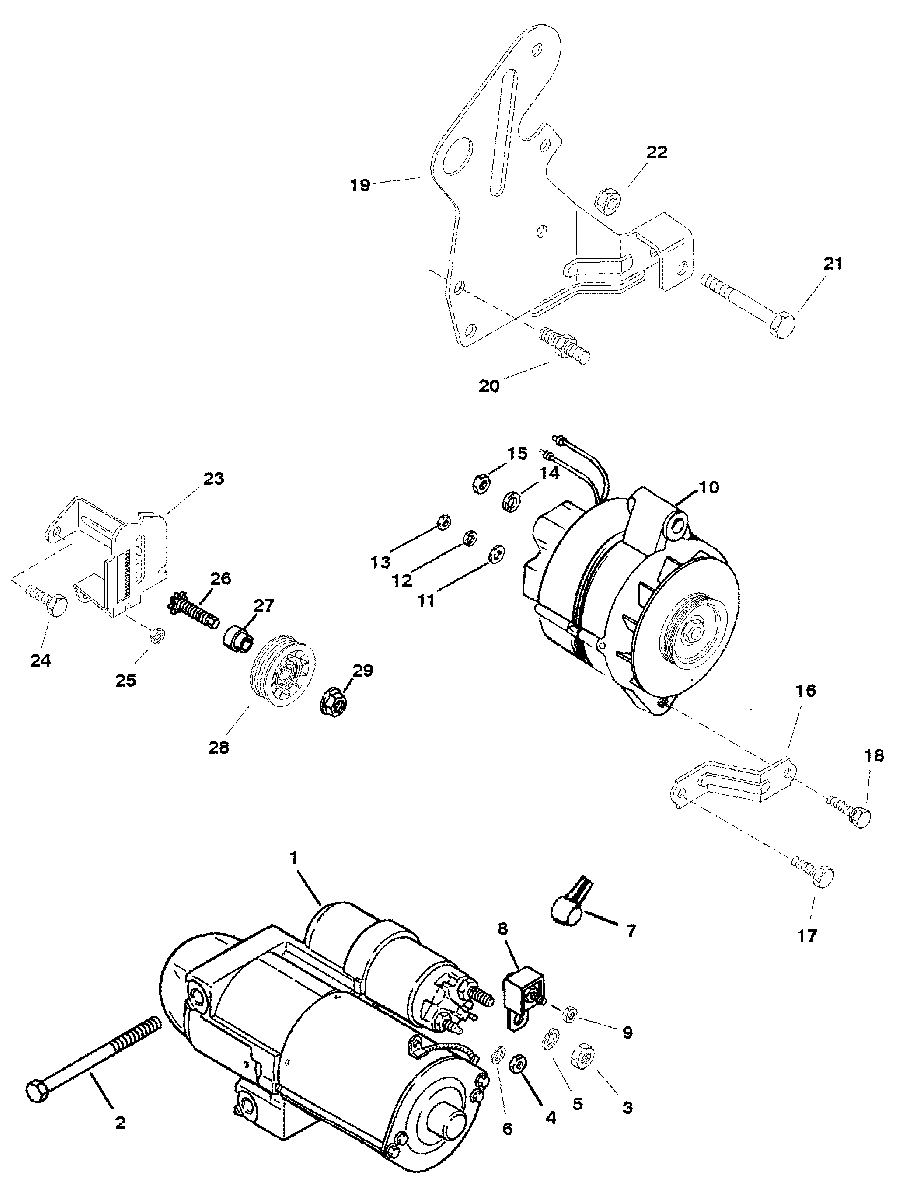

STARTER MOTOR AND ALTERNATOR для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1997 0K001509 AND UP

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR" FOR BREAKDOWN)
    STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR" FOR BREAKDOWN)
  • 2
    10-8053432 SCREW (3/8-16 X 4-3/8 IN.)
    SCREW (3/8-16 X 4-3/8 IN.)
  • 3
    11-806949 NUT (M8-1.5)
    NUT (M8-1.5)
  • 4
    11-400211 NUT (M5-0.8)
    NUT (M5-0.8)
  • 5
    13-39107 LOCKWASHER (5/16 IN.)
    LOCKWASHER (5/16 IN.)
  • 6
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 7
    85-79695T BOOT-INSULATOR
    BOOT-INSULATOR
  • 8
    88-79023A91 FUSE (90 AMP.)
    FUSE (90 AMP.)
  • 9
    11-21825 NUT (1/4-28)
    NUT (1/4-28)
  • 10
    807653T ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
    ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
  • 11
    12-96457 WASHER-PHENOLIC
    WASHER-PHENOLIC
  • 12
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 13
    11-79989 NUT (#10-24)
    NUT (#10-24)
  • 14
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 15
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
  • 16
    807750T BRACE
    BRACE
  • 17
    10-98261 SCREW (3/8-16 X 3/4 IN.)
    SCREW (3/8-16 X 3/4 IN.)
  • 18
    10-29198 SCREW & LOCKWASHER (5/16-18 X 7/8 IN.)
    SCREW & LOCKWASHER (5/16-18 X 7/8 IN.)
  • 19
    860370T BRACKET-ALTERNATOR/POWER STEERING
    BRACKET-ALTERNATOR/POWER STEERING
  • 20
    16-860102 STUD
    STUD
  • 21
    10-56743 SCREW (3/8-24 X 3-1/8 IN.)
    SCREW (3/8-24 X 3-1/8 IN.)
  • 22
    11-23161 NUT (3/8-24)
    NUT (3/8-24)
  • 23
    807767T IDLER BRACKET
    IDLER BRACKET
  • 24
    10-98261 SCREW (3/8-16 X 3/4 IN.)
    SCREW (3/8-16 X 3/4 IN.)
  • 25
    11-29250 NUT (5/16-24)
    NUT (5/16-24)
  • 26
    43-8M0113182 PINION STUD
    PINION STUD
  • 27
    865193 BUSHING
    BUSHING
  • 28
    807757T PULLEY
    PULLEY
  • 29
    11-859135 NUT (7/16-20)
    NUT (7/16-20)
