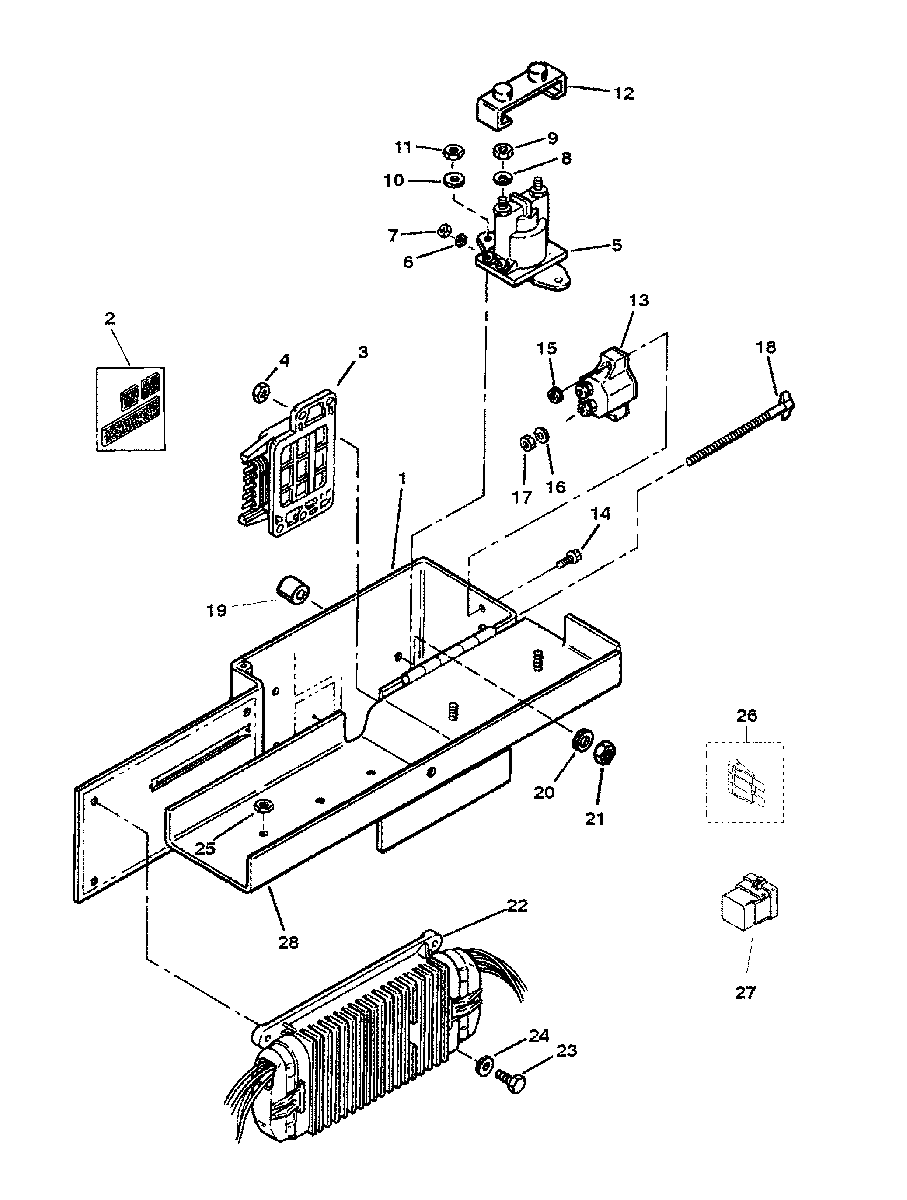

ELECTRICAL BOX AND COMPONENTS для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1997 0K001509 AND UP

  • №
    Артикул
    Название
  • 1
    807323A5 BOX-ELECTRICAL COMPONENTS
    BOX-ELECTRICAL COMPONENTS
  • 2
    806762A1 VELCRO KIT
    VELCRO KIT
  • 3
    806611T MODULE ASSEMBLY-KNOCK
    MODULE ASSEMBLY-KNOCK
  • 4
    11-64015 NUT (1/4-20)
    NUT (1/4-20)
  • 5
    89-96054T SOLENOID ASSEMBLY-STARTER
    SOLENOID ASSEMBLY-STARTER
  • 6
    13-26995 LOCKWASHER (#8)
    LOCKWASHER (#8)
  • 7
    11-26419 NUT (#8-32)
    NUT (#8-32)
  • 8
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 9
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
  • 10
    12-35462 WASHER
    WASHER
  • 11
    11-64015 NUT (1/4-20)
    NUT (1/4-20)
  • 12
    85-97861 INSULATOR-STARTER SOLENOID
    INSULATOR-STARTER SOLENOID
  • 13
    88-11178A01 BREAKER-CIRCUIT (50 AMP)
    BREAKER-CIRCUIT (50 AMP)
  • 14
    10-45862 SCREW (#10-32 X 7/8 IN.)
    SCREW (#10-32 X 7/8 IN.)
  • 15
    11-61356 NUT (#10-32)
    NUT (#10-32)
  • 16
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 17
    11-68219 NUT (#10-32)
    NUT (#10-32)
  • 18
    805615A2 SCREW ASSEMBLY-THUMB
    SCREW ASSEMBLY-THUMB
  • 19
    23-806981 SPACER
    SPACER
  • 20
    12-35462 WASHER
    WASHER
  • 21
    11-64015 NUT (1/4-20)
    NUT (1/4-20)
  • 22
    861086T1 MODULE ASSEMBLY-ECM
    MODULE ASSEMBLY-ECM
  • 23
    10-76596 SCREW (1/4-20 X 1-1/4 IN.)
    SCREW (1/4-20 X 1-1/4 IN.)
  • 24
    12-20533 WASHER
    WASHER
  • 25
    11-805562 NUT (#10-24)
    NUT (#10-24)
  • 26
    88-804642 FUSE (15 AMP)
    FUSE (15 AMP)
  • 26
    862647 FUSE (10 AMP)
    FUSE (10 AMP)
  • 27
    86-865202T RELAY-FUEL PUMP/IGNITION SYSTEM
    RELAY-FUEL PUMP/IGNITION SYSTEM
  • 28
    805439T3 LID-ELECTRICAL BOX
    LID-ELECTRICAL BOX
