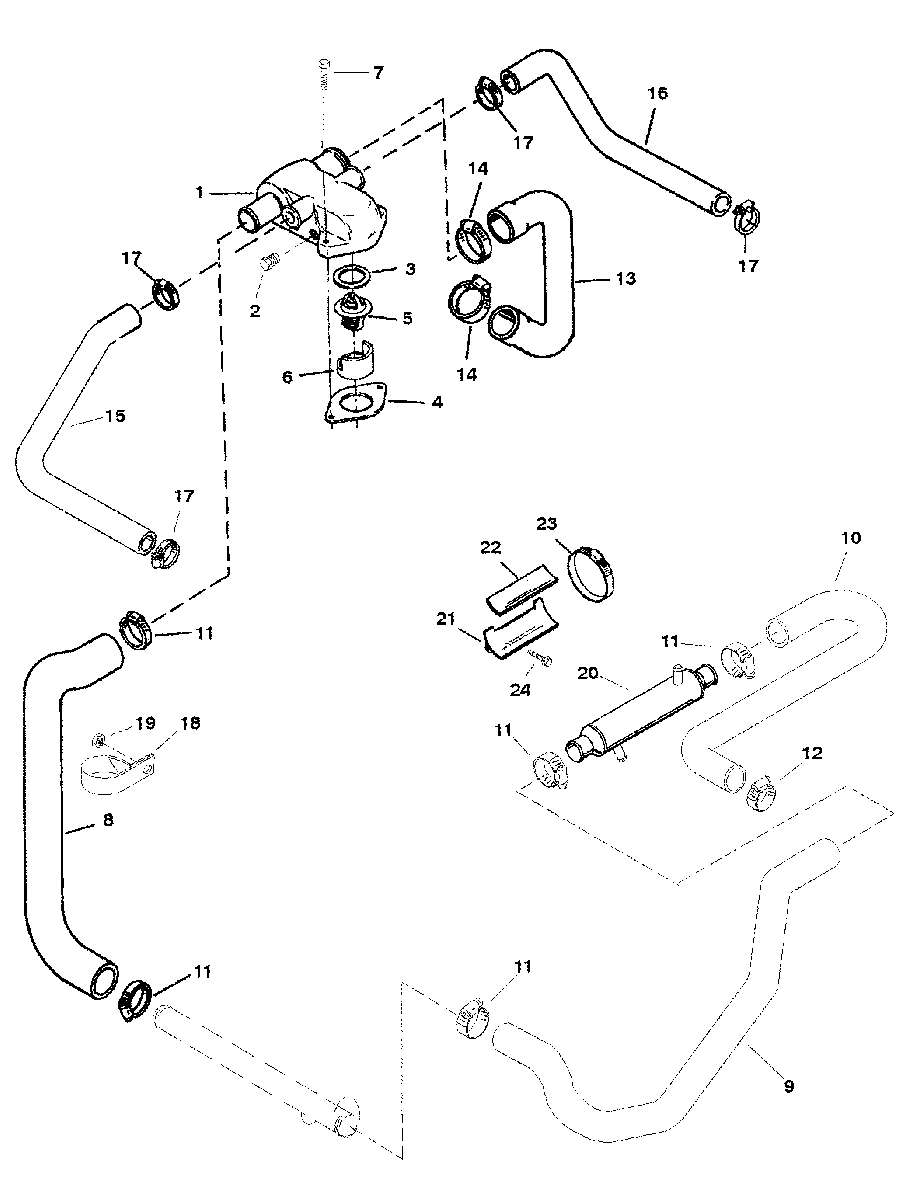

STANDARD COOLING SYSTEM (ALPHA ENGINES) для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1997 0K001509 AND UP

  • №
    Артикул
    Название
  • 1
    806235A1 HOUSING ASSEMBLY-THERMOSTAT
    HOUSING ASSEMBLY-THERMOSTAT
  • 2
    22-32803 PLUG-PIPE (3/8 IN.)
    PLUG-PIPE (3/8 IN.)
  • 3
    27-806871 GASKET-THERMOSTAT
    GASKET-THERMOSTAT
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT (160 DEG.)
    THERMOSTAT (160 DEG.)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113180 SCREW (3/8-16 X 1 IN.)
    SCREW (3/8-16 X 1 IN.)
  • 8
    32-808033 HOSE-THERMOSTAT HOUSING TO FUEL COOLER
    HOSE-THERMOSTAT HOUSING TO FUEL COOLER
  • 9
    32-8600891 HOSE-FUEL COOLER TO POWER STEERING COOLER
    HOSE-FUEL COOLER TO POWER STEERING COOLER
  • 10
    32-807661 HOSE-POWER STEERING COOLER TO TRANSOM
    HOSE-POWER STEERING COOLER TO TRANSOM
  • 11
    54-815504222 CLAMP-HOSE
    CLAMP-HOSE
  • 12
    54-815504212 CLAMP-HOSE
    CLAMP-HOSE
  • 13
    32-861590A05 HOSE-THERMOSTAT HOUSING TO WATER PUMP
    HOSE-THERMOSTAT HOUSING TO WATER PUMP
  • 14
    54-815504232 CLAMP
    CLAMP
  • 15
    32-860144 HOSE
    THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD
    HOSE
    THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD
  • 16
    32-807697 HOSE
    THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLD
    HOSE
    THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLD
  • 17
    54-815504220 CLAMP-HOSE
    CLAMP-HOSE
  • 18
    54-47715 CLIP
    CLIP
  • 19
    11-29250 NUT (5/16-24)
    NUT (5/16-24)
  • 20
    8M0125855 COOLER-POWER STEERING OIL
    COOLER-POWER STEERING OIL
  • 21
    805546A2 BRACKET-TRANSMISSION OIL COOLER
    BRACKET-TRANSMISSION OIL COOLER
  • 22
    772233 PAD
    PAD
  • 23
    54-815504224 CLAMP
    CLAMP
  • 24
    10-816585 SCREW (5/16-18 X 7/8 IN.)
    SCREW (5/16-18 X 7/8 IN.)
  • -
    27-75611A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
