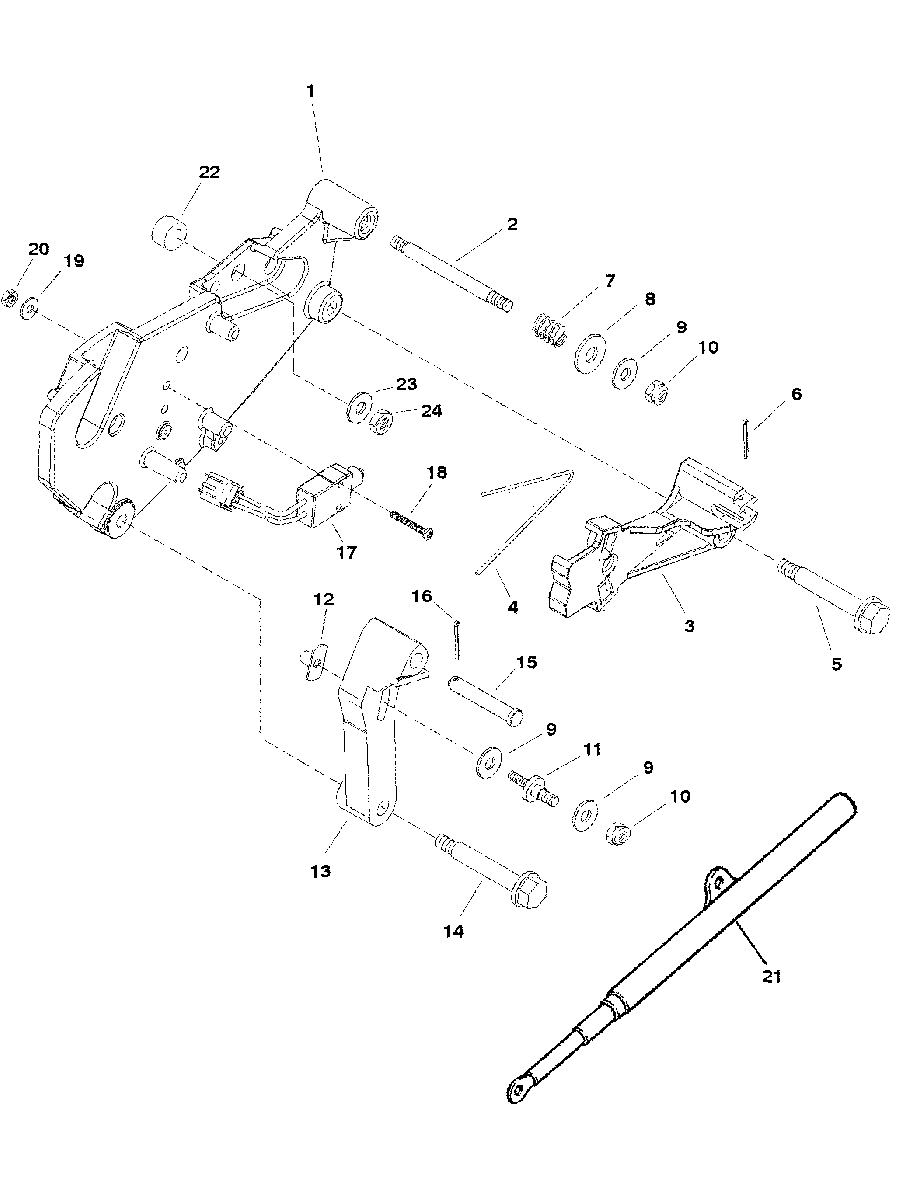

SHIFT BRACKET (ALPHA ENGINES) для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1997 0K001509 AND UP
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLY-SHIFTBRACKET ASSEMBLY-SHIFT
-
2865149A02 STUD (1/4 X 2-7/8 IN.)STUD (1/4 X 2-7/8 IN.)
-
3865433A02 LEVER ASSEMBLY-ACTUATINGLEVER ASSEMBLY-ACTUATING
-
424-862850 SPRINGSPRING
-
510-865148 SCREW-SHOULDER (5/16-18 X 1-7/8 IN.)SCREW-SHOULDER (5/16-18 X 1-7/8 IN.)
-
618-328571 PIN-COTTERPIN-COTTER
-
724-98880 SPRINGSPRING
-
812-56720 WASHERWASHER
-
912-35462 WASHERWASHER
-
1011-8267119 NUTNUT
-
1116-8M0113178 STUDSTUD
-
1211-63341 NUT-TEENUT-TEE
-
1313898T06 LEVER ASSEMBLY-SHIFTLEVER ASSEMBLY-SHIFT
-
1410-865148 SCREW-SHOULDER (5/16-18 X 1-7/8 IN.)SCREW-SHOULDER (5/16-18 X 1-7/8 IN.)
-
1517-814001 PIN-CLEVISPIN-CLEVIS
-
1618-210711 PIN-COTTERPIN-COTTER
-
1787-8M0052936 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1810-860077 SCREW (1 IN.)SCREW (1 IN.)
-
1912-11303 WASHERWASHER
-
2011-F1669 NUT (#6-32)NUT (#6-32)
-
21813995A1 GUIDE ASSEMBLY-SPRINGGUIDE ASSEMBLY-SPRING
-
2223-92152T SPACERSPACER
-
2312-35462 WASHERWASHER
-
2411-64015 NUT (1/4-20)NUT (1/4-20)
