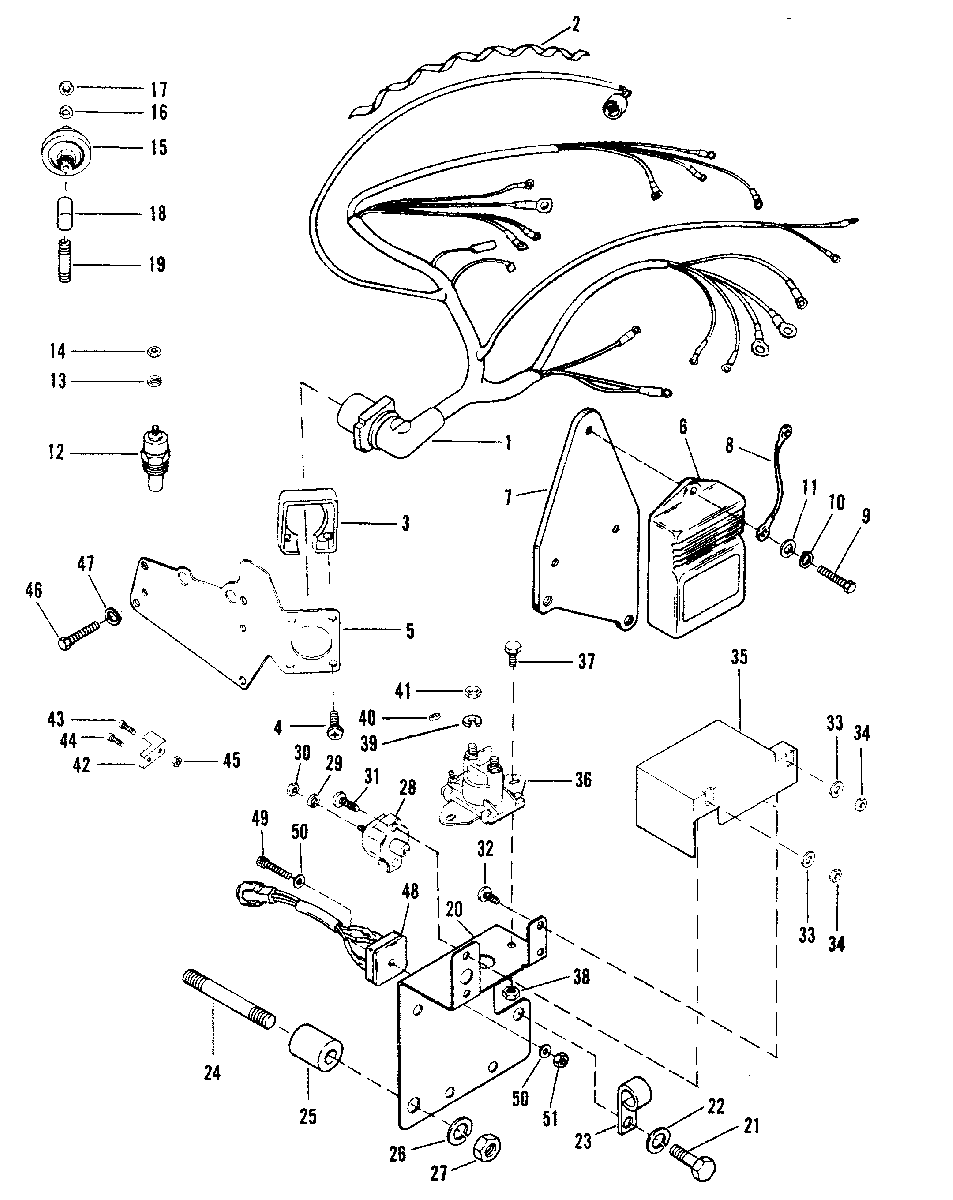

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 320 (EFI) GM 350 V-8 1988-1989 0B157603 THRU 0C622418

  • №
    Артикул
    Название
  • 1
    84-98423A13 WIRING HARNESS (ALPHA I)
    WIRING HARNESS (ALPHA I)
  • 1
    84-98423A15 WIRING HARNESS (BRAVO)
    WIRING HARNESS (BRAVO)
  • 2
    32-77690 WRAPPING, PLASTIC (1/4")
    WRAPPING, PLASTIC (1/4")
  • 3
    26079A2 PLATE, WIRING HARNESS
    PLATE, WIRING HARNESS
  • 4
    10-15001 SCREW, PLATE (3/4")
    SCREW, PLATE (3/4")
  • 5
    98493A2 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 6
    15899A2 IGNITION AMPLIFIER (W/84-15275A2 HARNESS)
    IGNITION AMPLIFIER (W/84-15275A2 HARNESS)
  • 7
    13406 BRACKET, IGNITION AMPLIFIER
    BRACKET, IGNITION AMPLIFIER
  • 8
    84-60871A15 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 9
    10-28635 SCREW, IGNITION AMPLIFIER
    SCREW, IGNITION AMPLIFIER
  • 10
    13-26992 LOCKWASHER
    LOCKWASHER
  • 11
    12-20533 WASHER
    WASHER
  • 12
    806490T WATER TEMPERATURE SENDER
    WATER TEMPERATURE SENDER
  • 12
    49734 WATER TEMPERATURE SENDER (DUAL)
    WATER TEMPERATURE SENDER (DUAL)
  • 13
    13-26996 LOCKWASHER, WATER TEMPERATURE
    SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMPERATURE
    SENDER TERMINAL (#10)
  • 14
    11-68219 NUT, WATER TEMPERATURE
    SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE
    SENDER TERMINAL (#10)
  • 15
    8M0068784 OIL PRESSURE SENDER
    OIL PRESSURE SENDER
  • 15
    37293T OIL PRESSURE SENDER (DUAL)
    OIL PRESSURE SENDER (DUAL)
  • 16
    13-26996 LOCKWASHER, OIL PRESSURE
    SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE
    SENDER TERMINAL (#10)
  • 17
    11-68219 NUT, OIL PRESSURE
    SENDER TERMINAL (#10)
    NUT, OIL PRESSURE
    SENDER TERMINAL (#10)
  • 18
    22-46932 ELBOW, OIL PRESSURE SENDER
    ELBOW, OIL PRESSURE SENDER
  • 19
    22-885153 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 20
    14464 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 21
    10-34353 SCREW, MOUNTING BRACKET
    SCREW, MOUNTING BRACKET
  • 22
    13-35048 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
  • 23
    54-78945 CLAMP, BRACKET SCREW
    CLAMP, BRACKET SCREW
  • 24
    16-245851 STUD, MOUNTING BRACKET
    STUD, MOUNTING BRACKET
  • 25
    23-15895 SPACER, MOUNTING BRACKET STUD
    SPACER, MOUNTING BRACKET STUD
  • 26
    13-35048 LOCKWASHER, MOUNTING BRACKET STUD
    LOCKWASHER, MOUNTING BRACKET STUD
  • 27
    11-46335 NUT, MOUNTING BRACKET STUD
    NUT, MOUNTING BRACKET STUD
  • 28
    88-11178A01 CIRCUIT BREAKER (50 AMP)
    CIRCUIT BREAKER (50 AMP)
  • 29
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 30
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • 31
    10-45862 SCREW, CIRCUIT BREAKER (7/8")
    SCREW, CIRCUIT BREAKER (7/8")
  • 32
    10-71405 SCREW, INSULATOR (3/8")
    SCREW, INSULATOR (3/8")
  • 33
    12-56681 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 34
    11-46438 NUT, INSULATOR SCREW
    NUT, INSULATOR SCREW
  • 35
    85-96819T INSULATOR, CIRCUIT BREAKER
    INSULATOR, CIRCUIT BREAKER
  • 36
    89-96054T STARTER SOLENOID
    STARTER SOLENOID
  • 37
    10-96138 SCREW, STARTER SOLENOID (5/8")
    SCREW, STARTER SOLENOID (5/8")
  • 38
    11-35888 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 39
    13-26992 LOCKWASHER, STARTER SOLENOID TERMINAL
    LOCKWASHER, STARTER SOLENOID TERMINAL
  • 40
    11-26419 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 41
    11-94330 NUT, STARTER SOLENOID TERMINAL (1/4-20)
    NUT, STARTER SOLENOID TERMINAL (1/4-20)
  • 42
    86-45915 TERMINAL BLOCK
    ALPHA I ONLY
    TERMINAL BLOCK
    ALPHA I ONLY
  • 43
    10-62568 SCREW, TERMINAL BLOCK LEADS
    ALPHA I ONLY
    SCREW, TERMINAL BLOCK LEADS
    ALPHA I ONLY
  • 44
    10-87926 SCREW, TERMINAL BLOCK
    ALPHA I ONLY
    SCREW, TERMINAL BLOCK
    ALPHA I ONLY
  • 45
    11-46438 NUT, TERMINAL BLOCK SCREW
    ALPHA I ONLY
    NUT, TERMINAL BLOCK SCREW
    ALPHA I ONLY
  • 46
    10-49668 SCREW, BRACKET AND SHIFT BRACKET (3/4")
    SCREW, BRACKET AND SHIFT BRACKET (3/4")
  • 46
    10-98253 SCREW, BRACKET AND SHIFT BRACET (1/2")
    SCREW, BRACKET AND SHIFT BRACET (1/2")
  • 47
    13-26992 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
  • 48
    83-14744 RECTIFIER/RELAY
    RECTIFIER/RELAY
  • 49
    10-90028 SCREW
    SCREW
  • 50
    12-89302 WASHER
    WASHER
  • 51
    11-8267086 NUT
    NUT
