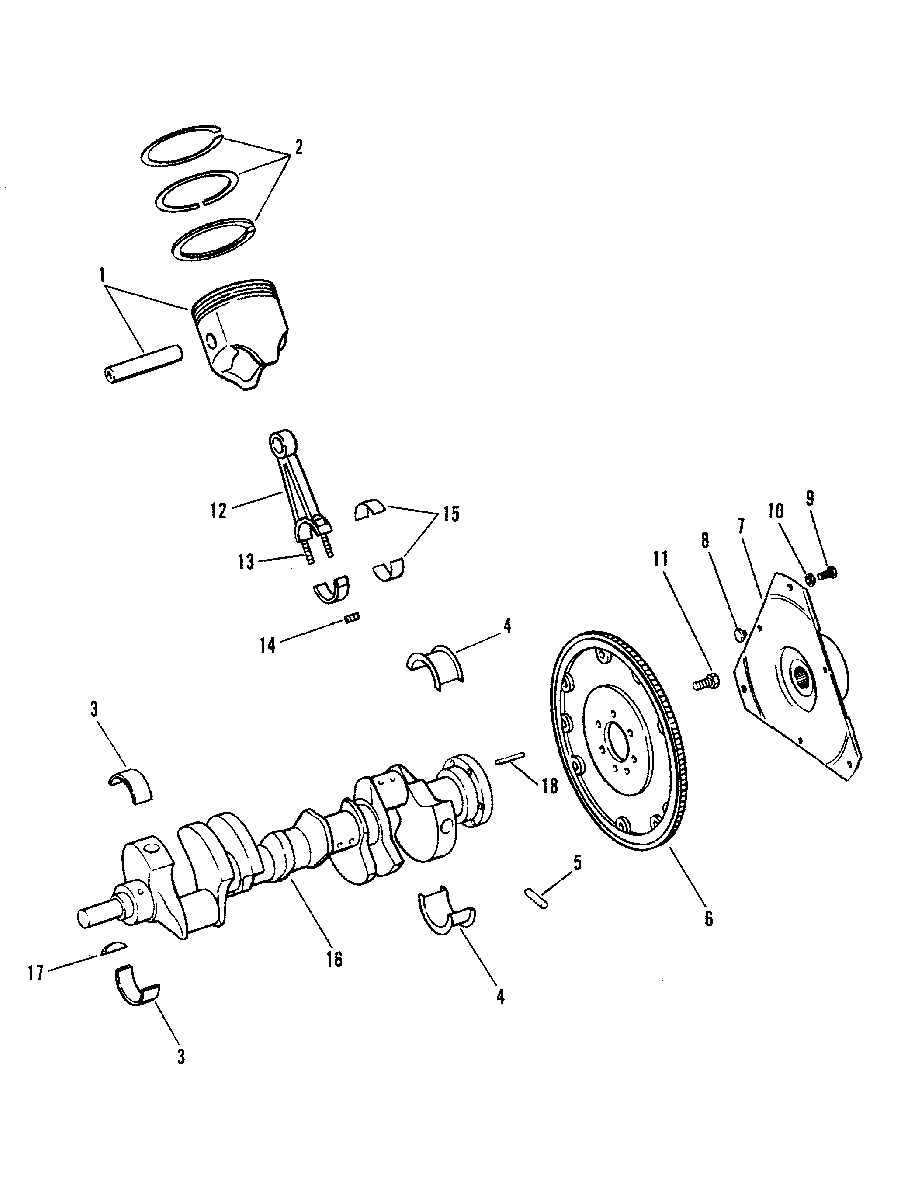

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 320 (EFI) GM 350 V-8 1988-1989 0B157603 THRU 0C622418

№

Артикул

Название
1

735-9846 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)

PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
1

735-9847 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)

PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
2

39-17464 RING, PISTON - 8 SETS (STANDARD)

RING, PISTON - 8 SETS (STANDARD)
2

39-17465 RING, PISTON - 8 SETS (.030 O.S.)

RING, PISTON - 8 SETS (.030 O.S.)
3/4

23-818465 BEARING SET, CRANKSHAFT (STD.)

BEARING SET, CRANKSHAFT (STD.)
3/4

23-818467 BEARING SET, CRANKSHAFT (.010 U.S.)

BEARING SET, CRANKSHAFT (.010 U.S.)
3/4

23-818468 BEARING SET, CRANKSHAFT (.020 U.S.)

BEARING SET, CRANKSHAFT (.020 U.S.)
5

17-843378 PIN, DOWEL - REAR BEARING CAP (1/4" DIA.)

PIN, DOWEL - REAR BEARING CAP (1/4" DIA.)
6

222-8M0047213 FLYWHEEL (14" DIA.)

FLYWHEEL (14" DIA.)
7

18643A7 COUPLING ASSEMBLY

COUPLING ASSEMBLY
8

269011 RUBBER BUMPER - (OLD DESIGN)

RUBBER BUMPER - (OLD DESIGN)
8

18644 RUBBER BUMPER - (NEW DESIGN)

RUBBER BUMPER - (NEW DESIGN)
9

10-14883 SCREW, COUPLING

SCREW, COUPLING
10

12-13510 WASHER, COUPLING SCREW

WASHER, COUPLING SCREW
11

10-845757 SCREW, FLYWHEEL TO CRANKSHAFT

SCREW, FLYWHEEL TO CRANKSHAFT
12

614-5951 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
13

10-85802 BOLT, CONNECTING ROD CAP

BOLT, CONNECTING ROD CAP
14

11-37493 NUT, CONNECTING ROD CAP BOLT

NUT, CONNECTING ROD CAP BOLT
15

23-85701 BEARING SET, CONNECTING ROD (STD.)

BEARING SET, CONNECTING ROD (STD.)
15

23-85704 BEARING SET, CONNECTING ROD (.010 U.S.)

BEARING SET, CONNECTING ROD (.010 U.S.)
15

23-85705 BEARING SET, CONNECTING ROD (.020 U.S.)

BEARING SET, CONNECTING ROD (.020 U.S.)
16

429-9526 CRANKSHAFT

CRANKSHAFT
17

28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER

KEY, CRANKSHAFT PULLEY AND BALANCER
18

17-43504 DOWEL PIN, CRANKSHAFT

DOWEL PIN, CRANKSHAFT
