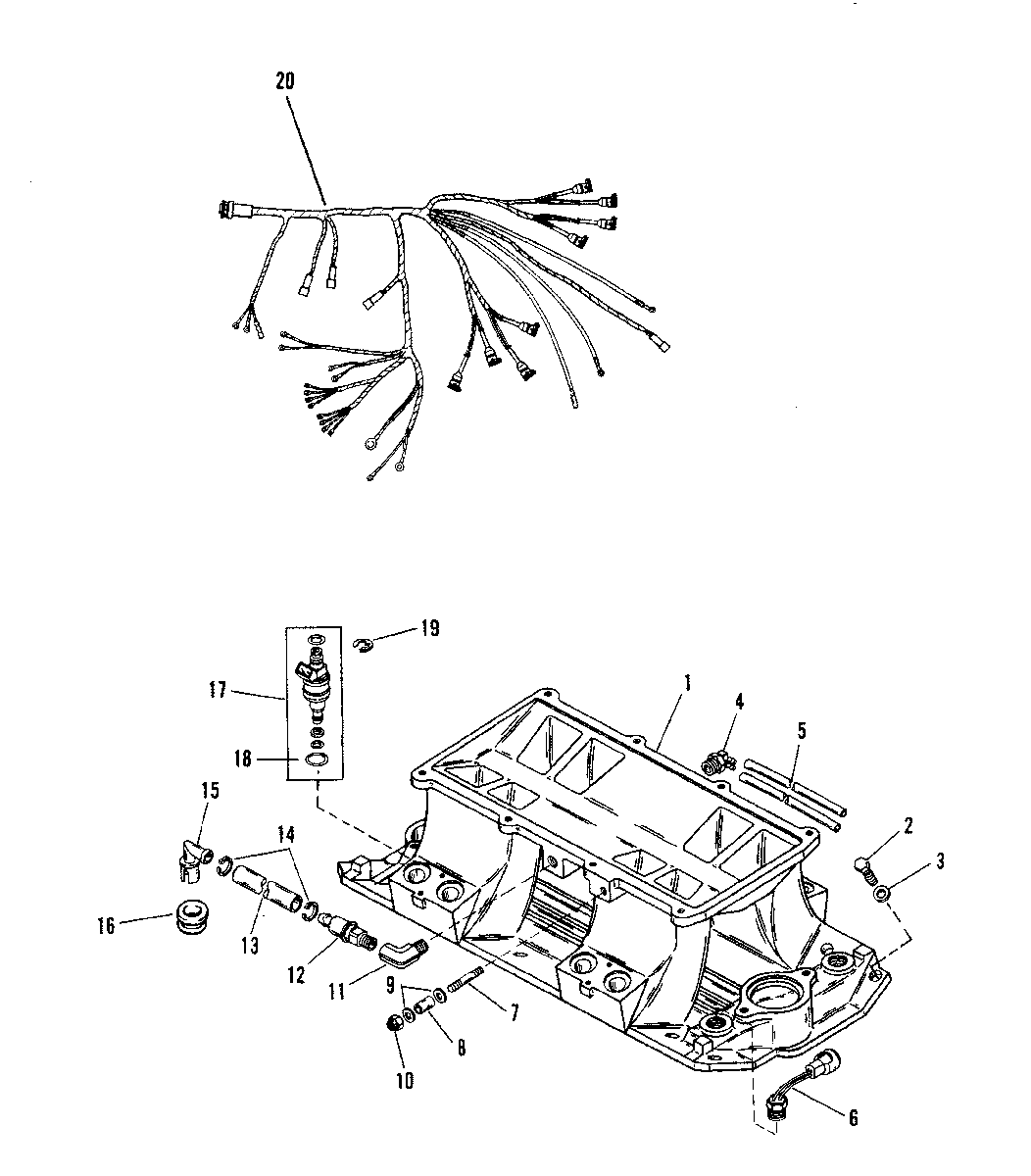

INTAKE MANIFOLD/FUEL INJECTORS для Mercruiser - 320 (EFI) GM 350 V-8 1988-1989 0B157603 THRU 0C622418

  • №
    Артикул
    Название
  • 1
    165421 INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    10-37612 SCREW, INTAKE MANIFOLD (1-1/4")
    SCREW, INTAKE MANIFOLD (1-1/4")
  • 2
    10-26487 SCREW, INTAKE MANIFOLD (1-1/8")
    SCREW, INTAKE MANIFOLD (1-1/8")
  • 2
    10-68101 SCREW, INTAKE MANIFOLD (1-3/8")
    SCREW, INTAKE MANIFOLD (1-3/8")
  • 3
    12-856774 WASHER, INTAKE MANIFOLD SCREW
    WASHER, INTAKE MANIFOLD SCREW
  • 4
    22-36382A1 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 5
    32-6628570 HOSE
    HOSE
  • 6
    87-14172A2 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 7
    16-728091 STUD
    STUD
  • 8
    21866 SPACER
    SPACER
  • 9
    12-69056 WASHER
    WASHER
  • 10
    11-826709109 NUT
    NUT
  • 11
    22-46982 ELBOW (90 DEGREES)
    ELBOW (90 DEGREES)
  • 12
    13712 PCV VALVE
    PCV VALVE
  • 13
    32-8M0062669 HOSE
    HOSE
  • 14
    54-53101 CLAMP
    CLAMP
  • 15
    97850T ELBOW, BREATHER (90 DEGREES)
    ELBOW, BREATHER (90 DEGREES)
  • 16
    23-8M0071559 GROMMET
    GROMMET
  • 17
    13746 FUEL INJECTOR
    FUEL INJECTOR
  • 18
    25-45711 "O" RING, FUEL INJECTOR
    "O" RING, FUEL INJECTOR
  • 19
    53-90916 "E" RING, FUEL INJECTOR
    "E" RING, FUEL INJECTOR
  • 20
    84-13793A4 WIRING HARNESS, INJECTORS
    WIRING HARNESS, INJECTORS
