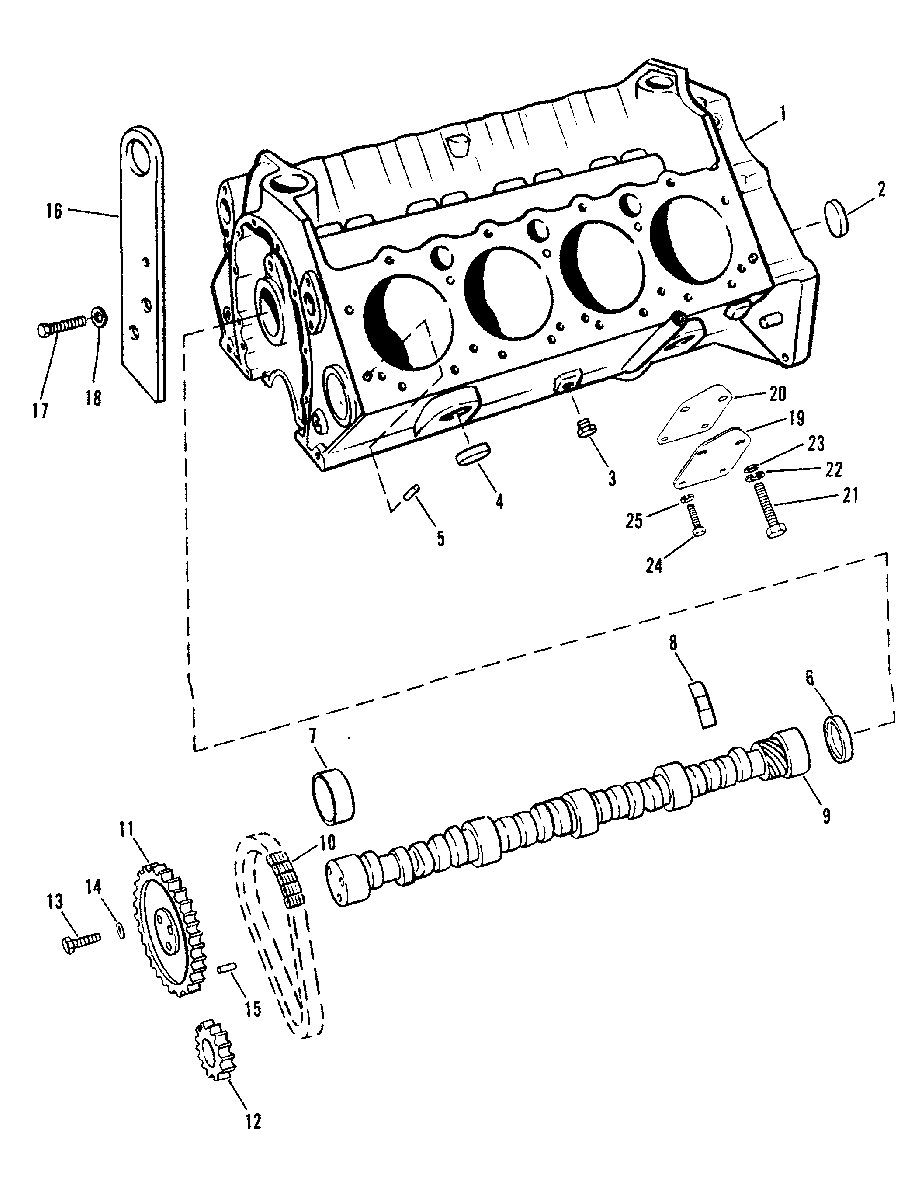

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 320 (EFI) GM 350 V-8 1988-1989 0B157603 THRU 0C622418

  • №
    Артикул
    Название
  • 1
    841-9845 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    22-32561 PLUG, EXPANSION - CYLINDER BLOCK
    PLUG, EXPANSION - CYLINDER BLOCK
  • 3
    22-16951Q1 DRAIN COCK, CYLINDER BLOCK
    DRAIN COCK, CYLINDER BLOCK
  • 4
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1-5/8" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1-5/8" DIA.)
  • 5
    17-35465 PIN, DOWEL - BLOCK TO HEAD (5/16" DIA.)
    PIN, DOWEL - BLOCK TO HEAD (5/16" DIA.)
  • 6
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 7
    23-85674 BEARING UNIT, CAMSHAFT (SET)
    BEARING UNIT, CAMSHAFT (SET)
  • 8
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 9
    431-59521 CAMSHAFT
    CAMSHAFT
  • 10
    17161T CHAIN, CAMSHAFT TIMING
    CHAIN, CAMSHAFT TIMING
  • 11
    43-17159 SPROCKET, CAMSHAFT
    SPROCKET, CAMSHAFT
  • 12
    43-17160 SPROCKET, CAMSHAFT TIMING
    SPROCKET, CAMSHAFT TIMING
  • 13
    10-34505 BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
    BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
  • 14
    12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT
    WASHER, CAMSHAFT TIMING SPROCKET BOLT
  • 15
    17-843378 PIN, DOWEL - CAMSHAFT SPROCKET (1/4" DIA.)
    PIN, DOWEL - CAMSHAFT SPROCKET (1/4" DIA.)
  • 16
    13405 LIFTING EYE
    LIFTING EYE
  • 17
    10-34354 SCREW, LIFTING EYE
    SCREW, LIFTING EYE
  • 18
    13-35048 LOCKWASHER
    LOCKWASHER
  • 19
    14069 PLATE, FUEL PUMP BLOCK OFF
    PLATE, FUEL PUMP BLOCK OFF
  • 20
    27-14613 GASKET, PLATE
    GASKET, PLATE
  • 21
    10-98261 SCREW, PLATE (UPPER)
    SCREW, PLATE (UPPER)
  • 22
    13-35048 LOCKWASHER, PLATE SCREW
    LOCKWASHER, PLATE SCREW
  • 23
    12-20553 WASHER, PLATE SCREW
    WASHER, PLATE SCREW
  • 24
    10-28635 SCREW, PLATE (LOWER)
    SCREW, PLATE (LOWER)
  • 25
    13-26992 LOCKWASHER, PLATE
    LOCKWASHER, PLATE
  • 26
    27-13745A88 GASKET SET
    GASKET SET
  • 27
    16558A1 MARINE 320 SHORT BLOCK
    MARINE 320 SHORT BLOCK
