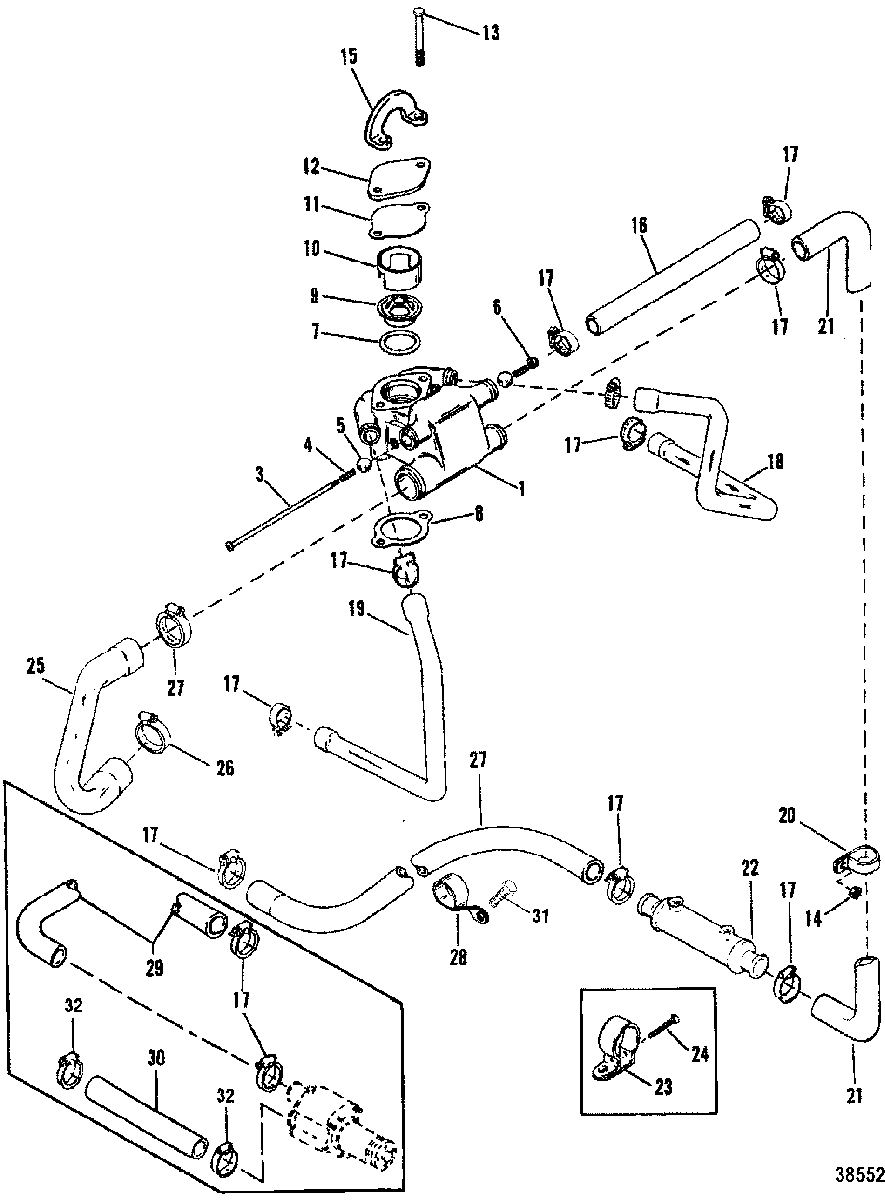

STANDARD COOLING SYSTEM(DESIGN II) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444

  • №
    Артикул
    Название
  • 1
    16413A9 HOUSING ASSEMBLY, Thermostat
    (USE W/O CHECK BALLS)
    HOUSING ASSEMBLY, Thermostat
    (USE W/O CHECK BALLS)
  • 1
    16413A3 HOUSING ASSEMBLY, Thermostat
    USE WITH CHECK BALLS REF. #5
    HOUSING ASSEMBLY, Thermostat
    USE WITH CHECK BALLS REF. #5
  • 3
    10-17989 SCREW, (#10-32 x 8.600)
    USE WITH CHECK BALLS REF. #5
    SCREW, (#10-32 x 8.600)
    USE WITH CHECK BALLS REF. #5
  • 4
    24-75533 SPRING
    USE WITH CHECK BALLS REF. #5
    SPRING
    USE WITH CHECK BALLS REF. #5
  • 5
    30-98475 BALL, Nylon
    USE WITH CHECK BALLS REF. #5
    BALL, Nylon
    USE WITH CHECK BALLS REF. #5
  • 6
    11-826709106 NUT, (#10-32)
    USE WITH CHECK BALLS REF. #5
    NUT, (#10-32)
    USE WITH CHECK BALLS REF. #5
  • 7
    25-30224 O-RING, (1.859 x .139)
    O-RING, (1.859 x .139)
  • 8
    27-530451 GASKET
    GASKET
  • 9
    8M0089715 THERMOSTAT
    (140 DEGREES)
    THERMOSTAT
    (140 DEGREES)
  • 9
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    BODENSEE
    THERMOSTAT, 71A°C (160A°F)
    BODENSEE
  • 10
    23-806922 SLEEVE
    SLEEVE
  • 11
    27-331792 GASKET
    GASKET
  • 12
    17494A1 COVER KIT
    COVER KIT
  • 13
    10-60410 SCREW, (.375-16 x 4.250)
    SCREW, (.375-16 x 4.250)
  • 14
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 15
    12552 LIFTING EYE
    LIFTING EYE
  • 16
    32-8M0062614 HOSE, (48.00 Inches Bulk)
    (STARBOARD/PORT) (ALPHA ONLY) (USE WITH CAST IRON EXHAUST ELBOW)
    HOSE, (48.00 Inches Bulk)
    (STARBOARD/PORT) (ALPHA ONLY) (USE WITH CAST IRON EXHAUST ELBOW)
  • 16
    32-8M0062614 HOSE, (48.00 Inches Bulk)
    (STARBOARD) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW)
    HOSE, (48.00 Inches Bulk)
    (STARBOARD) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW)
  • 16
    32-817435 HOSE
    (PORT) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW)
    HOSE
    (PORT) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW)
  • 17
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 18
    32-160211 HOSE (PORT)
    HOSE (PORT)
  • 19
    32-871171 HOSE (STARBOARD)
    HOSE (STARBOARD)
  • 20
    54-47715 CLIP
    CLIP
  • 21
    32-16012 HOSE
    HOSE
  • 22
    99356A2 COOLER ASSEMBLY
    COOLER ASSEMBLY
  • 23
    65970T1 BRACKET
    BRACKET
  • 24
    10-41408 SCREW, (#10-32 x 1.50)
    SCREW, (#10-32 x 1.50)
  • 25
    32-861590A05 HOSE
    HOSE
  • 26
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 27
    32-96246A4 HOSE
    ALPHA
    HOSE
    ALPHA
  • 28
    54-64489 CLAMP
    ALPHA
    CLAMP
    ALPHA
  • 29
    32-887952 HOSE
    BRAVO
    HOSE
    BRAVO
  • 30
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    BRAVO
    HOSE, (96.00 Inches Bulk)
    BRAVO
  • 31
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 32
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 1
    46-72774A32 PUMP ASSEMBLY, Sea Water - Complete
    PUMP ASSEMBLY, Sea Water - Complete
  • 2
    46-807151A14 BODY/IMPELLER KIT
    BODY/IMPELLER KIT
  • 3
    87631A4 COVER KIT
    COVER KIT
  • 4
    10-73275 SCREW, (.312-18 x 2.88)
    SCREW, (.312-18 x 2.88)
  • 4
    10-52743 SCREW, (.312-18 x 3.750)
    SCREW, (.312-18 x 3.750)
  • 5
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 6
    27-8052151 GASKET
    GASKET
  • 7
    94916 WEAR PLATE
    WEAR PLATE
  • 8
    27-94914 GASKET
    GASKET
  • 9
    19-59504 PLUG
    PLUG
  • 10
    47-59362T1 IMPELLER
    IMPELLER
  • NS
    28-8M0032837 KEY
    KEY
  • 11
    94576 WEAR PLATE
    WEAR PLATE
  • 12
    25-94288 QUAD RING
    QUAD RING
  • 13
    46-94913A1 HOUSING ASSEMBLY, Water Pump
    HOUSING ASSEMBLY, Water Pump
  • 14
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 15
    30-72961 BEARING, Ball
    BEARING, Ball
  • 16
    59501A1 SHAFT
    SHAFT
  • 17
    53-23720 RING, Retaining
    RING, Retaining
  • 18
    26-72785 SEAL
    SEAL
  • 19
    47530 HUB
    HUB
  • 20
    73798A1 PULLEY
    PULLEY
  • 21
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 22
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 23
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 24
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 25
    89535T BRACKET
    BRACKET
  • 26
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 27
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 28
    12-34714 WASHER
    WASHER
  • 29
    89609 BRACE
    BRACE
  • 30
    10-26487 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 31
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 32
    12-34714 WASHER
    WASHER
  • 33
    10-35786 SCREW, (.375-24 x 1.00)
    SCREW, (.375-24 x 1.00)
  • 34
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 35
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 36
    22-328022 PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
    PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
  • 37
    57-74271Q V BELT, (35.125 In) (35 IN.)
    V BELT, (35.125 In) (35 IN.)
  • 38
    32-88795 HOSE
    HOSE
  • 39
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
