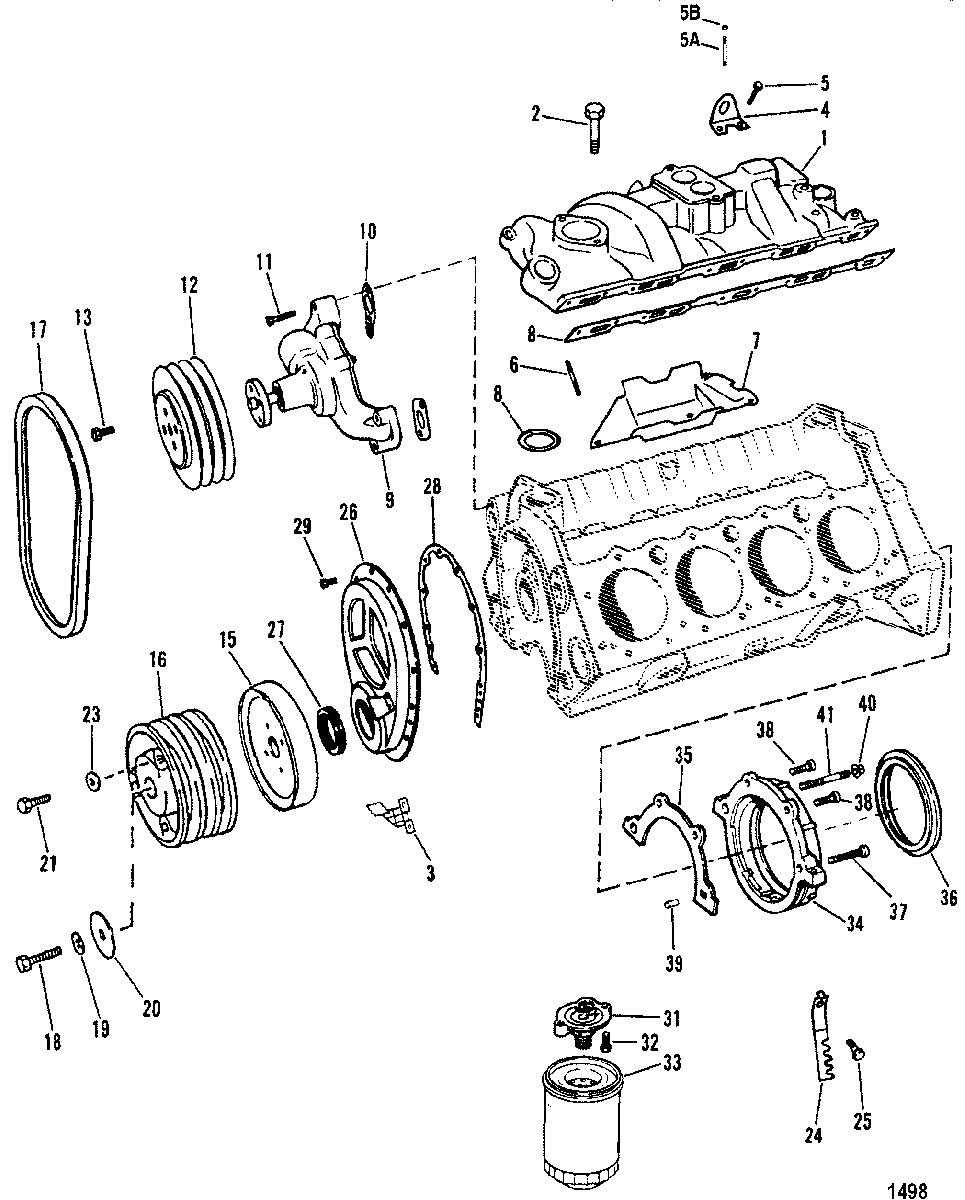

INTAKE MANIFOLD AND FRONT COVER(DESIGN II) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444

  • №
    Артикул
    Название
  • 1
    17618T MANIFOLD, Intake
    (4 BARREL)
    MANIFOLD, Intake
    (4 BARREL)
  • 1
    17619 MANIFOLD, Intake
    (2 BARREL)
    MANIFOLD, Intake
    (2 BARREL)
  • 1
    17620 MANIFOLD, Intake
    (4 BARREL - HI-RISE)
    MANIFOLD, Intake
    (4 BARREL - HI-RISE)
  • 2
    10-806681 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 2
    10-802655 BOLT, (3/8-16 x 1.25) (3/8-16 X 1-1/4 IN.)
    BOLT, (3/8-16 x 1.25) (3/8-16 X 1-1/4 IN.)
  • 3
    75435A1 POINTER
    POINTER
  • 4
    54-47512 LIFTING EYE
    LIFTING EYE
  • 5
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 5A
    16-806250 STUD
    STUD
  • 5B
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 6
    N.S.S. Not Sold Separate, STUD (GM#3959544)
    Not Sold Separate, STUD (GM#3959544)
  • 7
    72647 GUARD
    GUARD
  • 8
    27-17145 GASKET SET
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
    GASKET SET
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
  • 9
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 10
    27-34897 GASKET
    GASKET
  • 11
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 11
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 11
    10-52200 SCREW, (1.625 In.) (1-1/2 IN.)
    SCREW, (1.625 In.) (1-1/2 IN.)
  • 12
    15120T PULLEY, (5.5 In. Diameter) (5-1/2 IN. DIA.)
    PULLEY, (5.5 In. Diameter) (5-1/2 IN. DIA.)
  • 12
    19692T01 PULLEY, (7 In. Diameter) (7 IN. DIA.)
    PULLEY, (7 In. Diameter) (7 IN. DIA.)
  • 13
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 15
    75420 BALANCER
    BALANCER
  • 16
    90081A1 PULLEY
    (See Note)
    PULLEY
    (See Note)
  • 17
    57-93658Q BELT, (44 Inch)
    (44 IN. - USE WITH 5-1/2 IN. DIA. REF. #12)
    BELT, (44 Inch)
    (44 IN. - USE WITH 5-1/2 IN. DIA. REF. #12)
  • 17
    57-48120Q1 V BELT, (46 Inch)
    (46 IN. - USE WITH 7 IN. DIA. REF. #12)
    V BELT, (46 Inch)
    (46 IN. - USE WITH 7 IN. DIA. REF. #12)
  • 18
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 19
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 20
    12-35332001 WASHER
    WASHER
  • 21
    10-53833 BOLT, (.375-24 x 2.00)
    BOLT, (.375-24 x 2.00)
  • 23
    12-34714 WASHER
    WASHER
  • 24
    35365 SUPPORT
    USE WHERE APPLICABLE
    SUPPORT
    USE WHERE APPLICABLE
  • 25
    10-8M0040582 SCREW
    USE WHERE APPLICABLE
    SCREW
    USE WHERE APPLICABLE
  • 26
    8M0127828 COVER
    COVER
  • 27
    26-97335 SEAL, Oil
    SEAL, Oil
  • 28
    27-14250 GASKET
    GASKET
  • 29
    10-8M0040582 SCREW
    SCREW
  • 31
    71920 VALVE ASSEMBLY, Filter
    W/O REMOTE OIL FILTER
    VALVE ASSEMBLY, Filter
    W/O REMOTE OIL FILTER
  • 32
    10-54786 SCREW, (.312-18 x 1.250)
    W/O REMOTE OIL FILTER
    SCREW, (.312-18 x 1.250)
    W/O REMOTE OIL FILTER
  • 33
    35-866340Q03 FILTER, Oil
    W/O REMOTE OIL FILTER
    FILTER, Oil
    W/O REMOTE OIL FILTER
  • 34
    14239 RETAINER, Oil Seal (REAR)
    RETAINER, Oil Seal (REAR)
  • 35
    27-881715 GASKET
    GASKET
  • 36
    26-8M0077606 SEAL, Oil (REAR)
    SEAL, Oil (REAR)
  • 37
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 38
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 39
    17-14263 PIN, Dowel
    PIN, Dowel
  • 40
    11-11996 NUT
    NUT
  • 41
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • 42
    10-49011 SET SCREW, (.312-18 x .312)
    SET SCREW, (.312-18 x .312)
