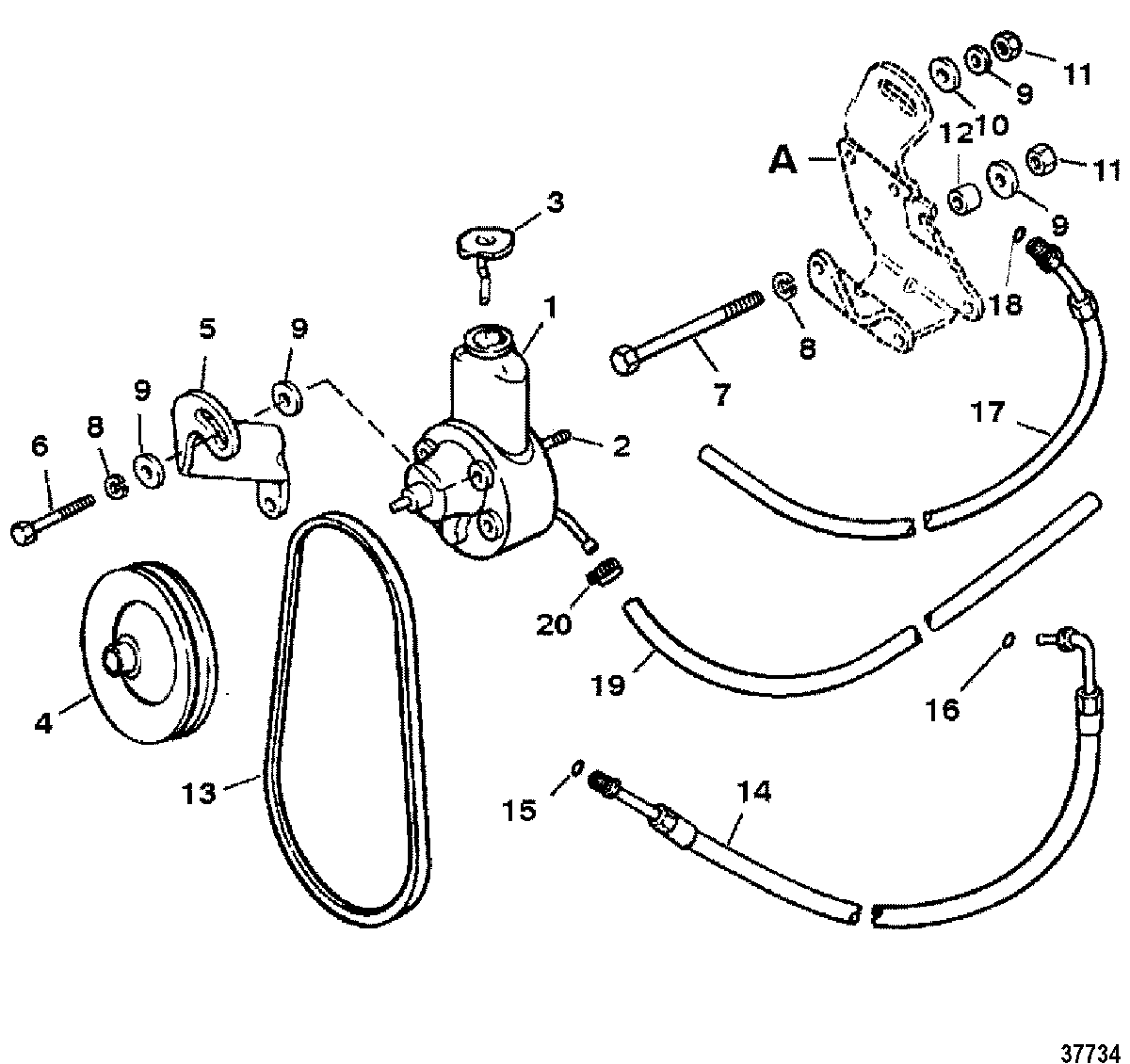

POWER STEERING COMPONENTS(STAMPED MOUNTING BRACKET) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    16-41877 STUD, (M10)
    STUD, (M10)
  • 3
    36-95805 CAP
    CAP
  • 4
    73873A1 PULLEY
    PULLEY
  • 5
    15082T BRACE
    BRACE
  • 6
    10-40001192 SCREW, (M10 x 25)
    SCREW, (M10 x 25)
  • 7
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 8
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 9
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 10
    12-28105 WASHER
    WASHER
  • 11
    11-90517 NUT, (M10)
    NUT, (M10)
  • 12
    23-45353 SPACER
    SPACER
  • 13
    57-37619Q V BELT
    (52 IN. USE WITH 5-1/2 IN. DIA. WATER PUMP PULLEY)
    V BELT
    (52 IN. USE WITH 5-1/2 IN. DIA. WATER PUMP PULLEY)
  • 13
    57-816295Q V BELT
    (52-1/2 IN. USE WITH 7 IN. DIA. WATER PUMP PULLEY)
    V BELT
    (52-1/2 IN. USE WITH 7 IN. DIA. WATER PUMP PULLEY)
  • 14
    32-90494 HOSE
    (FITTINGS ON BOTH ENDS) SN# 0F114689 & Below
    HOSE
    (FITTINGS ON BOTH ENDS) SN# 0F114689 & Below
  • 14
    32-986291 HOSE, (136.00 Inches Bulk)
    (JACKSHAFT MODELS) SN# 0F114689 & Below
    HOSE, (136.00 Inches Bulk)
    (JACKSHAFT MODELS) SN# 0F114689 & Below
  • 14
    32-80622216 HOSE
    (FITTINGS ON BOTH ENDS) SN# 0F114690 & Up
    HOSE
    (FITTINGS ON BOTH ENDS) SN# 0F114690 & Up
  • 14
    32-80622236 PRESSURE HOSE
    (JACKSHAFT MODELS) SN# 0F114690 & Up
    PRESSURE HOSE
    (JACKSHAFT MODELS) SN# 0F114690 & Up
  • 15
    25-89879 O-RING, (.301 x .064)
    SN# 0F114689 & Below
    O-RING, (.301 x .064)
    SN# 0F114689 & Below
  • 15
    25-89879 O-RING, (.301 x .064)
    SN# 0F114690 & Up
    O-RING, (.301 x .064)
    SN# 0F114690 & Up
  • 16
    25-806232 O-RING, (.239 x .064)
    SN# 0F114690 & Up
    O-RING, (.239 x .064)
    SN# 0F114690 & Up
  • 17
    32-9884339 HOSE ASSEMBLY, (72.00 Inches Bulk)
    (FITTING ON ONE END) SN# 0F114689 & Below
    HOSE ASSEMBLY, (72.00 Inches Bulk)
    (FITTING ON ONE END) SN# 0F114689 & Below
  • 17
    32-986241 HOSE, (133.00 Inches Bulk)
    (JACKSHAFT MODELS) SN# 0F114689 & Below
    HOSE, (133.00 Inches Bulk)
    (JACKSHAFT MODELS) SN# 0F114689 & Below
  • 17
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (FITTING ON ONE END) SN# 0F114690 & Up
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (FITTING ON ONE END) SN# 0F114690 & Up
  • 17
    32-80622145 RETURN HOSE
    (JACKSHAFT MODELS) SN# 0F114690 & Up
    RETURN HOSE
    (JACKSHAFT MODELS) SN# 0F114690 & Up
  • 18
    25-89879 O-RING, (.301 x .064)
    SN# 0F114690 & Up
    O-RING, (.301 x .064)
    SN# 0F114690 & Up
  • 19
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
  • 20
    54-815504206 CLAMP, Worm Gear
    CLAMP, Worm Gear
