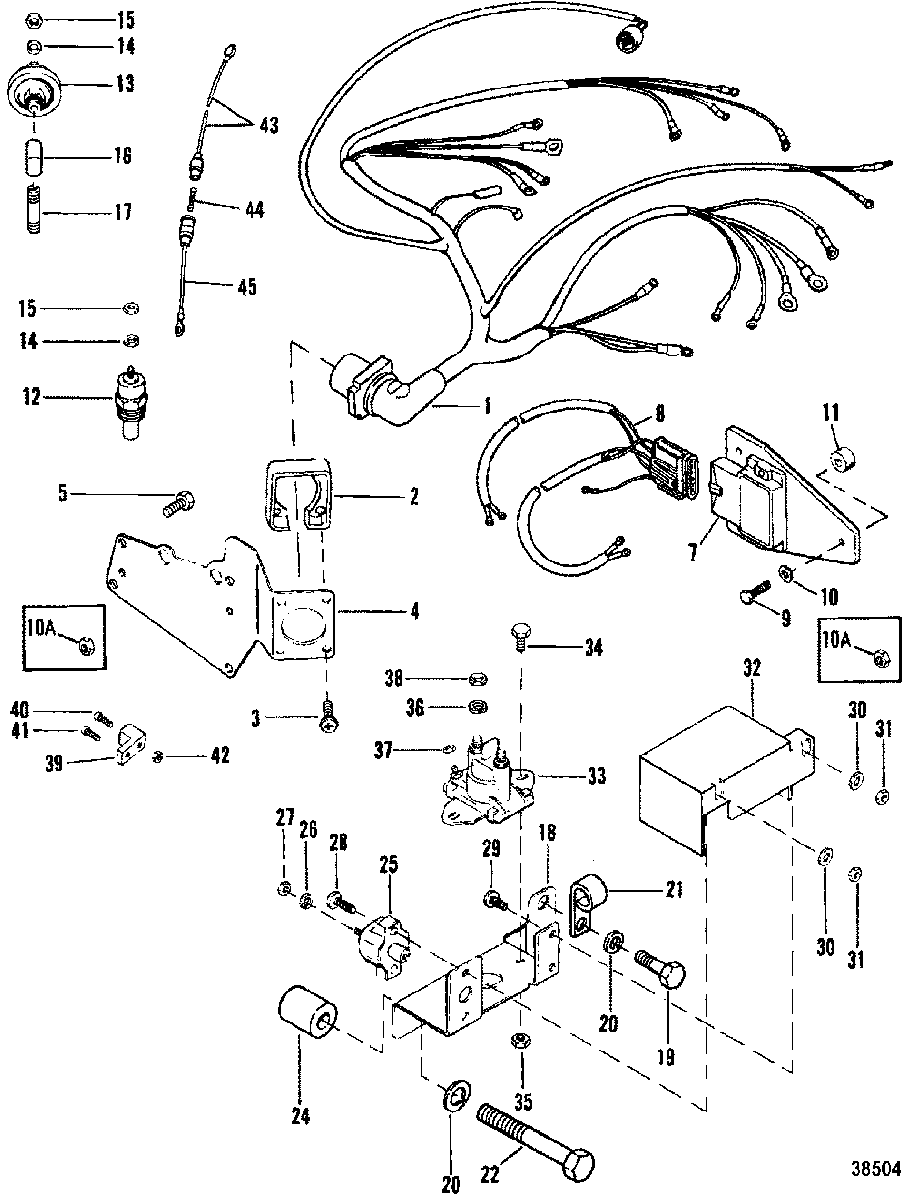

ELECTRICAL COMPONENTS(IGN. MODULE MOUNTED ON EXH. ELBOW) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444

  • №
    Артикул
    Название
  • 1
    84-98423A14 HARNESS ASSEMBLY
    (200 - 5.0L)
    HARNESS ASSEMBLY
    (200 - 5.0L)
  • 1
    84-98423A13 HARNESS ASSEMBLY
    (230/260/5.0LX/5.7L/350 MAGNUM)
    HARNESS ASSEMBLY
    (230/260/5.0LX/5.7L/350 MAGNUM)
  • 1
    84-98423A18 HARNESS ASSEMBLY
    (5.0L BRAVO)
    HARNESS ASSEMBLY
    (5.0L BRAVO)
  • 1
    84-98423A15 HARNESS ASSEMBLY
    (5.7L BRAVO)
    HARNESS ASSEMBLY
    (5.7L BRAVO)
  • 2
    26079A2 PLATE
    METAL
    PLATE
    METAL
  • 3
    10-34696 SCREW, (#8-32 x .750)
    METAL
    SCREW, (#8-32 x .750)
    METAL
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLASTIC
    PLATE KIT, Wire Harness Mount
    PLASTIC
  • 3
    10-15001 SCREW, (#8-16 x .875)
    PLASTIC
    SCREW, (#8-16 x .875)
    PLASTIC
  • 4
    98493A2 BRACKET
    BRACKET
  • 5
    10-65746 SCREW, (.250-20 x .750)
    (CAST IRON EXHAUST MANIFOLD)
    SCREW, (.250-20 x .750)
    (CAST IRON EXHAUST MANIFOLD)
  • 7
    15899A1 IGNITION AMPLIFIER
    (200/230 - 5.0L/LX)
    IGNITION AMPLIFIER
    (200/230 - 5.0L/LX)
  • 7
    15899A1 IGNITION MODULE ASSEMBLY
    (260 - 5.7L ALPHA) SN# 0F273497 & Below
    IGNITION MODULE ASSEMBLY
    (260 - 5.7L ALPHA) SN# 0F273497 & Below
  • 7
    821125A1 IGNITION MODULE
    (260 - 5.7L ALPHA) SN# 0F273498 & Up
    IGNITION MODULE
    (260 - 5.7L ALPHA) SN# 0F273498 & Up
  • 7
    15899A1 IGNITION MODULE ASSEMBLY
    (5.7L BRAVO) SN# 0D617327 & Below
    IGNITION MODULE ASSEMBLY
    (5.7L BRAVO) SN# 0D617327 & Below
  • 7
    821125A1 IGNITION MODULE
    (5.7L BRAVO) SN# 0D617328 & Up
    IGNITION MODULE
    (5.7L BRAVO) SN# 0D617328 & Up
  • 7
    15899A1 IGNITION MODULE ASSEMBLY
    (350 MAGNUM) SN# 0D617327 & Below
    IGNITION MODULE ASSEMBLY
    (350 MAGNUM) SN# 0D617327 & Below
  • 7
    821125A1 IGNITION MODULE
    (350 MAGNUM) SN# 0D617328 & Up
    IGNITION MODULE
    (350 MAGNUM) SN# 0D617328 & Up
  • 8
    84-15275A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 9
    10-76630 SCREW, (.250-20 x 1.00)
    CAST IRON EXHAUST MANIFOLD
    SCREW, (.250-20 x 1.00)
    CAST IRON EXHAUST MANIFOLD
  • 10
    13-26992 LOCKWASHER, (.250) Stainless Steel
    CAST IRON EXHAUST MANIFOLD
    LOCKWASHER, (.250) Stainless Steel
    CAST IRON EXHAUST MANIFOLD
  • 10A
    11-64015 NUT, (.250-20)
    (STAINLESS STEEL EXHAUST MANIFOLD)
    NUT, (.250-20)
    (STAINLESS STEEL EXHAUST MANIFOLD)
  • 11
    23-92152T SPACER, (.27 x .75 x .38)
    SPACER, (.27 x .75 x .38)
  • 12
    97258A1 SENDER ASSEMBLY (1/2-14)
    SENDER ASSEMBLY (1/2-14)
  • 12
    806490T SENDER ASSEMBLY, Water Temperature (3/8-18)
    SENDER ASSEMBLY, Water Temperature (3/8-18)
  • 12
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 13
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 13
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 14
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 15
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 16
    22-46932 ELBOW
    ELBOW
  • 17
    22-885153 NIPPLE
    NIPPLE
  • 18
    41170T BRACKET
    BRACKET
  • 19
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 20
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 21
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 22
    10-26486 SCREW, (.375-16 x 2.375)
    SCREW, (.375-16 x 2.375)
  • 24
    23-15895 SPACER, (.38 x 1.00 x 1.44)
    SPACER, (.38 x 1.00 x 1.44)
  • 24
    23-91034 SPACER, (.380 x 1.00 x .530)
    SPACER, (.380 x 1.00 x .530)
  • 25
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 26
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 27
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 28
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 29
    10-45218 SCREW, (#10-32 x .380)
    SCREW, (#10-32 x .380)
  • 30
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 31
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 32
    85-96819T INSULATOR
    INSULATOR
  • 33
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 34
    10-96138 SCREW, (1/4-28 x 5/8) (5/8 IN.)
    SCREW, (1/4-28 x 5/8) (5/8 IN.)
  • 35
    11-20088 NUT
    NUT
  • 36
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 37
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 39
    86-45915 TERMINAL BLOCK
    5.7L BRAVO
    TERMINAL BLOCK
    5.7L BRAVO
  • 40
    10-62568 SCREW, (#10-16 x .375)
    5.7L BRAVO
    SCREW, (#10-16 x .375)
    5.7L BRAVO
  • 41
    10-22028 SCREW, (#10-32 x .50)
    5.7L BRAVO
    SCREW, (#10-32 x .50)
    5.7L BRAVO
  • 42
    11-46438 NUT, (#10-32)
    5.7L BRAVO
    NUT, (#10-32)
    5.7L BRAVO
  • 43
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    BRAVO ENGINE
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    BRAVO ENGINE
  • 44
    88-79091 FUSE, 20 Ampere
    BRAVO ENGINE
    FUSE, 20 Ampere
    BRAVO ENGINE
  • 45
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    BRAVO ENGINE
    CABLE ASSEMBLY, (5.00 Inches) Red
    BRAVO ENGINE
  • -
    84-11149A5 HARNESS ASSEMBLY, Adapter (USED TO ADAPT RING TERMINAL & BULLET CONNECTOR WIRING HARNESS)
    HARNESS ASSEMBLY, Adapter (USED TO ADAPT RING TERMINAL & BULLET CONNECTOR WIRING HARNESS)
