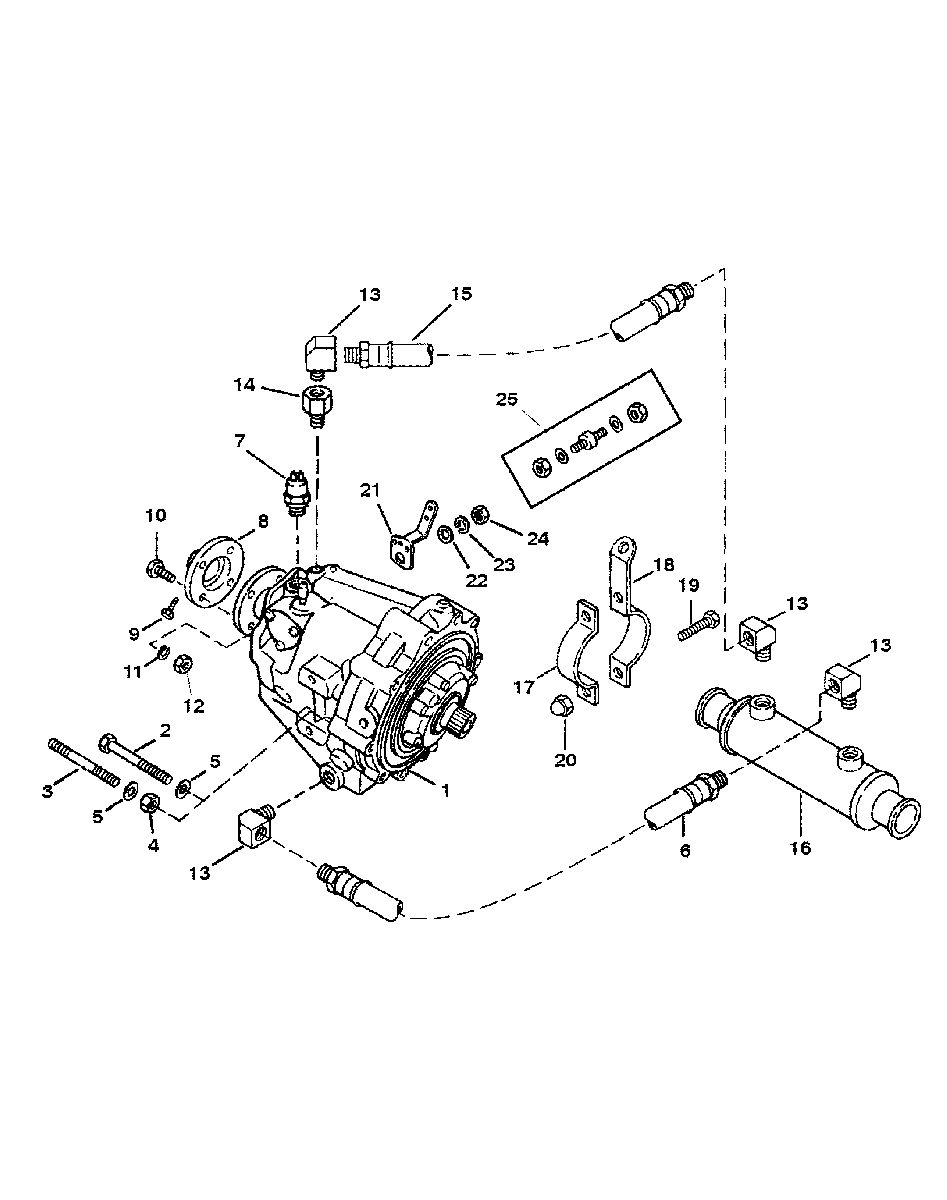

TRANSMISSION AND RELATED PARTS (IN-LINE) (BORG WARNER) для Mercruiser - 5.7L MIE GM 350 V-8 1994-1995 0F025000 THRU 0F622099

  • №
    Артикул
    Название
  • 1
    SEECHART TRANSMISSION
    (SEE "TRANSMISSION ORDERING CHART" ON PAGE 54)
    TRANSMISSION
    (SEE "TRANSMISSION ORDERING CHART" ON PAGE 54)
  • 2
    10-60179 SCREW (3-1/2") - DIRECT DRIVE
    SCREW (3-1/2") - DIRECT DRIVE
  • 2
    10-60179 SCREW (3-1/2") - REDUCTION RATIOS
    SCREW (3-1/2") - REDUCTION RATIOS
  • 3
    16-57921 STUD (4")
    DIRECT DRIVE
    STUD (4")
    DIRECT DRIVE
  • 4
    11-22024 NUT
    DIRECT DRIVE
    NUT
    DIRECT DRIVE
  • 5
    13-32993 LOCKWASHER
    LOCKWASHER
  • 6
    32-4751613 HOSE (44")
    HOSE (44")
  • 7
    87-88031 SWITCH
    SWITCH
  • 8
    87917A1 FLANGE ASSY. (1")(4 IN. DIAMETER)
    FLANGE ASSY. (1")(4 IN. DIAMETER)
  • 8
    79476A1 FLANGE ASSY. (1")
    5 IN. DIAMETER
    FLANGE ASSY. (1")
    5 IN. DIAMETER
  • 8
    79476A2 FLANGE ASSY. (1-1/8")
    5 IN. DIAMETER
    FLANGE ASSY. (1-1/8")
    5 IN. DIAMETER
  • 8
    79476A3 FLANGE ASSY. (1-1/4")
    5 IN. DIAMETER
    FLANGE ASSY. (1-1/4")
    5 IN. DIAMETER
  • 8
    79476A4 FLANGE ASSY. (1-3/8")
    5 IN. DIAMETER
    FLANGE ASSY. (1-3/8")
    5 IN. DIAMETER
  • 8
    79476A5 FLANGE ASSY. (1-1/2")
    5 IN. DIAMETER
    FLANGE ASSY. (1-1/2")
    5 IN. DIAMETER
  • 9
    10-60171 SCREW (1-1/4")
    SCREW (1-1/4")
  • 9
    10-60169 SCREW (3/4")
    SCREW (3/4")
  • 10
    10-805159 SCREW (1-1/2")
    SCREW (1-1/2")
  • 11
    13-32993 LOCKWASHER
    LOCKWASHER
  • 12
    11-22024 NUT
    NUT
  • 13
    22-47629 ELBOW (90_) (DIRECT DRIVE)
    ELBOW (90_) (DIRECT DRIVE)
  • 13
    22-47629 ELBOW (90_)
    REDUCTION RATIOS
    ELBOW (90_)
    REDUCTION RATIOS
  • 13
    22-63835 ELBOW (45_)
    REDUCTION RATIOS
    ELBOW (45_)
    REDUCTION RATIOS
  • 14
    22-88517 ADAPTOR
    ADAPTOR
  • 15
    32-4751613 HOSE (44")
    HOSE (44")
  • 16
    63832A1 OIL COOLER
    OIL COOLER
  • 17
    56328A1 BRACKET (SHORT)
    BRACKET (SHORT)
  • 18
    63820T BRACKET (LONG)
    BRACKET (LONG)
  • 19
    10-60300 SCREW (3/4")
    SCREW (3/4")
  • 20
    11-30506 NUT
    NUT
  • 21
    43325 SHIFT LEVER
    SHIFT LEVER
  • 22
    12-20722 WASHER
    WASHER
  • 23
    13-26993 LOCKWASHER
    LOCKWASHER
  • 24
    11-22053 NUT
    NUT
  • 25
    16-97477A3 STUD
    STUD
