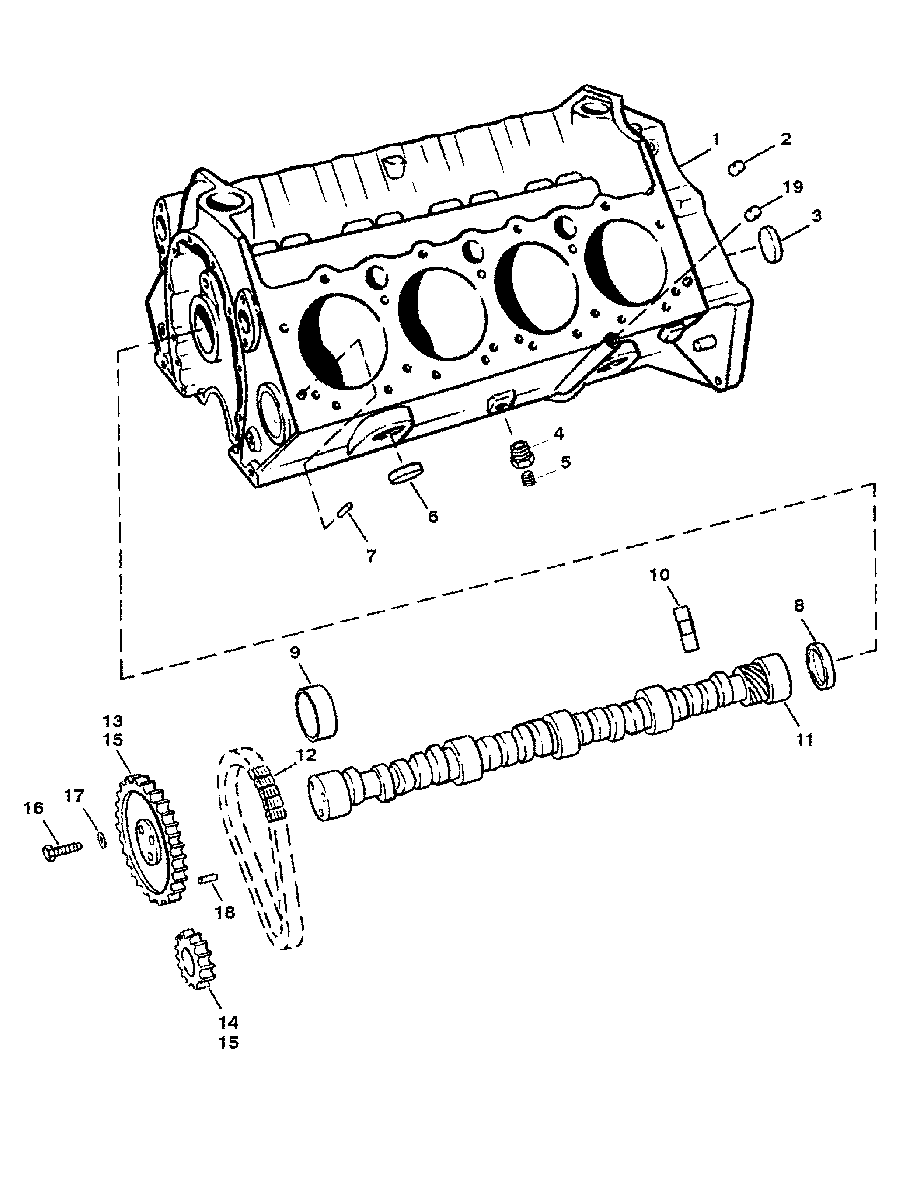

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 5.7L MIE GM 350 V-8 1994-1995 0F025000 THRU 0F622099

  • №
    Артикул
    Название
  • 1
    841-9717 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    22-32561 PIPE PLUG (1/4")
    PIPE PLUG (1/4")
  • 3
    19-816565 EXPANSION PLUG (15/32")
    EXPANSION PLUG (15/32")
  • 4
    22-48556 BUSHING
    BUSHING
  • 5
    22-328022 PIPE PLUG
    PIPE PLUG
  • 6
    19-34270 EXPANSION PLUG (1-5/8" DIA.)
    EXPANSION PLUG (1-5/8" DIA.)
  • 7
    17-35465 DOWEL PIN (5/16" DIA.)
    DOWEL PIN (5/16" DIA.)
  • 8
    22-72640 PLUG
    PLUG
  • 9
    23-85674 BEARING UNIT (SET)
    BEARING UNIT (SET)
  • 10
    72638 LIFTER
    LIFTER
  • 11
    431-5943 CAMSHAFT (L.H. ROTATION)
    CAMSHAFT (L.H. ROTATION)
  • 11
    431-884035 CAMSHAFT (R.H. ROTATION)
    CAMSHAFT (R.H. ROTATION)
  • 12
    17161T CHAIN (L.H. ROTATION)
    CHAIN (L.H. ROTATION)
  • 13
    43-17159 SPROCKET (L.H. ROTATION)
    SPROCKET (L.H. ROTATION)
  • 14
    43-17160 SPROCKET (L.H. ROTATION)
    SPROCKET (L.H. ROTATION)
  • 15
    43-14324 GEAR SET (R.H. ROTATION)
    GEAR SET (R.H. ROTATION)
  • 16
    10-34505 BOLT (3/4")
    BOLT (3/4")
  • 17
    12-848136 WASHER
    WASHER
  • 18
    17-843378 PIN
    PIN
  • 19
    19-93654 PLUG
    PLUG
  • -
    883944R5 L.H. ROTATION LONG BLOCK ENGINE
    (SEE NOTE)
    L.H. ROTATION LONG BLOCK ENGINE
    (SEE NOTE)
  • -
    14156R5 R.H. ROTATION LONG BLOCK ENGINE
    (SEE NOTE)
    R.H. ROTATION LONG BLOCK ENGINE
    (SEE NOTE)
  • -
    92-809826 SEALER-RED RTU (WHERE APPLICABLE)
    SEALER-RED RTU (WHERE APPLICABLE)
  • -
    92-34227Q02 PERFECT SEAL (WHERE APPLICABLE)
    PERFECT SEAL (WHERE APPLICABLE)
