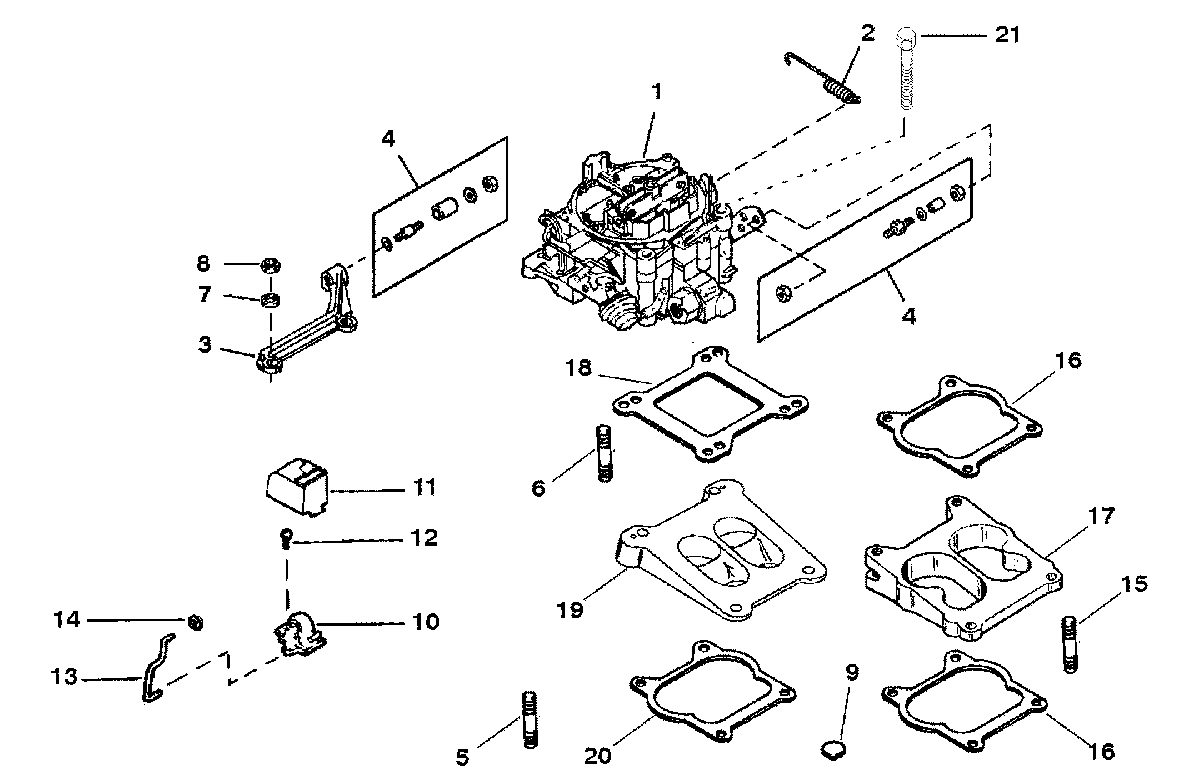

CARBURETOR AND LINKAGE (WEDGE MOUNTING) для Mercruiser - 5.7L MIE GM 350 V-8 1994-1995 0F025000 THRU 0F622099

  • №
    Артикул
    Название
  • 1
    3310-806761A2 CARBURETOR
    (SER# D715494-F349999)
    CARBURETOR
    (SER# D715494-F349999)
  • 1
    3310-806761A3 CARBURETOR
    (SER# 350000 AND UP)
    CARBURETOR
    (SER# 350000 AND UP)
  • 2
    24-897454 SPRING
    SPRING
  • 3
    805359T BRACKET
    BRACKET
  • 4
    16-97477A3 STUD
    STUD
  • 5
    16-53724 STUD (1-3/4")
    STUD (1-3/4")
  • 6
    16-8M0113177 STUD (1-1/2")
    STUD (1-1/2")
  • 7
    12-20084 WASHER
    WASHER
  • 8
    11-29250 NUT
    NUT
  • 9
    22-12524 PLUG
    PLUG
  • 10
    66205 AUTOMATIC CHOKE
    AUTOMATIC CHOKE
    AUTOMATIC CHOKE
    AUTOMATIC CHOKE
  • 11
    63922 COVER
    AUTOMATIC CHOKE
    COVER
    AUTOMATIC CHOKE
  • 12
    10-69235 SCREW
    AUTOMATIC CHOKE
    SCREW
    AUTOMATIC CHOKE
  • 13
    806941 CHOKE ROD
    AUTOMATIC CHOKE
    CHOKE ROD
    AUTOMATIC CHOKE
  • 14
    53-818299 CLIP
    AUTOMATIC CHOKE
    CLIP
    AUTOMATIC CHOKE
  • 15
    16-63332 STUD (1-9/32")
    2 HOLE WEDGE
    STUD (1-9/32")
    2 HOLE WEDGE
  • 16
    27-524572 GASKET
    2 HOLE WEDGE
    GASKET
    2 HOLE WEDGE
  • 17
    821109T WEDGE
    2 HOLE WEDGE
    WEDGE
    2 HOLE WEDGE
  • 18
    27-41610 GASKET
    4 HOLE WEDGE
    GASKET
    4 HOLE WEDGE
  • 19
    806823A1 WEDGE
    4 HOLE WEDGE
    WEDGE
    4 HOLE WEDGE
  • 20
    27-524572 GASKET
    4 HOLE WEDGE
    GASKET
    4 HOLE WEDGE
  • 21
    10-807066 SCREW (1-1/2")
    4 HOLE WEDGE
    SCREW (1-1/2")
    4 HOLE WEDGE
  • -
    27-75611A88 ENGINE OVERHAUL GASKET SET
    ENGINE OVERHAUL GASKET SET
