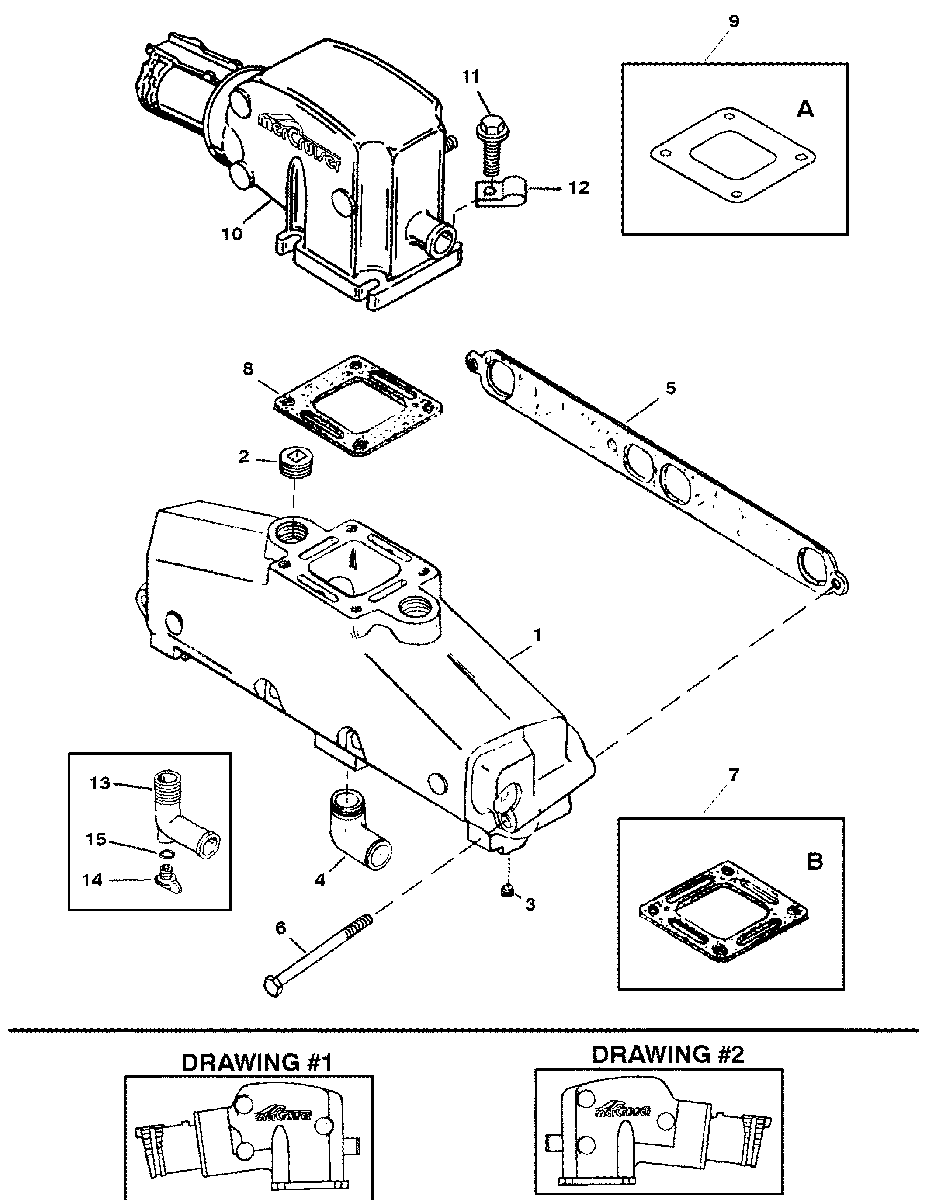

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 5.7L MIE GM 350 V-8 1994-1995 0F025000 THRU 0F622099

  • №
    Артикул
    Название
  • 1
    860246A15 EXHAUST MANIFOLD ASSEMBLY
    EXHAUST MANIFOLD ASSEMBLY
  • 2
    22-416223 PLUG
    PLUG
  • 3
    22-36382 PIPE PLUG
    PIPE PLUG
  • 4
    22-36305T ELBOW (90 DEGREES)
    METAL
    ELBOW (90 DEGREES)
    METAL
  • 4
    22-866725 FITTING (STRAIGHT)
    METAL
    FITTING (STRAIGHT)
    METAL
  • 5
    27-33395 GASKET
    GASKET
  • 6
    10-53728 SCREW (4-518")
    SCREW (4-518")
  • 7
    27-863726 GASKET (USE WITH RISER KITS)
    GASKET (USE WITH RISER KITS)
  • 8
    27-863724 GASKET (STANDARD COOLING)
    GASKET (STANDARD COOLING)
  • 9
    27-8637251 GASKET (CLOSED COOLING)
    GASKET (CLOSED COOLING)
  • 10
    816900A5 EXHAUST ELBOW ASSEMBLY
    (SEE DRAWING #1 ON ILLUSTRATION) AND SEE NOTE #1
    EXHAUST ELBOW ASSEMBLY
    (SEE DRAWING #1 ON ILLUSTRATION) AND SEE NOTE #1
  • 10
    816900A7 EXHAUST ELBOW ASSEMBLY
    (SEE DRAWING #2 ON ILLUSTRATION) AND SEE NOTE #1
    EXHAUST ELBOW ASSEMBLY
    (SEE DRAWING #2 ON ILLUSTRATION) AND SEE NOTE #1
  • 11
    10-865982005 SCREW (1")
    SCREW (1")
  • 11
    10-98534 SCREW (2-1/4")
    SCREW (2-1/4")
  • 12
    54-73668 J-CLIP (PORT)
    J-CLIP (PORT)
  • 13
    22-862210A01 DRAIN ELBOW
    PLASTIC
    DRAIN ELBOW
    PLASTIC
  • 14
    22-8M0119211 DRAIN PLUG
    PLASTIC
    DRAIN PLUG
    PLASTIC
  • 15
    25-32509 QUAD RING
    PLASTIC
    QUAD RING
    PLASTIC
  • -
    93320A14 EXHAUST RISER KIT (3")
    EACH KIT CONTAINS TWO RISERS
    EXHAUST RISER KIT (3")
    EACH KIT CONTAINS TWO RISERS
  • -
    807477A5 EXHAUST RISER KIT (6")
    EACH KIT CONTAINS TWO RISERS
    EXHAUST RISER KIT (6")
    EACH KIT CONTAINS TWO RISERS
  • -
    27-75611A88 ENGINE OVERHAUL GASKET SET
    ENGINE OVERHAUL GASKET SET
