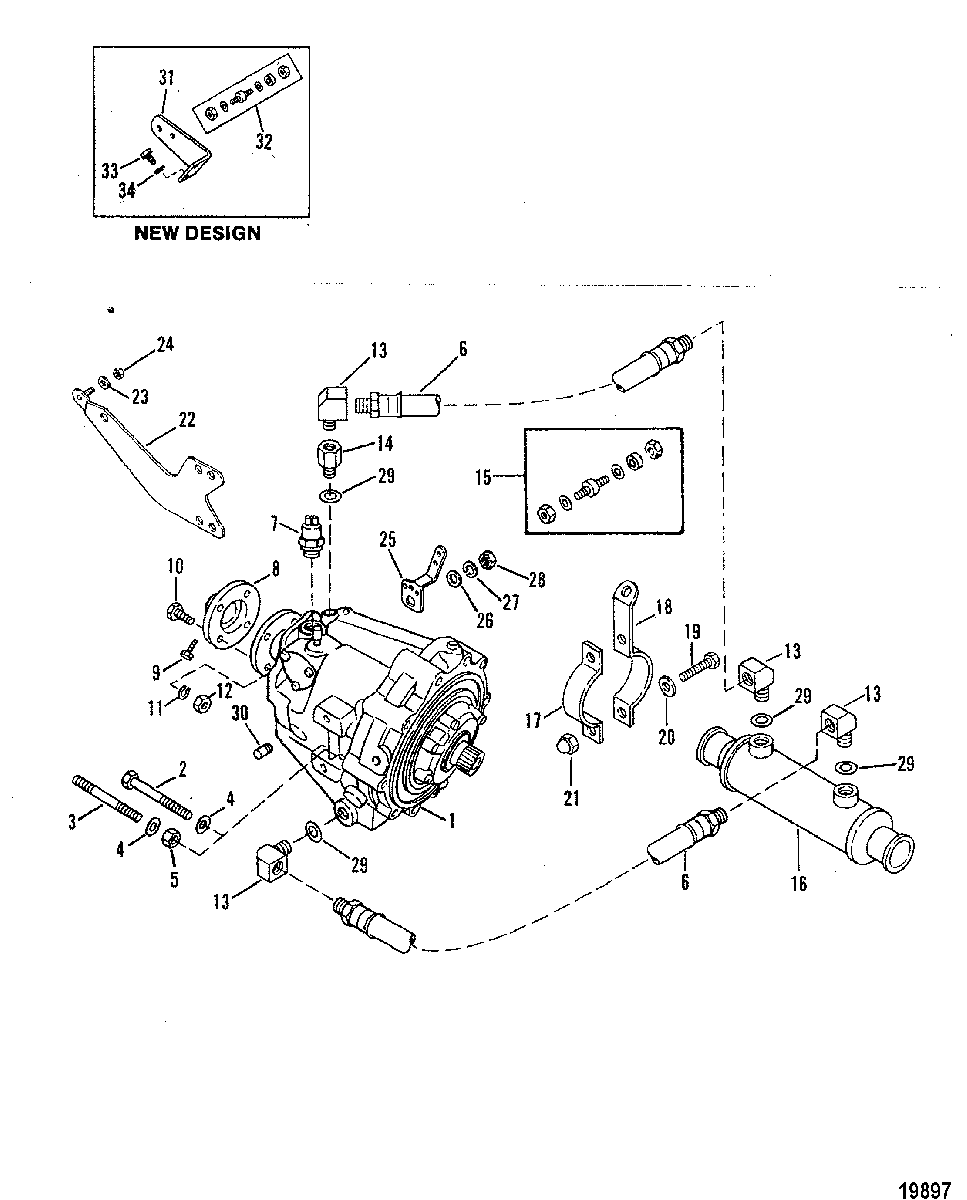

Transmission and Related Parts(In-Line) для Mercruiser - 5.7L MIE GM 350 V-8 1988-1993 0B788197 THRU 0F024999
-
№АртикулНазвание
-
147805A7 TRANSMISSION ASSEMBLY (DIRECT DRIVE)TRANSMISSION ASSEMBLY (DIRECT DRIVE)
-
147806R07 TRANSMISSION (1.523:1 REDUCTION)TRANSMISSION (1.523:1 REDUCTION)
-
147807A7 TRANSMISSION (1.909:1 REDUCTION)TRANSMISSION (1.909:1 REDUCTION)
-
147808R07 TRANSMISSION (2.57:1 REDUCTION)TRANSMISSION (2.57:1 REDUCTION)
-
147809A7 TRANSMISSION (2.909:1 REDUCTION)TRANSMISSION (2.909:1 REDUCTION)
-
210-60179 SCREW, (.437-14 x 3.500)SCREW, (.437-14 x 3.500)
-
316-57921 STUD, (.437-14/.437-20 x 4.00)STUD, (.437-14/.437-20 x 4.00)
-
413-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
511-22024 NUT, (.437-14)NUT, (.437-14)
-
632-4751613 HOSE (44")HOSE (44")
-
632-4751613 HOSE, (49.00 Inches)HOSE, (49.00 Inches)
-
787-88031 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
887917A1 FLANGE ASSEMBLY, (4.00 x 1.00)
(Use 10-60169)FLANGE ASSEMBLY, (4.00 x 1.00)
(Use 10-60169) -
887917A2 FLANGE ASSEMBLY (1-1/8")
(Use 10-60169)FLANGE ASSEMBLY (1-1/8")
(Use 10-60169) -
887917A3 FLANGE ASSEMBLY (1-1/4")
(Use 10-60169)FLANGE ASSEMBLY (1-1/4")
(Use 10-60169) -
848384A1 FLANGE ASSEMBLY (1-3/8")
(Use 10-60169)FLANGE ASSEMBLY (1-3/8")
(Use 10-60169) -
887917A5 FLANGE ASSEMBLY (1-1/2")
(Use 10-60168)FLANGE ASSEMBLY (1-1/2")
(Use 10-60168) -
879476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
(Use 10-60171)FLANGE ASSEMBLY, (5.00 x 1.00)
(Use 10-60171) -
879476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
(Use 10-60171)FLANGE ASSEMBLY, (5.00 x 1.25)
(Use 10-60171) -
879476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
(Use 10-60171)FLANGE ASSEMBLY, (5.00 x 1.375)
(Use 10-60171) -
879476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
(Use 10-60170)FLANGE ASSEMBLY, (5.00 x 1.50)
(Use 10-60170) -
910-60168 SCREW (1-1/2")SCREW (1-1/2")
-
910-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
910-60171 SCREW, (1 In.) (1")SCREW, (1 In.) (1")
-
910-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1010-37909 SCREW, (.375-24 x 1.125)SCREW, (.375-24 x 1.125)
-
1010-60106 SCREW, (1.25 In) (1-1/4")SCREW, (1.25 In) (1-1/4")
-
1113-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1113-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1211-46335 NUTNUT
-
1211-22024 NUT, (.437-14)NUT, (.437-14)
-
1322-63835 ELBOW, 45 DegreeELBOW, 45 Degree
-
1322-47629 ELBOW, 90 DegreeELBOW, 90 Degree
-
1422-88517 FITTING, ReducingFITTING, Reducing
-
1516-97477A3 STUD KITSTUD KIT
-
1663832A1 COOLERCOOLER
-
1756328A1 BRACKET (SHORT)BRACKET (SHORT)
-
1863820T BRACKET (LONG)BRACKET (LONG)
-
1910-60300 SCREW, (.250-28 x .750)SCREW, (.250-28 x .750)
-
2012-25909 WASHER, (.406 x .812 x .065)WASHER, (.406 x .812 x .065)
-
2111-30506 NUT, (.250-28)NUT, (.250-28)
-
2293141A7 BRACKET ASSEMBLY
(Design I)BRACKET ASSEMBLY
(Design I) -
2312-20533 WASHER
(Design I)WASHER
(Design I) -
2411-8267089 NUT, (.250-28)
(Design I)NUT, (.250-28)
(Design I) -
2543325 LEVERLEVER
-
2612-20722 WASHER, (.328 x .625 x .060)WASHER, (.328 x .625 x .060)
-
2713-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2811-22053 NUT, (.312-24)NUT, (.312-24)
-
2912-36533 WASHER, (.328 x .562 x .0312) CopperWASHER, (.328 x .562 x .0312) Copper
-
3047613 SWITCHSWITCH
-
3118351A1 BRACKET ASSEMBLY
(Design II)BRACKET ASSEMBLY
(Design II) -
3216-97477A3 STUD KIT
(Design II)STUD KIT
(Design II) -
3310-54615 SCREW, (.250-20 x .625)
(Design II)SCREW, (.250-20 x .625)
(Design II) -
3413-26992 LOCKWASHER, (.250) Stainless Steel
(Design II)LOCKWASHER, (.250) Stainless Steel
(Design II)
