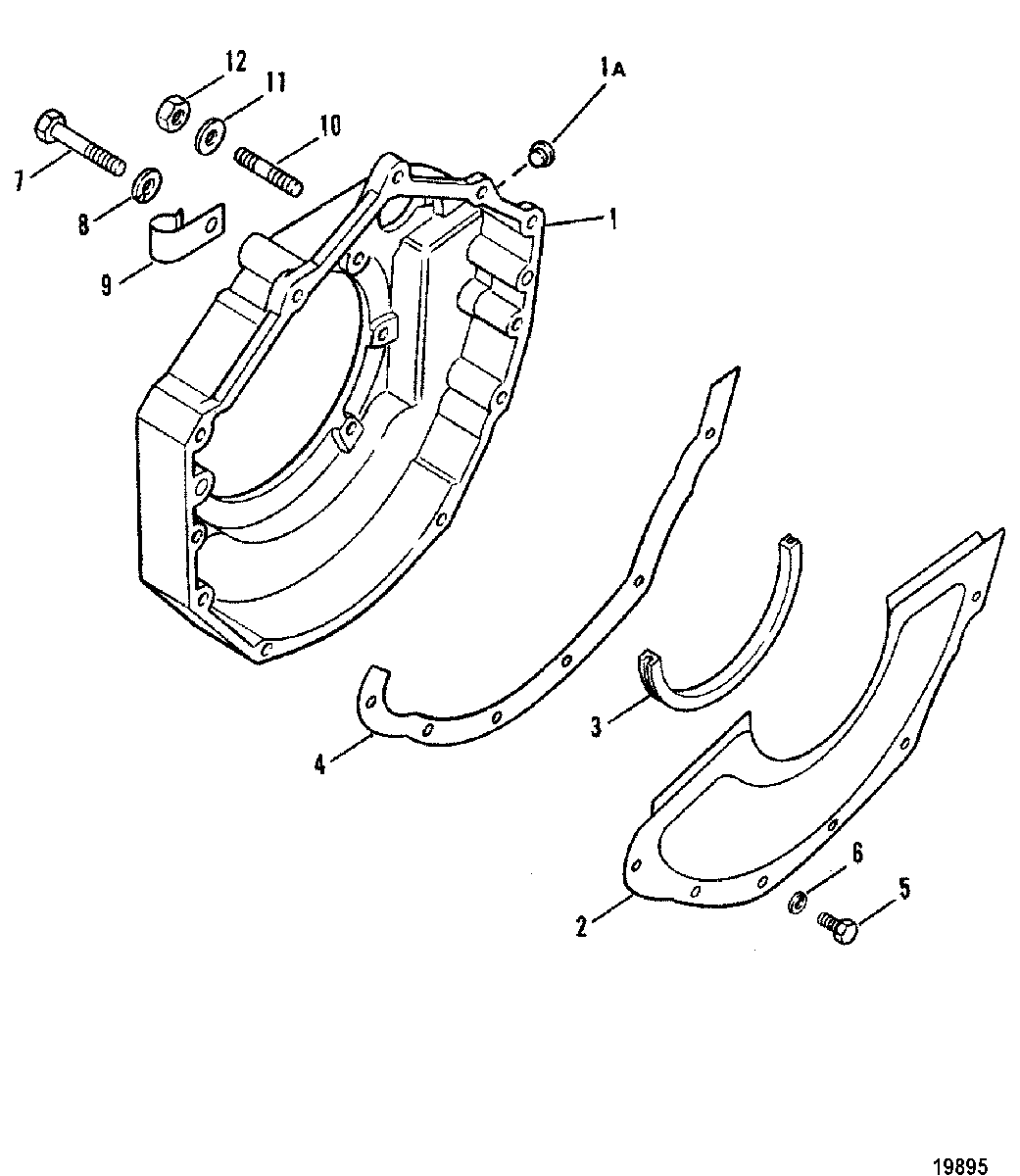

Flywheel Housing для Mercruiser - 5.7L MIE GM 350 V-8 1988-1993 0B788197 THRU 0F024999

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING, FLYWHEEL
    HOUSING, FLYWHEEL
  • 1A
    19-12304 PLUG, TIMING WINDOW
    PLUG, TIMING WINDOW
  • 2
    818718A4 COVER ASSEMBLY, FLYWHEEL HOUSING
    COVER ASSEMBLY, FLYWHEEL HOUSING
  • 3
    87690 SEAL, FLYWHEEL HOUSING COVER
    SEAL, FLYWHEEL HOUSING COVER
  • 4
    27-86015 GASKET, FLYWHEEL HOUSING COVER
    GASKET, FLYWHEEL HOUSING COVER
  • 5
    10-98253 SCREW, (.250-20 x .500), COVER TO FLYWHEEL HOUSING
    SCREW, (.250-20 x .500), COVER TO FLYWHEEL HOUSING
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    10-37612 SCREW, (.375-16 x 1.250), FLYWHEEL HOUSING
    SCREW, (.375-16 x 1.250), FLYWHEEL HOUSING
  • 7
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 7
    10-48424 SCREW, (.375-16 x 1.620), FLYWHEEL HOUSING
    SCREW, (.375-16 x 1.620), FLYWHEEL HOUSING
  • 8
    13-35048 LOCKWASHER, (.375), FLYWHEEL HOUSING SCREW
    LOCKWASHER, (.375), FLYWHEEL HOUSING SCREW
  • 9
    54-78945 J CLAMP, Harness Support-FLYWHEEL HOUSING SCREW
    J CLAMP, Harness Support-FLYWHEEL HOUSING SCREW
  • 10
    16-861316 STUD, (.375-16 x 2.750) Special, FLYWHEEL HOUSING
    STUD, (.375-16 x 2.750) Special, FLYWHEEL HOUSING
  • 11
    12-20572 WASHER, (.390 x .750 x .093), FLYWHEEL HOUSING STUD
    WASHER, (.390 x .750 x .093), FLYWHEEL HOUSING STUD
  • 12
    11-32219 NUT, (.375-16), FLYWHEEL HOUSING STUD
    NUT, (.375-16), FLYWHEEL HOUSING STUD
