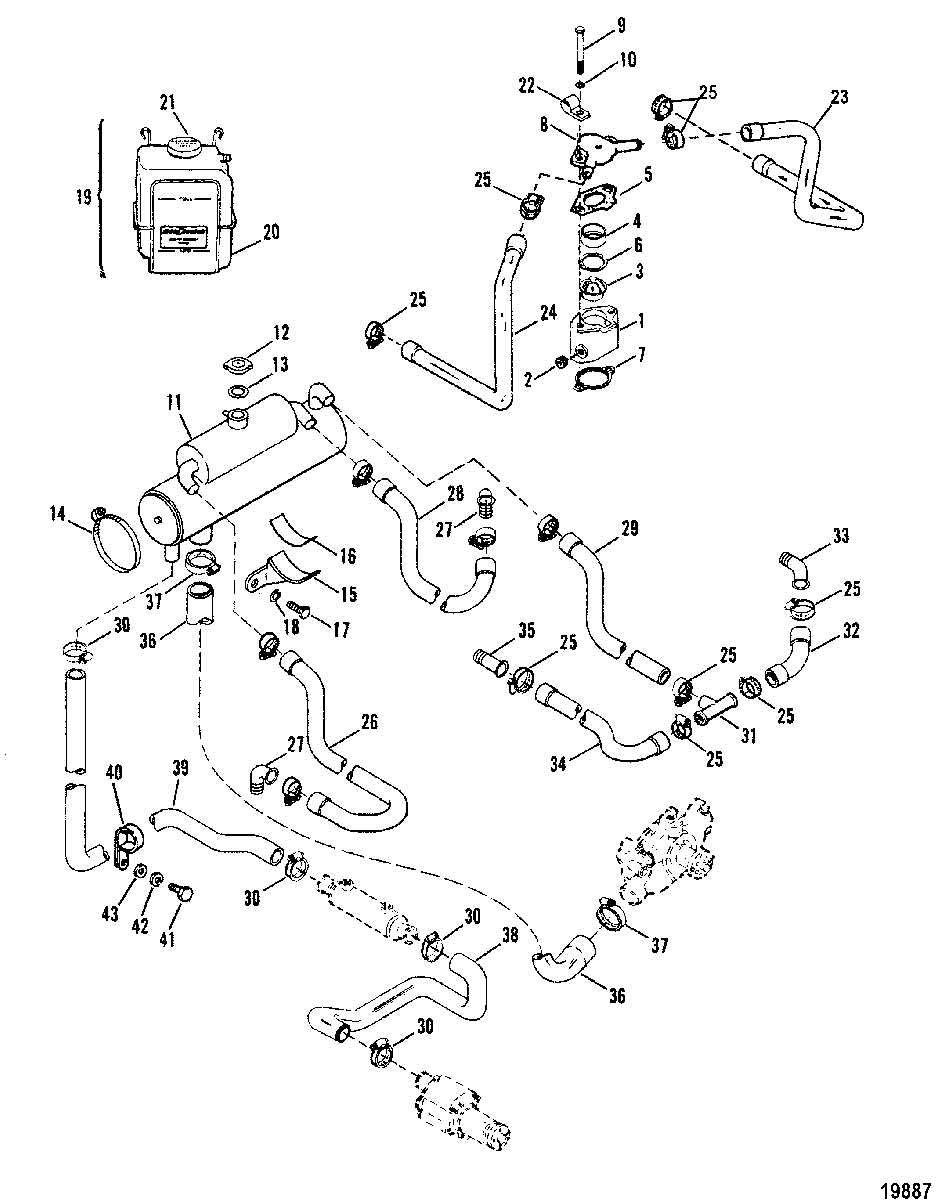

Closed Cooling System для Mercruiser - 5.7L MIE GM 350 V-8 1988-1993 0B788197 THRU 0F024999

  • №
    Артикул
    Название
  • 1
    55131A5 HOUSING, Thermostat
    HOUSING, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    8M0089715 THERMOSTAT, (140 Degrees) (143)
    THERMOSTAT, (140 Degrees) (143)
  • 4
    23-47508T SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 5
    27-488181 GASKET, THERMOSTAT HOUSING-UPPER
    GASKET, THERMOSTAT HOUSING-UPPER
  • 6
    27-47510 GASKET, THERMOSTAT HOUSING-MIDDLE
    GASKET, THERMOSTAT HOUSING-MIDDLE
  • 7
    27-530451 GASKET, THERMOSTAT HOUSING-LOWER
    GASKET, THERMOSTAT HOUSING-LOWER
  • 8
    47441A1 COVER, THERMOSTAT HOUSING
    COVER, THERMOSTAT HOUSING
  • 9
    10-48115 SCREW, (.375-16 x 3.50), THERMOSTAT HOUSING TO INTAKE MANIFOLD
    SCREW, (.375-16 x 3.50), THERMOSTAT HOUSING TO INTAKE MANIFOLD
  • 10
    13-35048 LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
    LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
  • 11
    78094A3 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • -
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • -
    27-65128 GASKET, End Cover
    GASKET, End Cover
  • -
    66221 COVER
    COVER
  • -
    10-66223 SCREW, End Cover
    SCREW, End Cover
  • -
    12-75451 WASHER
    WASHER
  • 12
    36-55143Q CAP, Pressure, PRESSURE-HEAT EXCHANGER
    CAP, Pressure, PRESSURE-HEAT EXCHANGER
  • 13
    27-71614 GASKET, PRESSURE CAP
    GASKET, PRESSURE CAP
  • 14
    54-815504372 CLAMP, HEAT EXCHANGER TO MOUNTING BRACKET
    CLAMP, HEAT EXCHANGER TO MOUNTING BRACKET
  • 15
    79437A2 BRACKET, MTG. (PORT)
    BRACKET, MTG. (PORT)
  • 15
    78092A1 BRACKET, MTG. (PORT-V-DRIVE)
    BRACKET, MTG. (PORT-V-DRIVE)
  • 15
    79438A3 BRACKET, MTG. (STBD)
    BRACKET, MTG. (STBD)
  • 15
    78093A3 BRACKET, MTG.(STBD)(V-DRIVE)
    BRACKET, MTG.(STBD)(V-DRIVE)
  • 16
    772233 PAD, MOUNTING BRACKET
    PAD, MOUNTING BRACKET
  • 17
    10-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
    SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
  • 18
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
  • 19
    71587A10 COOLANT RECOVERY KIT
    (Sold as a complete kit only)
    COOLANT RECOVERY KIT
    (Sold as a complete kit only)
  • 20
    71587A11 BOTTLE, PLASTIC
    BOTTLE, PLASTIC
  • 21
    72058 CAP, PLASTIC BOTTLE
    CAP, PLASTIC BOTTLE
  • 22
    54-97862 CLAMP, THERMOSTAT HOUSING SCREW
    CLAMP, THERMOSTAT HOUSING SCREW
  • 23
    32-160211 HOSE, THERMOSTAT COVER TO MANIFOLD (PORT)
    HOSE, THERMOSTAT COVER TO MANIFOLD (PORT)
  • 24
    32-871171 HOSE, THERMOSTAT COVER TO MANIFOLD (STARBOARD)
    HOSE, THERMOSTAT COVER TO MANIFOLD (STARBOARD)
  • 25
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 26
    32-19403 HOSE, RESERVOIR TO EXH. MANIFOLD (STARBOARD)
    HOSE, RESERVOIR TO EXH. MANIFOLD (STARBOARD)
  • 26
    32-919541 HOSE, RESERVOIR TO EXH. MANIFOLD (STARBOARD)(V-DRIVE)
    HOSE, RESERVOIR TO EXH. MANIFOLD (STARBOARD)(V-DRIVE)
  • 27
    22-36305T ELBOW, (90 Degrees), EXHAUST MANIFOLD-TOP (90)
    ELBOW, (90 Degrees), EXHAUST MANIFOLD-TOP (90)
  • 27
    22-865159 FITTING, (45 Degrees), EXHAUST MANIFOLD-TOP (45)(V-DRIVE)
    FITTING, (45 Degrees), EXHAUST MANIFOLD-TOP (45)(V-DRIVE)
  • 28
    32-19404 HOSE, RESERVOIR TO EXHAUST MANIFOLD (STARBOARD)
    HOSE, RESERVOIR TO EXHAUST MANIFOLD (STARBOARD)
  • 28
    32-97558 HOSE, RESERVOIR TO EXH. MANIFOLD (PORT)(V-DRIVE)
    HOSE, RESERVOIR TO EXH. MANIFOLD (PORT)(V-DRIVE)
  • 29
    32-8M0062665 HOSE, TEE TO RESERVOIR
    HOSE, TEE TO RESERVOIR
  • 29
    32-807405 HOSE, TEE TO RESERVOIR (V-DRIVE)
    HOSE, TEE TO RESERVOIR (V-DRIVE)
  • 30
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 31
    22-55133 TEE, FITTING
    TEE, FITTING
  • 32
    32-93634 HOSE, TEE TO EXHAUST ELBOW (PORT)
    HOSE, TEE TO EXHAUST ELBOW (PORT)
  • 32
    32-48132 HOSE, TEE TO EXHAUST ELBOW (PORT)(V-DRIVE)
    HOSE, TEE TO EXHAUST ELBOW (PORT)(V-DRIVE)
  • 33
    22-865159 FITTING, (45 Degrees), EXHAUST ELBOW-PORT (45)
    FITTING, (45 Degrees), EXHAUST ELBOW-PORT (45)
  • 34
    32-8M0062614 HOSE, TEE TO EXHAUST ELBOW (STARBOARD)
    HOSE, TEE TO EXHAUST ELBOW (STARBOARD)
  • 34
    32-8M0062614 HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOW (STARBOARD)(V-DRIVE)
    HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOW (STARBOARD)(V-DRIVE)
  • 35
    22-866725 FITTING, Straight, EXHAUST ELBOW-STARBOARD (STRAIGHT)
    FITTING, Straight, EXHAUST ELBOW-STARBOARD (STRAIGHT)
  • 36
    32-97525 HOSE, RESERVOIR TO WATER PUMP
    HOSE, RESERVOIR TO WATER PUMP
  • 37
    54-815504228 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 38
    32-92833 HOSE, WATER PUMP TO OIL COOLER
    HOSE, WATER PUMP TO OIL COOLER
  • 39
    32-92837 HOSE, RESERVOIR TO OIL COOLER
    HOSE, RESERVOIR TO OIL COOLER
  • 40
    54-47715 CLIP, HOSE
    CLIP, HOSE
  • 41
    10-47277 SCREW, (.312-24 x .750), HOSE CLIP
    SCREW, (.312-24 x .750), HOSE CLIP
  • 42
    13-39107 LOCKWASHER, (.312-24), CLIP SCREW
    LOCKWASHER, (.312-24), CLIP SCREW
  • 43
    12-26825 WASHER, (.328 x .750 x .06), CLIP SCREW
    WASHER, (.328 x .750 x .06), CLIP SCREW
  • -
    27-75611A88 GASKET SET, Engine
    GASKET SET, Engine
