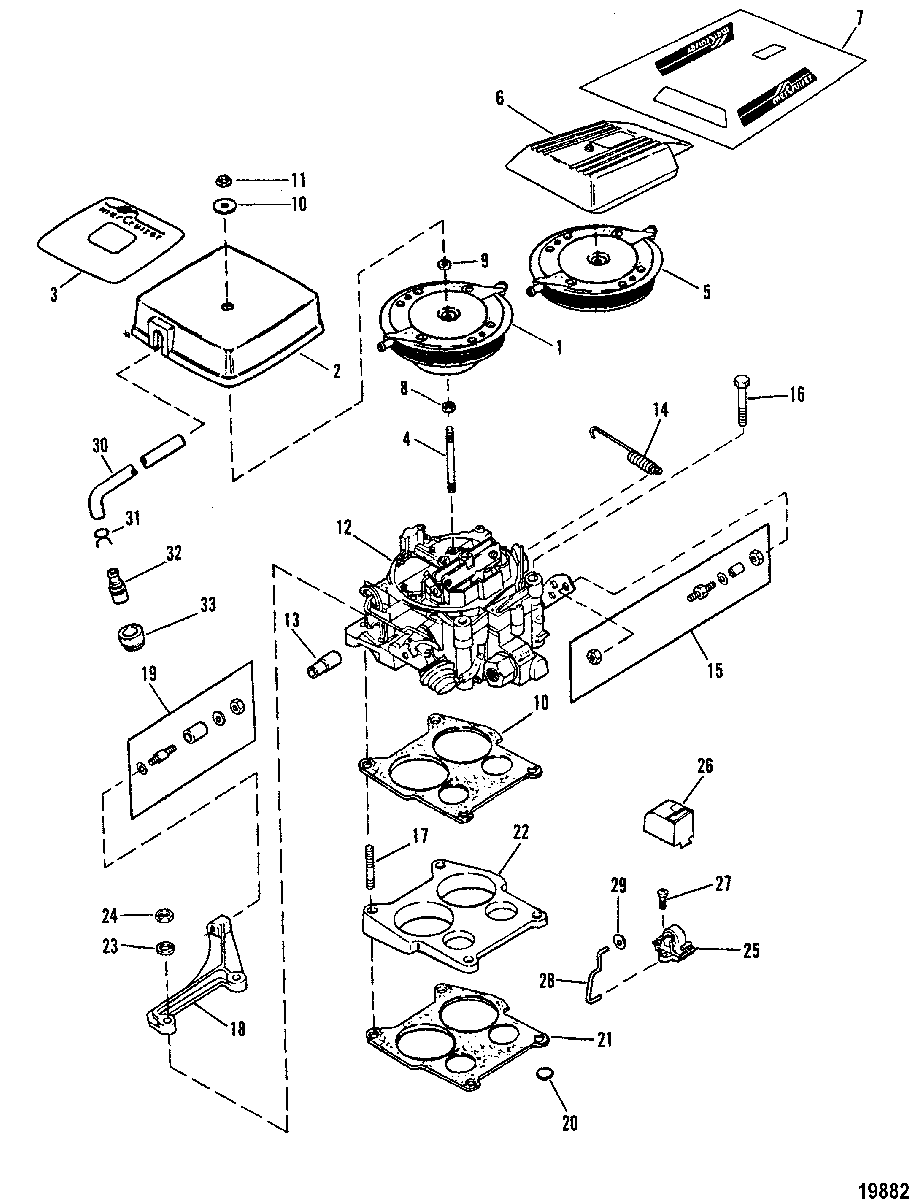

Carburetor and Linkage для Mercruiser - 5.7L MIE GM 350 V-8 1988-1993 0B788197 THRU 0F024999

  • №
    Артикул
    Название
  • 1
    805298A1 ARRESTOR ASSEMBLY, Flame
    (Design I)
    ARRESTOR ASSEMBLY, Flame
    (Design I)
  • 2
    15414A7 COVER, CARBURETOR
    (Design I)
    COVER, CARBURETOR
    (Design I)
  • 3
    37-94147 DECAL, HORSEPOWER (230)
    (Design I)
    DECAL, HORSEPOWER (230)
    (Design I)
  • 3
    37-93975 DECAL, HORSEPOWER (260)
    (Design I)
    DECAL, HORSEPOWER (260)
    (Design I)
  • 3
    37-178871 DECAL, HORSEPOWER (5.0L)
    (Design I)
    DECAL, HORSEPOWER (5.0L)
    (Design I)
  • 3
    37-178872 DECAL, HORSEPOWER (5.7L)
    (Design I)
    DECAL, HORSEPOWER (5.7L)
    (Design I)
  • 4
    16-91842 STUD, FLAME ARRESTOR
    (Design I)
    STUD, FLAME ARRESTOR
    (Design I)
  • 4
    16-805161 STUD, FLAME ARRESTOR
    (Design II)
    STUD, FLAME ARRESTOR
    (Design II)
  • 5
    805298A1 FLAME ARRESTOR NEW DESIGN
    (Design II)
    FLAME ARRESTOR NEW DESIGN
    (Design II)
  • 6
    18484A3 COVER, CARBURETOR
    (Design II)
    COVER, CARBURETOR
    (Design II)
  • 7
    37-812776A13 DECAL SET (5.0L)
    (Design II)
    DECAL SET (5.0L)
    (Design II)
  • 7
    37-812776A14 DECAL SET (5.7L)
    (Design II)
    DECAL SET (5.7L)
    (Design II)
  • 8
    11-8267139 NUT, JAM - FLAME ARRESTOR
    NUT, JAM - FLAME ARRESTOR
  • 9
    12-26907 WASHER, FLAME ARRESTOR STUD
    WASHER, FLAME ARRESTOR STUD
  • 10
    12-86400 WASHER, SEALING
    WASHER, SEALING
  • 11
    11-826709109 NUT, (.250-28), FLAME ARRESTOR STUD
    NUT, (.250-28), FLAME ARRESTOR STUD
  • 12
    1347-804623R02 CARBURETOR ASSEMBLY (230 - 5.0L)
    CARBURETOR ASSEMBLY (230 - 5.0L)
  • 12
    1347-804624R02 CARBURETOR ASSEMBLY (260 - 5.7L)
    CARBURETOR ASSEMBLY (260 - 5.7L)
  • 13
    22-97282 CONNECTOR, CARBURETOR
    CONNECTOR, CARBURETOR
  • 14
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 15
    16-97477A3 STUD KIT, THROTTLE CABLE
    STUD KIT, THROTTLE CABLE
  • 16
    10-74822 SCREW, (3.5 In.), CARBURETOR (3-1/2") HORIZONTAL MOUNTING
    SCREW, (3.5 In.), CARBURETOR (3-1/2") HORIZONTAL MOUNTING
  • 17
    16-63332 STUD, (.312 x 1.2812), CARBURETOR
    STUD, (.312 x 1.2812), CARBURETOR
  • 17
    16-46857 STUD, (5/16 x 1-7/8), CARBURETOR (1-7/8") HORIZONTAL MOUNTING
    STUD, (5/16 x 1-7/8), CARBURETOR (1-7/8") HORIZONTAL MOUNTING
  • 17
    16-53724 STUD, (5/16 x 1-3/4), CARBURETOR (1-3/4")
    STUD, (5/16 x 1-3/4), CARBURETOR (1-3/4")
  • 17
    16-97941 STUD, CARBURETOR (2")
    STUD, CARBURETOR (2")
  • 17
    16-97940 STUD, CARBURETOR (2-1/8") HORIZONTAL MOUNTING
    STUD, CARBURETOR (2-1/8") HORIZONTAL MOUNTING
  • 17
    16-53722 STUD, (5/16 x 4-3/8), CARBURETOR (4-3/8")
    STUD, (5/16 x 4-3/8), CARBURETOR (4-3/8")
  • 18
    49929 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 18
    41329A5 BRACKET, THROTTLE CABLE (HORIZONTAL MOUNTING)
    BRACKET, THROTTLE CABLE (HORIZONTAL MOUNTING)
  • 19
    16-73563A1 STUD KIT, THROTTLE CABLE
    STUD KIT, THROTTLE CABLE
  • 20
    22-12524 PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
  • 21
    27-524572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 22
    53513A4 WEDGE, CARBURETOR
    WEDGE, CARBURETOR
  • 23
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 24
    11-862902 NUT, (.9375-24), CARBURETOR STUD
    NUT, (.9375-24), CARBURETOR STUD
  • 25
    71464A01 CHOKE, AUTOMATIC - CARBURETOR
    CHOKE, AUTOMATIC - CARBURETOR
  • 26
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 27
    10-69235 SCREW, (.190-24 x .500), AUTOMATIC CHOKE THERMOSTAT
    SCREW, (.190-24 x .500), AUTOMATIC CHOKE THERMOSTAT
  • 28
    60915 ROD, CHOKE
    ROD, CHOKE
  • 28
    61112 ROD, CHOKE (HORIZONTAL MOUNTING)
    ROD, CHOKE (HORIZONTAL MOUNTING)
  • 29
    54-59989 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
  • 30
    32-8M0062669 HOSE, VENT - CARBURETOR (11-1/4")
    HOSE, VENT - CARBURETOR (11-1/4")
  • 30
    32-8M0086022 HOSE, Breather VENT (CORRUGATED)
    HOSE, Breather VENT (CORRUGATED)
  • 31
    54-53101 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • 32
    47957 CONNECTOR, VENT HOSE (STRAIGHT)
    CONNECTOR, VENT HOSE (STRAIGHT)
  • 32
    97850T ELBOW, 90 Degree, Breather - VENT HOSE
    ELBOW, 90 Degree, Breather - VENT HOSE
  • 33
    23-8M0071559 GROMMET, ROCKER COVER
    GROMMET, ROCKER COVER
