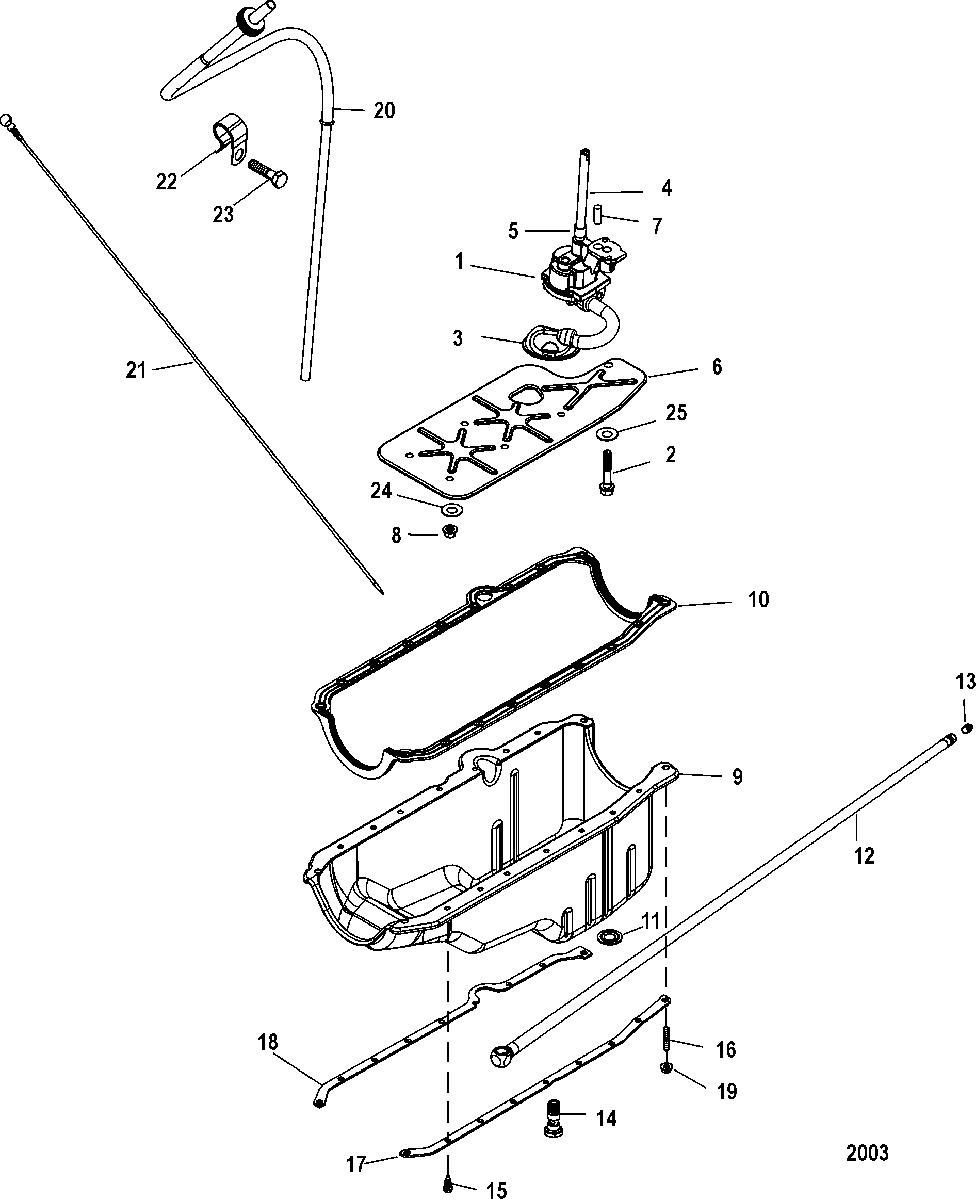

Oil Pan and Oil Pump для Mercruiser - 5.7L CARB SKI 0W694844 & Up
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLY, Oil, OilPUMP ASSEMBLY, Oil, Oil
-
210-17346 SCREW, Oil PumpSCREW, Oil Pump
-
3809909 SCREEN, Oil Pump Pick-UpSCREEN, Oil Pump Pick-Up
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 DEFLECTOR, OilDEFLECTOR, Oil
-
717-843378 PIN, Dowel, Alignment,Oil PumpPIN, Dowel, Alignment,Oil Pump
-
811-845602 NUT, (.375-16)NUT, (.375-16)
-
9809910 PAN, OilPAN, Oil
-
1027-138651 GASKET, Oil PanGASKET, Oil Pan
-
1127-8M0077608 GASKET, DrainGASKET, Drain
-
1232-805505A1 HOSE ASSEMBLY, DrainHOSE ASSEMBLY, Drain
-
1322-805506 PLUG, PipePLUG, Pipe
-
14807497 BOLT, Banjo (M12)BOLT, Banjo (M12)
-
1510-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1616-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1714257 REINFORCEMENT
(Port)REINFORCEMENT
(Port) -
1814256 REINFORCEMENT
(Starboard)REINFORCEMENT
(Starboard) -
1911-11971 NUT, (.312-18)NUT, (.312-18)
-
20860274A2 TUBE ASSEMBLY, DipstickTUBE ASSEMBLY, Dipstick
-
21861942T7 DIPSTICKDIPSTICK
-
2254-805625 CLIP, Dipsitck TubeCLIP, Dipsitck Tube
-
2310-8M0040582 SCREWSCREW
-
2412-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2512-27339 WASHERWASHER
-
-8M0088397 LONGBLOCK ASSEMBLY, 2 BarrelLONGBLOCK ASSEMBLY, 2 Barrel
-
-800-866138A03 LONGBLOCK ASSEMBLY, 4 BarrelLONGBLOCK ASSEMBLY, 4 Barrel
-
-27-861246A05 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
