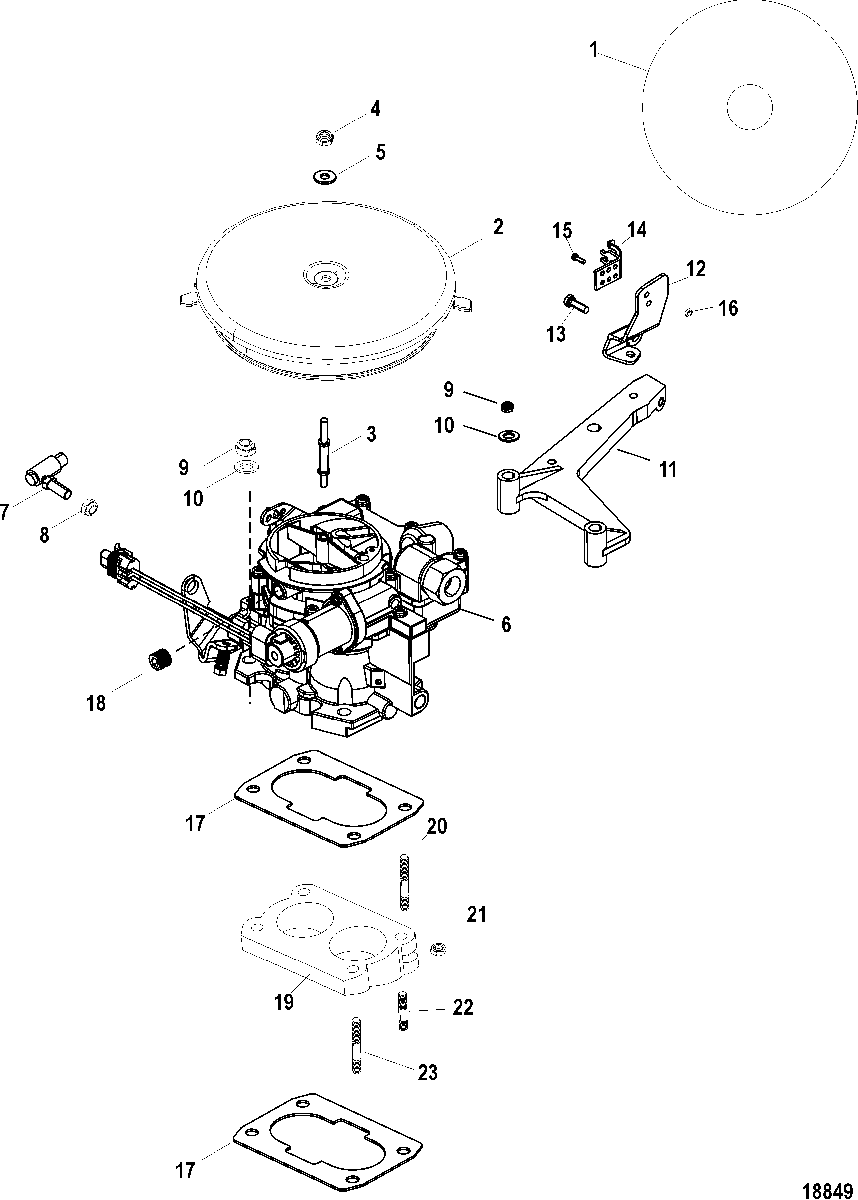

Carburetor and Throttle Linkage, 2 Barrel для Mercruiser - 5.7L CARB SKI 0W694844 & Up

  • №
    Артикул
    Название
  • 1
    37-8M2018269 DECAL, Flame Arrestor
    DECAL, Flame Arrestor
  • 2
    863200 FLAME ARRESTOR
    FLAME ARRESTOR
  • 3
    16-8M0113181 STUD, (.250-20/.250-28 x Special) (3 Inch)
    STUD, (.250-20/.250-28 x Special) (3 Inch)
  • 4
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 5
    12-86400 WASHER
    WASHER
  • 6
    3310-866143A03 CARBURETOR
    CARBURETOR
  • 7
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 8
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
  • 9
    11-862902 NUT, (.312-24)
    NUT, (.312-24)
  • 10
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 10
    12-26825 WASHER, (.328 x .750 x .06)
    WASHER, (.328 x .750 x .06)
  • 11
    805489T BRACKET
    BRACKET
  • 12
    807494T BRACKET
    BRACKET
  • 13
    10-36137 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 14
    807485T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 15
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 16
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 17
    27-866027 GASKET
    GASKET
  • 18
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 19
    807265A1 WEDGE
    WEDGE
  • 20
    16-807975 STUD, (.312 x 2.370)
    STUD, (.312 x 2.370)
  • 21
    11-862902 NUT, (.312-24)
    NUT, (.312-24)
  • 22
    16-63332 STUD, (.312 x 1.2812)
    STUD, (.312 x 1.2812)
  • 23
    16-70237 STUD, (.312-18/.312-24 x 2.620)
    STUD, (.312-18/.312-24 x 2.620)
