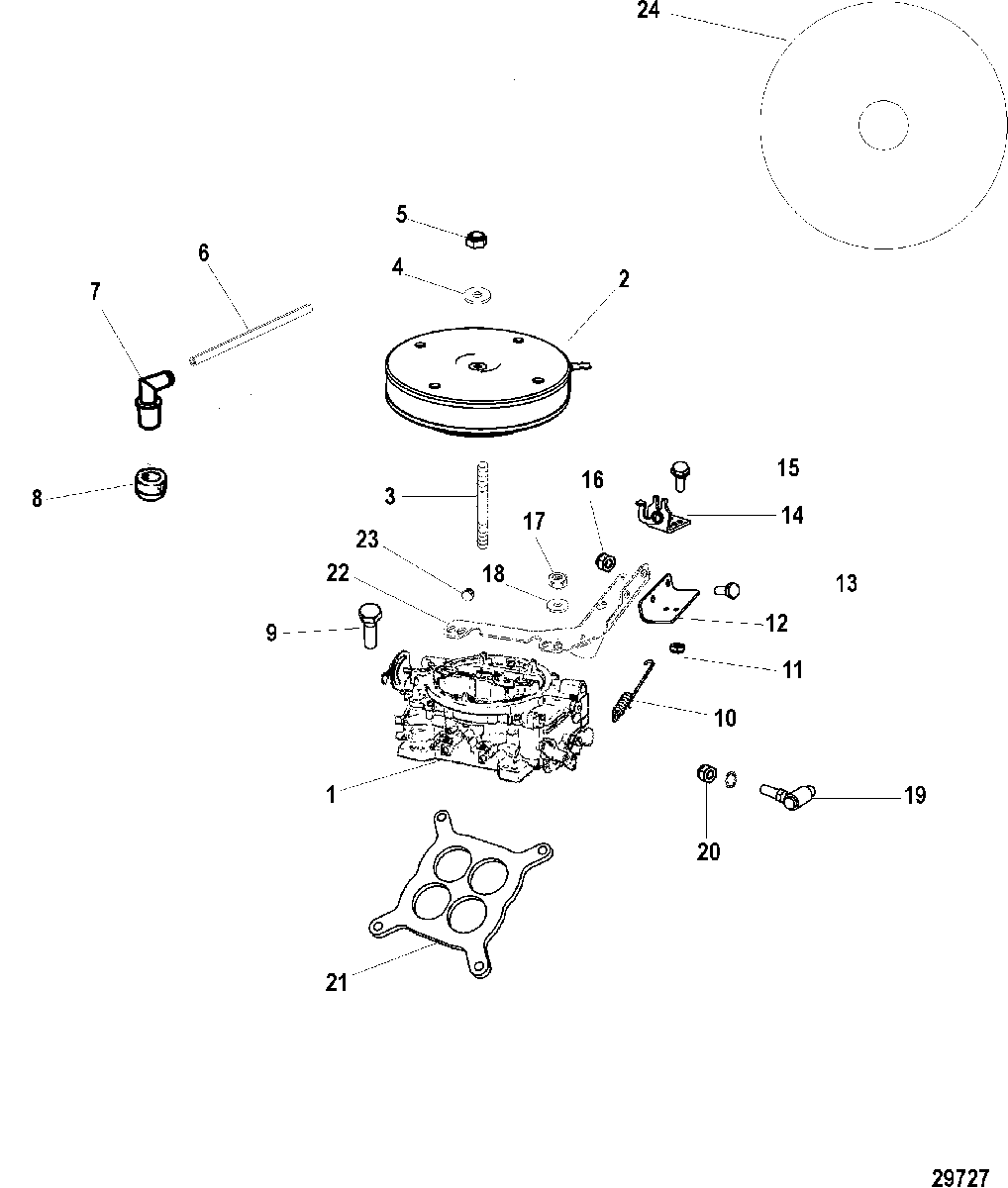

Carburetor and Throttle Linkage, Four Barrel для Mercruiser - 5.7L CARB SKI 0W694844 & Up

  • №
    Артикул
    Название
  • 1
    3310-879194070 CARBURETOR, 4 Barrel
    CARBURETOR, 4 Barrel
  • 2
    8M0113514 ARRESTOR, Flame
    ARRESTOR, Flame
  • 3
    16-91842 STUD
    STUD
  • 4
    12-86400 WASHER
    WASHER
  • 5
    11-8267138 NUT, (.25-20)
    NUT, (.25-20)
  • 6
    32-8M0062321 HOSE, (33.00 Inches Bulk)
    HOSE, (33.00 Inches Bulk)
  • 7
    97850T ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 8
    23-8M0071559 GROMMET
    GROMMET
  • 9
    10-53576 SCREW, (.312-18 x 1.125)
    SCREW, (.312-18 x 1.125)
  • 10
    24-897454 SPRING
    SPRING
  • 11
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 12
    807805 BRACKET
    BRACKET
  • 13
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
  • 14
    807485 BRACKET
    BRACKET
  • 15
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 16
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 17
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 18
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 19
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
  • 20
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 21
    27-41609 GASKET
    GASKET
  • 22
    805359T BRACKET
    BRACKET
  • 23
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 24
    37-8M2018268 DECAL, Flame Arrestor
    DECAL, Flame Arrestor
