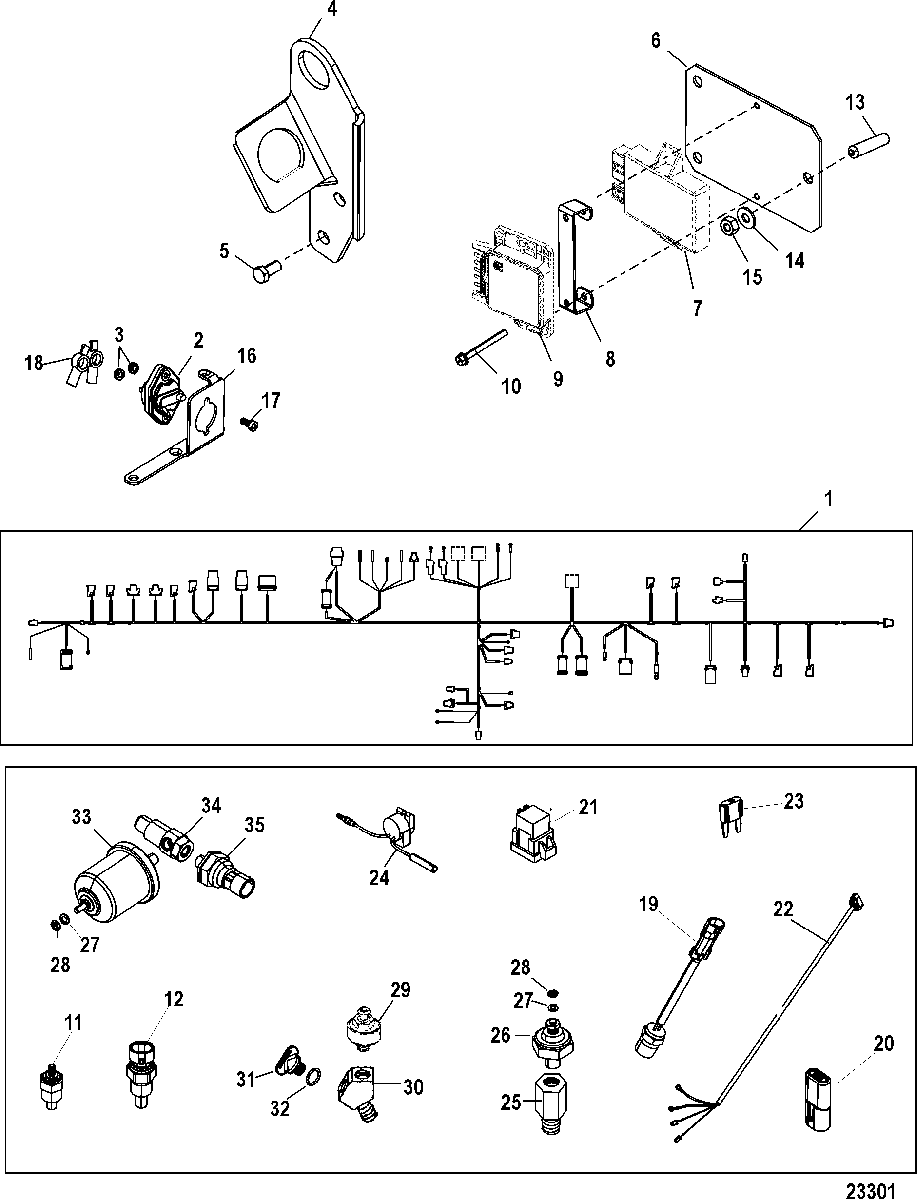

Electrical Components для Mercruiser - 5.7L CARB SKI 0W694844 & Up

  • №
    Артикул
    Название
  • 1
    84-862164T04 HARNESS ASSEMBLY, 2 Barrel
    HARNESS ASSEMBLY, 2 Barrel
  • 1
    84-879194071 HARNESS ASSEMBLY, 4 Barrel
    HARNESS ASSEMBLY, 4 Barrel
  • 2
    88-11178A01 BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A173702 & Below
    BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A173702 & Below
  • 2
    88-11178A01 BREAKER, Circuit - 50 Ampere, Button Reset
    SN# 2A173703 & Up
    BREAKER, Circuit - 50 Ampere, Button Reset
    SN# 2A173703 & Up
  • 3
    11-826709106 NUT, (#10-32) Stainless Steel
    SN# 2A173702 & Below
    NUT, (#10-32) Stainless Steel
    SN# 2A173702 & Below
  • 3
    11-68219 NUT, (#10-32) Stainless Steel
    SN# 2A173703 & Up
    NUT, (#10-32) Stainless Steel
    SN# 2A173703 & Up
  • 4
    899719T02 BRACKET, Harness Mounting/Lifting Eye
    BRACKET, Harness Mounting/Lifting Eye
  • 5
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 6
    861516 BRACKET
    BRACKET
  • 7
    861543T02 ICM MODULE, Ignition Control Module, 2 Barrel
    ICM MODULE, Ignition Control Module, 2 Barrel
  • 7
    879194073 MODULE, ICM - 4 Barrel
    MODULE, ICM - 4 Barrel
  • 8
    861517 BRACKET
    BRACKET
  • 9
    806611T MODULE, Knock Control
    MODULE, Knock Control
  • 10
    10-41408 SCREW, (#10-32 x 1.50)
    SCREW, (#10-32 x 1.50)
  • 11
    806490T SENDER
    SENDER
  • 11
    49734 SENDER
    (Dual Station)
    SENDER
    (Dual Station)
  • 12
    805218T SENSOR
    SENSOR
  • 13
    10-24323 SET SCREW, (.250-20 x 1.25)
    SET SCREW, (.250-20 x 1.25)
  • 14
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 15
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 16
    899719T01 BRACKET
    BRACKET
  • 17
    10-830861 SCREW, (#8-32 x .625)
    SN# 2A173702 & Below
    SCREW, (#8-32 x .625)
    SN# 2A173702 & Below
  • 17
    10-45862 SCREW, (#10-32 x .875)
    SN# 2A173703 & Up
    SCREW, (#10-32 x .875)
    SN# 2A173703 & Up
  • 18
    85-89919 BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 19
    87-866089 THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start
    THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start
  • 20
    83-865913A01 DIODE ASSEMBLY
    DIODE ASSEMBLY
  • 21
    882751 RELAY
    RELAY
  • 22
    84-866734T01 HARNESS ASSEMBLY, Transmission
    HARNESS ASSEMBLY, Transmission
  • 23
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 23
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 24
    816492A6 ALARM KIT
    ALARM KIT
  • 25
    22-32974 FITTING, (.125-27) Adaptor
    FITTING, (.125-27) Adaptor
  • 26
    87-805605A1 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 27
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 28
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 29
    806612T SENSOR, Knock
    SENSOR, Knock
  • 30
    22-8067051 FITTING, Dual
    FITTING, Dual
  • 31
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    (5.0L Alpha)
    PLUG KIT, (.500-13) Royal Blue
    (5.0L Alpha)
  • 32
    25-62706 O-RING, (.426 x .070)
    (5.0L Alpha)
    O-RING, (.426 x .070)
    (5.0L Alpha)
  • 33
    8M0068784 SENDER ASSEMBLY
    SENDER ASSEMBLY
  • 33
    37293T SENDER ASSEMBLY
    (Dual Station)
    SENDER ASSEMBLY
    (Dual Station)
  • 34
    22-864669 FITTING
    FITTING
  • 35
    87-8M0070108 SWITCH, Oil Pressure
    SWITCH, Oil Pressure
