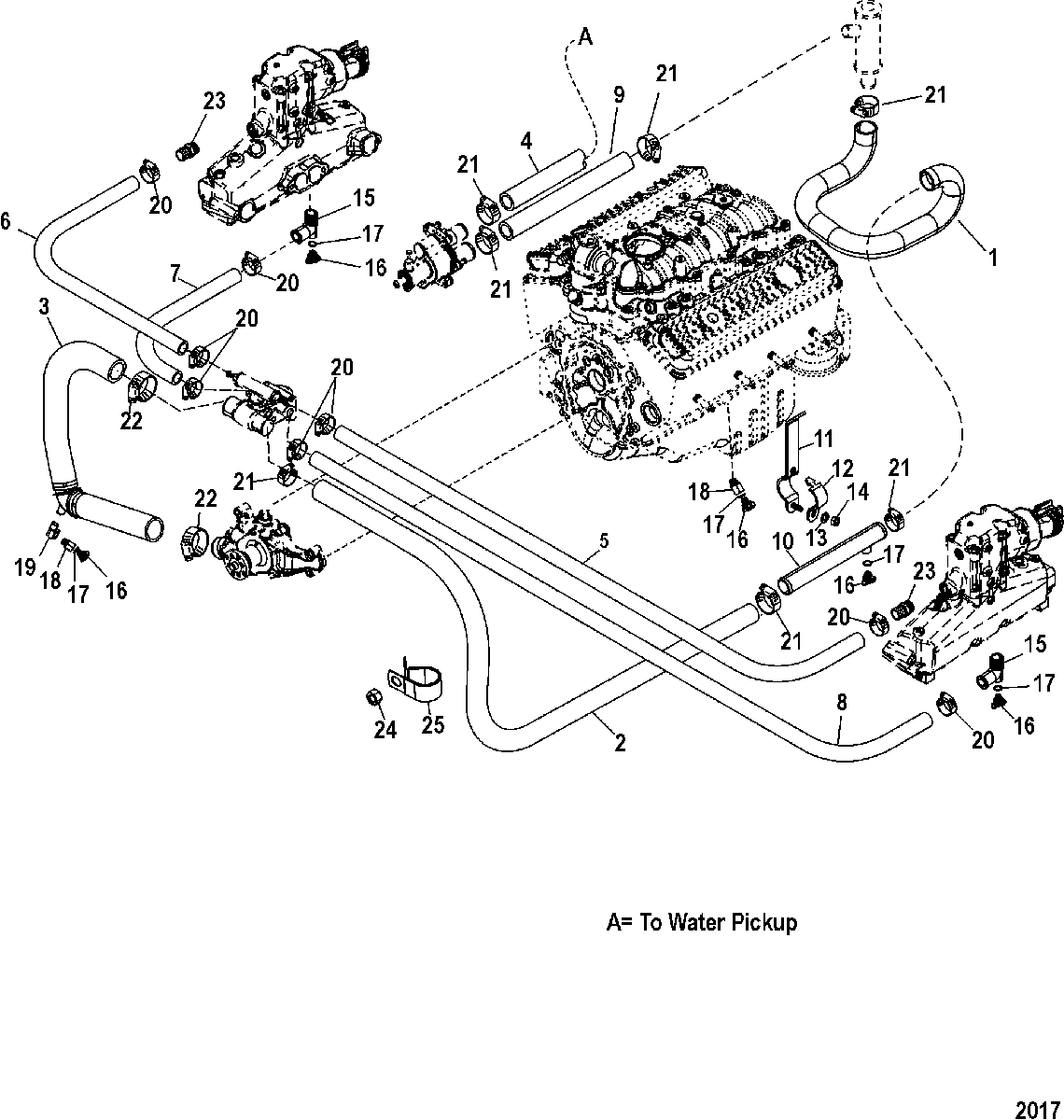

Standard Cooling System для Mercruiser - 5.7L CARB SKI 0W090900 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    32-808032 HOSE, Molded, Transmision Cooler to Hose Extender
    HOSE, Molded, Transmision Cooler to Hose Extender
  • 2
    32-808033 HOSE, Molded, Hose Extender to Thermostat Housing
    HOSE, Molded, Hose Extender to Thermostat Housing
  • 3
    32-861590A05 HOSE ASSEMBLY, Circulating Pump to Thermostat Housing
    HOSE ASSEMBLY, Circulating Pump to Thermostat Housing
  • 4
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Transom Water PickUP
    HOSE, (96.00 Inches Bulk), Sea Water Pump to Transom Water PickUP
  • 5
    32-864977 HOSE, Thermostat Housing to Elbow (Port)
    HOSE, Thermostat Housing to Elbow (Port)
  • 6
    32-864979 HOSE, Thermostat Housing to Elbow (Starboard)
    HOSE, Thermostat Housing to Elbow (Starboard)
  • 7
    32-807697 HOSE, Thermostat Housing to Lower Exh. Manifold (Starboard)
    HOSE, Thermostat Housing to Lower Exh. Manifold (Starboard)
  • 8
    32-8066351 HOSE, Thermostat Housing to Lower Exh. Manifold (Port)
    HOSE, Thermostat Housing to Lower Exh. Manifold (Port)
  • 9
    32-866331 HOSE, (4.00 Inches), Sea Water Pump to Transmision Cooler
    HOSE, (4.00 Inches), Sea Water Pump to Transmision Cooler
  • 10
    860315A1 TUBE, Hose Extender
    TUBE, Hose Extender
  • 11
    860418T BRACKET, Hose Extender
    BRACKET, Hose Extender
  • 12
    860417T CLAMP, Hose Extender Bracket
    CLAMP, Hose Extender Bracket
  • 13
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 14
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 15
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 16
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue, Drain Fitting
    PLUG KIT, (.500-13) Royal Blue, Drain Fitting
  • 17
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 18
    22-860088 BUSHING
    BUSHING
  • 19
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 20
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 21
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 22
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 23
    22-866725 FITTING, (.750-14), Barb
    FITTING, (.750-14), Barb
  • 24
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 25
    54-47715 CLIP
    CLIP
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
