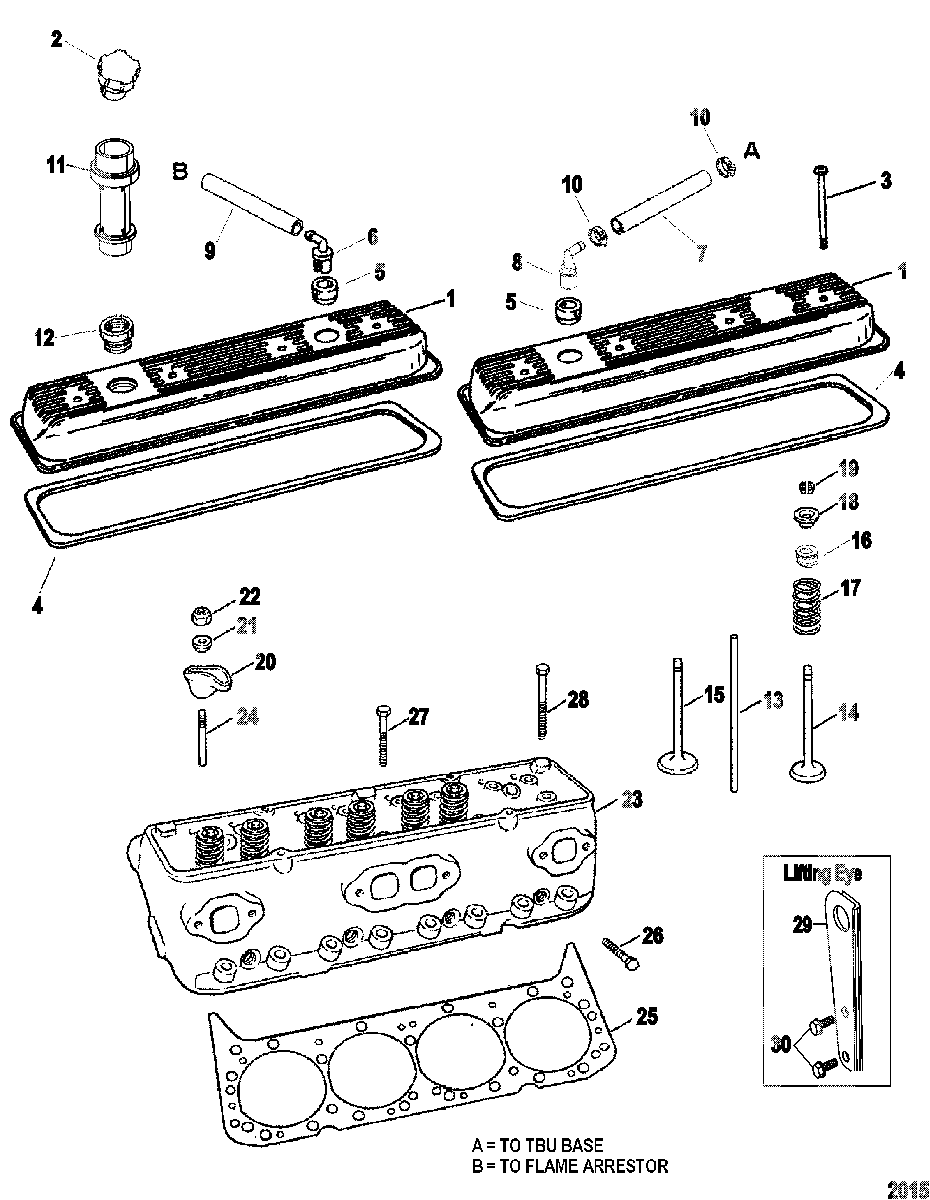

Cylinder Head and Rocker Cover для Mercruiser - 5.7L CARB SKI 0W090900 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    809995 COVER, Rocker
    (With Oil Fill Hole)
    COVER, Rocker
    (With Oil Fill Hole)
  • 1
    8M0086350 COVER, Rocker
    (With Out Oil Fill Hole)
    COVER, Rocker
    (With Out Oil Fill Hole)
  • 2
    36-18710002 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 5
    23-8M0071559 GROMMET
    GROMMET
  • 6
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 7
    32-8M0062321 HOSE, (33.00 Inches Bulk)
    HOSE, (33.00 Inches Bulk)
  • 8
    21-8M2017060 VALVE, PCV
    VALVE, PCV
  • 9
    32-8M0062669 TUBING, (24.00 Inches Bulk), Breather
    (Cut to 11.50 Inch Length)
    TUBING, (24.00 Inches Bulk), Breather
    (Cut to 11.50 Inch Length)
  • 10
    54-815504105 CLAMP, Worm Gear (11-18 mm), Hose
    CLAMP, Worm Gear (11-18 mm), Hose
  • 11
    807688T TUBE, Oil Fill
    TUBE, Oil Fill
  • 12
    26-805622 GROMMET, Oil Fill Tube
    GROMMET, Oil Fill Tube
  • 13
    173391 PUSH ROD
    PUSH ROD
  • 14
    8243171 VALVE, Exhaust
    (Standard)
    VALVE, Exhaust
    (Standard)
  • 14
    8243181 VALVE, Exhaust
    (.030 Oversize)
    VALVE, Exhaust
    (.030 Oversize)
  • 15
    809992 VALVE, Intake (Standard)
    VALVE, Intake (Standard)
  • 16
    26-8M0050563 SEAL, Valve
    (Intake)
    SEAL, Valve
    (Intake)
  • 16
    26-804507 SEAL, Valve
    (Exhaust)
    SEAL, Valve
    (Exhaust)
  • 17
    24-483471 SPRING
    SPRING
  • 18
    483481 CAP
    CAP
  • 19
    28-547971 KEY
    KEY
  • 20
    35329 ARM KIT, Rocker
    ARM KIT, Rocker
  • 21
    35331 BALL, Rocker Arm
    BALL, Rocker Arm
  • 22
    11-34516 NUT
    NUT
  • 23
    938-8M0115137 CYLINDER HEAD ASSEMBLY, Cylinder
    CYLINDER HEAD ASSEMBLY, Cylinder
  • 24
    16-34522 STUD
    (.003 Oversized)
    STUD
    (.003 Oversized)
  • 24
    16-34521 STUD
    (.013 Oversized)
    STUD
    (.013 Oversized)
  • 25
    27-75611001 GASKET
    GASKET
  • 26
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 27
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 28
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • 29
    806815T BRACKET, Lifting Eye
    BRACKET, Lifting Eye
  • 30
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • -
    8M0088397 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
