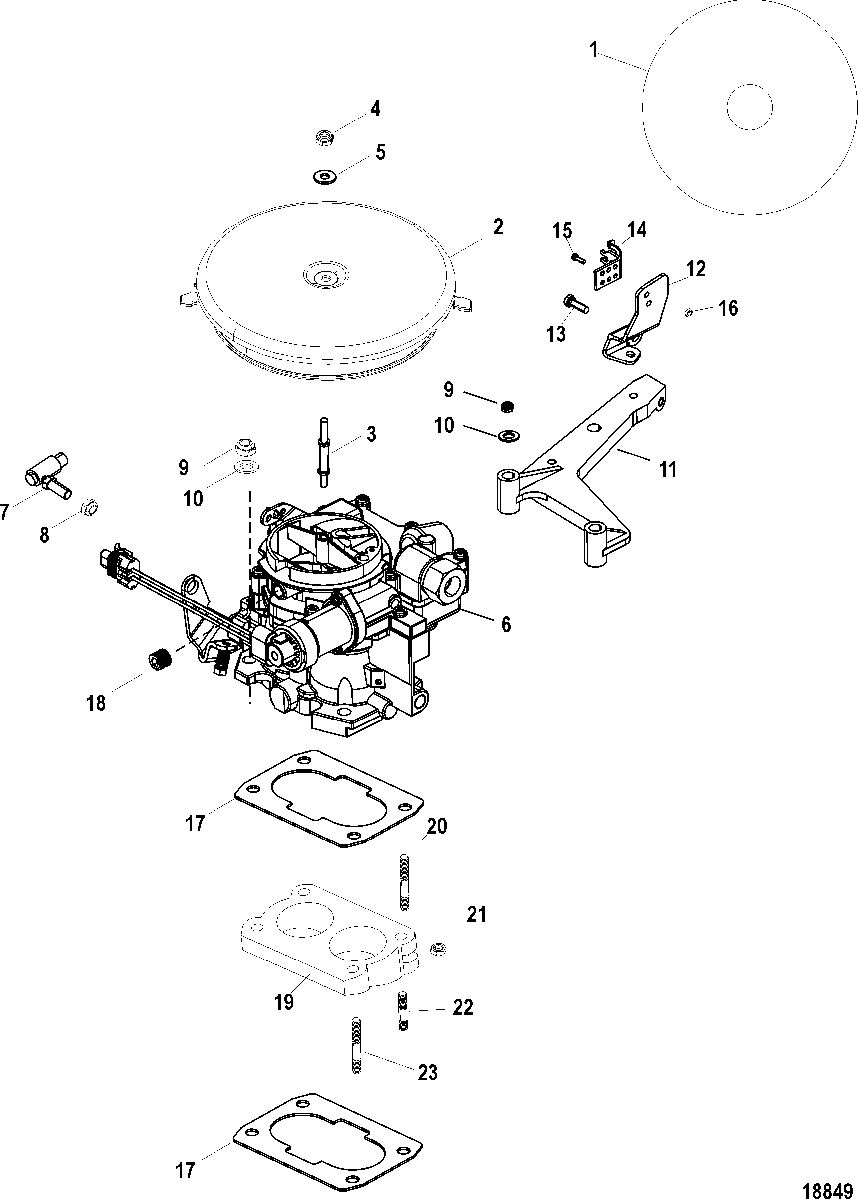

Carburetor and Throttle Linkage для Mercruiser - 5.7L CARB SKI 0W090900 THRU 0W689999
-
№АртикулНазвание
-
137-8M2018262 DECAL, Carburetor CoverDECAL, Carburetor Cover
-
2863200 FLAME ARRESTORFLAME ARRESTOR
-
316-8M0113181 STUD, (.250-20/.250-28 x Special) (3 Inch)STUD, (.250-20/.250-28 x Special) (3 Inch)
-
411-8267139 NUT, (.250-28)NUT, (.250-28)
-
512-86400 WASHERWASHER
-
63310-866143A03 CARBURETORCARBURETOR
-
711-8267089 NUT, (.250-28)NUT, (.250-28)
-
8807484 BALL JOINT ASSEMBLY, Quick ReleaseBALL JOINT ASSEMBLY, Quick Release
-
911-862902 NUT, (.312-24)NUT, (.312-24)
-
1012-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
1012-26825 WASHER, (.328 x .750 x .06)WASHER, (.328 x .750 x .06)
-
11805489T BRACKETBRACKET
-
12807494T BRACKETBRACKET
-
1310-36137 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
14807485T BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1510-89766 SCREW, (#10-32 x .620) Stainless SteelSCREW, (#10-32 x .620) Stainless Steel
-
1611-826709106 NUT, (#10-32)NUT, (#10-32)
-
1727-866027 GASKETGASKET
-
1822-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
19807265A1 WEDGEWEDGE
-
2016-807975 STUD, (.312 x 2.370)STUD, (.312 x 2.370)
-
2111-862902 NUT, (.312-24)NUT, (.312-24)
-
2216-63332 STUD, (.312 x 1.2812)STUD, (.312 x 1.2812)
-
2316-70237 STUD, (.312-18/.312-24 x 2.620)STUD, (.312-18/.312-24 x 2.620)
