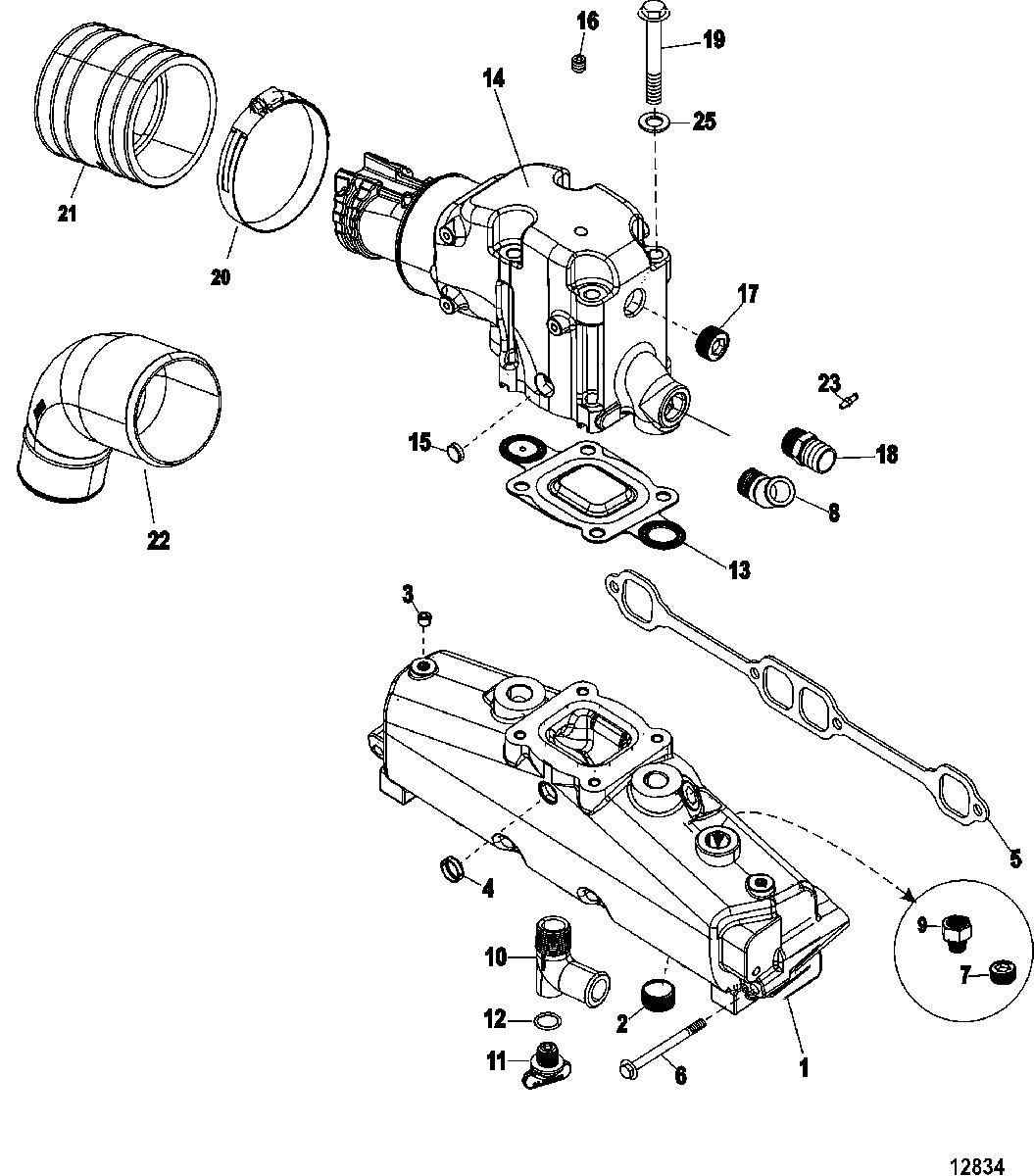

Exhaust Manifold and Elbow для Mercruiser - 5.7L CARB SKI 0W090900 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    865735A02 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 4
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 5
    27-33395 GASKET
    GASKET
  • 6
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 7
    22-12524 PLUG, (.375-18 x .475) Brass
    (Port)
    PLUG, (.375-18 x .475) Brass
    (Port)
  • 8
    22-865159 FITTING, (45 Degree)
    (Starboard)
    FITTING, (45 Degree)
    (Starboard)
  • 9
    22-63835 ELBOW, 45 Degree
    (Starboard)
    ELBOW, 45 Degree
    (Starboard)
  • 10
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 11
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 12
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 13
    27-864850A02 GASKET, Elbow(Restrictor)
    GASKET, Elbow(Restrictor)
  • 14
    864309T02 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 15
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 16
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 17
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 18
    22-864623A1 FITTING ASSEMBLY, Barb (With Tapped Fitting)
    (Port)
    FITTING ASSEMBLY, Barb (With Tapped Fitting)
    (Port)
  • 18
    22-866725 FITTING, (.750-14), Barb (Without Tapped Fitting)
    (Starboard)
    FITTING, (.750-14), Barb (Without Tapped Fitting)
    (Starboard)
  • 19
    10-865982045 SCREW, (.375-16 x 7.50)
    SCREW, (.375-16 x 7.50)
  • 19
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 20
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 21
    32-44348001 TUBE, Exhaust
    TUBE, Exhaust
  • 22
    807153T PIPE, Exhaust
    PIPE, Exhaust
  • 23
    22-16604 FITTING, Straight (.125-27), Barb
    FITTING, Straight (.125-27), Barb
  • 25
    12-34714 WASHER
    WASHER
  • -
    8M0088397 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
