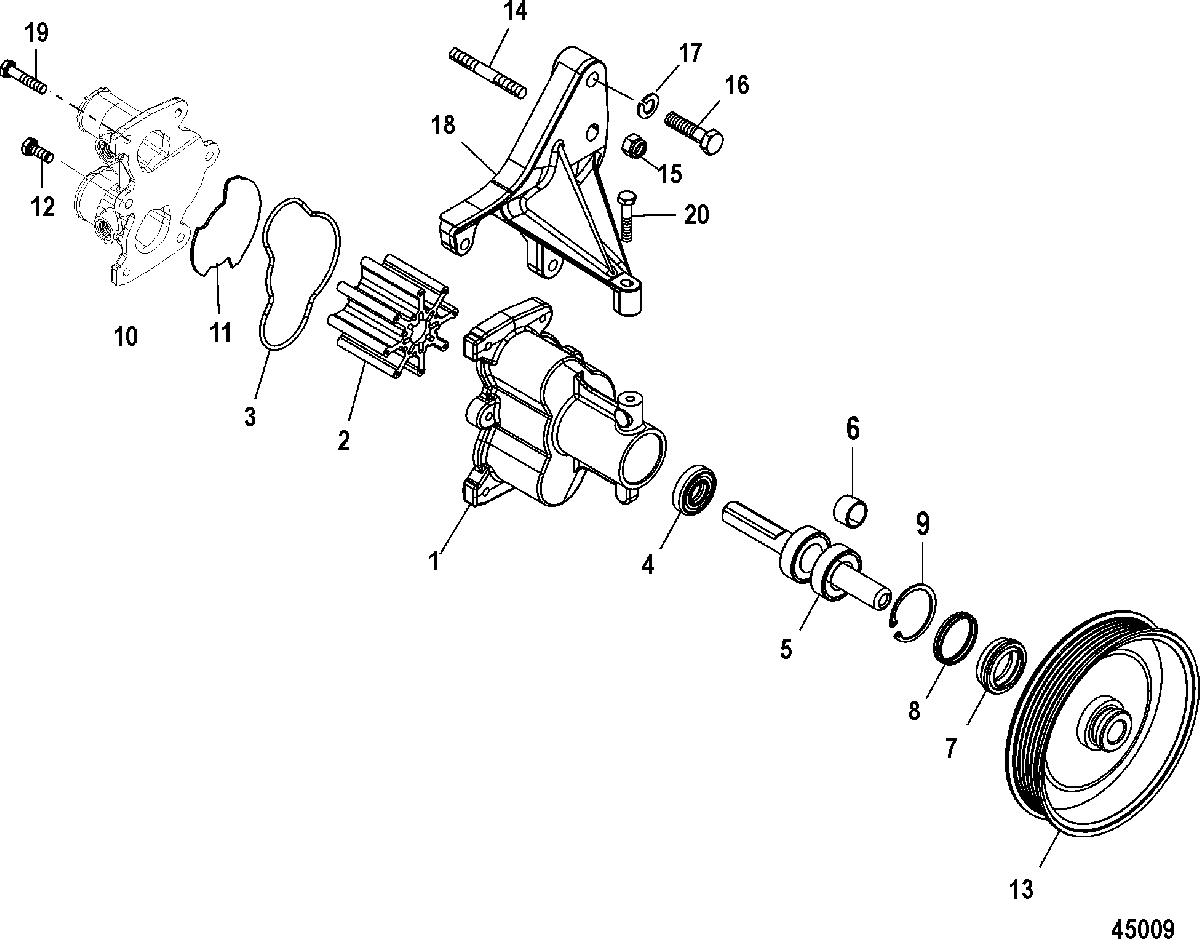

Sea Water Pump Assembly для Mercruiser - 383 STROKER SCORPION 1G300000 & Up

  • №
    Артикул
    Название
  • -
    46-8M0137216 PUMP KIT, Sea Water
    PUMP KIT, Sea Water
  • 1
    8M0118062 HOUSING ASSEMBLY, Impeller
    HOUSING ASSEMBLY, Impeller
  • 2
    47-8M0104229 IMPELLER
    IMPELLER
  • 3
    8M2021987 O-RING, Formed (Also included with Reference 8 and 9)
    O-RING, Formed (Also included with Reference 8 and 9)
  • -
    8M0050018 DRIVESHAFT ASSEMBLY KIT
    DRIVESHAFT ASSEMBLY KIT
  • 4
    26-8M2001645 SEAL
    SEAL
  • 5
    8M0050018 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 6
    NSS NOT SOLD SEPARATE, SPACER
    SN# 1A623371 & Up
    NOT SOLD SEPARATE, SPACER
    SN# 1A623371 & Up
  • 7
    26-862040 SEAL, Lip
    SEAL, Lip
  • 8
    862039 TOLERANCE RING
    SN# 1A623370 & Below
    TOLERANCE RING
    SN# 1A623370 & Below
  • 9
    NSS NOT SOLD SEPARATE, SNAP RING
    SN# 1A623371 & Up
    NOT SOLD SEPARATE, SNAP RING
    SN# 1A623371 & Up
  • 10
    862776A01 COVER KIT, Impeller Housing
    (Without Air Fittings)
    COVER KIT, Impeller Housing
    (Without Air Fittings)
  • 11
    8M2014176 PLATE, Wear
    (Without Air Fittings)
    PLATE, Wear
    (Without Air Fittings)
  • 12
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 13
    862351T PULLEY
    PULLEY
  • 14
    16-863853 STUD
    STUD
  • 15
    11-82671112 NUT, (.375-16)
    NUT, (.375-16)
  • 16
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 17
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 18
    865143T01 BRACKET, Sea Water Pump
    BRACKET, Sea Water Pump
  • 19
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 20
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
