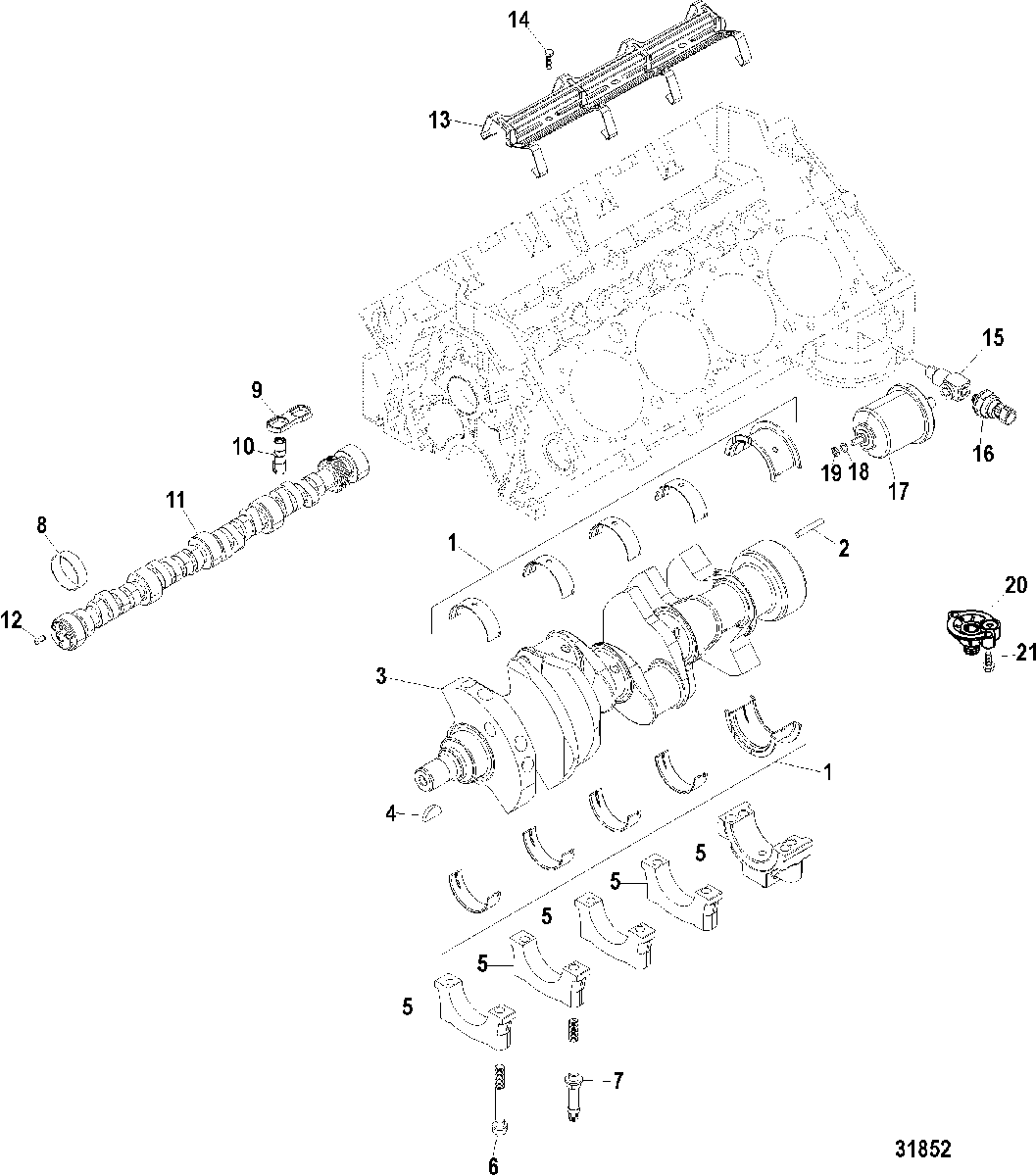

Cylinder Block, Camshaft and Crankshaft для Mercruiser - 383 STROKER SCORPION 1G300000 & Up

  • №
    Артикул
    Название
  • 1
    31-849396 BEARING SET, Standard - 5 Pair
    BEARING SET, Standard - 5 Pair
  • 1
    31-849395 BEARING SET, (.001 Oversize) 5 Pair
    BEARING SET, (.001 Oversize) 5 Pair
  • 1
    31-849394 BEARING SET, (.001 Undersize) 5 Pair
    BEARING SET, (.001 Undersize) 5 Pair
  • 2
    17-43504 PIN, Dowel
    PIN, Dowel
  • 3
    429-863323T1 CRANKSHAFT
    CRANKSHAFT
  • 4
    28-862594 KEY, Crankshaft, Crankshaft
    KEY, Crankshaft, Crankshaft
  • 5
    NSS NOT SOLD SEPARATE, Crankshaft Bearing Cap
    NOT SOLD SEPARATE, Crankshaft Bearing Cap
  • 6
    10-8625671 SCREW, Crankshaft Bearing Cap
    SCREW, Crankshaft Bearing Cap
  • 7
    16-850090 STUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing Cap
    STUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing Cap
  • 8
    23-85674 BEARING SET
    BEARING SET
  • 9
    17341T GUIDE, Lifter
    GUIDE, Lifter
  • 10
    17340T1 LIFTER, Roller
    LIFTER, Roller
  • 11
    431-879194T56 CAMSHAFT
    CAMSHAFT
  • 12
    17-843378 PIN, Dowel
    PIN, Dowel
  • 13
    811662 RETAINER, Lifter Guide
    RETAINER, Lifter Guide
  • 14
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 15
    22-864669 FITTING
    FITTING
  • 16
    881879T11 SENSOR, Pressure (0 - 100 PSI), Oil Pressure
    SENSOR, Pressure (0 - 100 PSI), Oil Pressure
  • 17
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 18
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 19
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 20
    71920 VALVE ASSEMBLY, Filter, Oil
    VALVE ASSEMBLY, Filter, Oil
  • 21
    10-54786 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • -
    879147R55 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
